An industrial junction box terminal block is a supported connection point within the finished electrical assembly. I would select it by the complete connection it must make. Start with circuit function and conductor material and construction. Then check electrical ratings, insulation conditions, mounting, accessories, environment and service access against the particular terminal’s data and equipment rules.
This applies to a new box, an equipment manufacturer’s terminal layout or a maintenance replacement. Similar-looking terminals can accept different conductor preparation, bridges or protective-conductor arrangements. Their installed sizes may differ too. A familiar shape or high headline rating does not resolve those mismatches.
Key takeaways
- Define circuit function and conductors before comparing clamp mechanisms.
- Current, voltage, conductor range and short-circuit ratings apply under stated conditions.
- Creepage is distance along an insulating surface; clearance is distance through air. Derive both from the applicable insulation-coordination method.
- Allow space for the complete row, accessories, tools and conductor bends.
- Reject a terminal if any required conductor, circuit, environment or service condition falls outside its documented use.
Start with the circuit function
Circuit function is the electrical job of each terminal position. The 2025 edition of IEC 60947-7-1 covers industrial terminal blocks and test-disconnect terminal blocks with screw-type or screwless clamps for copper conductors within its scope. A terminal block is not an improvised splice. I would specify its function before choosing the family.
A feed-through terminal joins conductors. A test-disconnect terminal adds a deliberate test or isolation function. A fused terminal adds a replaceable protective device and needs space to operate it. A protective-conductor terminal provides a different current path; a green feed-through block does not automatically provide it. PE means protective earth, while PEN combines protective earth and neutral functions. Neutral-disconnect and sensor terminals can have further requirements. A terminal unable to perform the required function is unsuitable even if its rating and rail fit look adequate.
| Required function | Selection question | Typical reason to reject a candidate |
|---|---|---|
| Feed-through | Does one documented clamping unit accept each specified conductor and duty? | The conductor count, construction, or preparation is outside the product data. |
| Distribution | Is the branching method a documented bridge, comb, or multi-level arrangement? | Two conductors are forced into a clamping point identified for one. |
| Test or disconnect | Can the circuit be isolated or measured in the required state? | The test point is inaccessible or the disconnect function is not defined for the circuit. |
| Fused | Does the exact fuse carrier suit the circuit, fuse system, heat, and replacement method? | A fuse holder is added without the required rating or service clearance. |
| Protective conductor | Does the terminal provide the required PE or PEN connection through its documented support path? | A feed-through terminal or rail contact is assumed to provide protective bonding. |
I would keep the terminal’s role separate from the rest of the electrical design. It does not choose branch-circuit protection or determine conductor ampacity, the permitted current-carrying capacity. It also does not establish enclosure protection or safe isolation by itself.
Define every conductor that will enter the block
Conductor compatibility is the first firm selection check. Record material, cross-sectional range and whether the conductor is solid, stranded or flexible. Add conductor count per clamp, insulation size and permitted end preparation. A ferrule is a sleeve fitted over conductor strands; a lug is an end fitting for the specified connection. I would check the terminal record for these or bare ends. A ferrule does not automatically expand the accepted range or permit multiple conductors.
For U.S. workplaces within scope, 29 CFR 1910.303(c)(2) requires a sound terminal connection without conductor damage. Terminals for multiple conductors or aluminum conductors must be identified for that use. I would reject an unsupported connection even if the wires physically fit.
Check these conductor attributes as a set:
- conductor material, including any plating or transition requirement.
- conductor construction and flexibility class.
- minimum and maximum accepted cross-section for that construction.
- one or multiple conductors in each clamping unit.
- permitted ferrule, lug, or bare-end preparation.
- strip length from the exact terminal instructions.
- insulation diameter and entry geometry where these constrain insertion.
- conductor approach and bend after it leaves the cable entry.
For example, suppose a control-box drawing specifies two stranded copper outputs at a distribution point. A candidate accepts either conductor’s cross-section but is identified for only one conductor per clamp. It does not suit that connection even if both wires enter the opening. I would use a documented bridge or distribution arrangement, or a terminal identified for the required count. Doubling the conductors under one unsupported clamp does not resolve the mismatch.
Match ratings to the actual operating condition
Compare ratings after the circuit and conductors are defined. Current and voltage limits can vary within a terminal family. Conductor size and type, ambient conditions and adjacent loaded poles can change the permitted values. Accessories, mounting direction and product rules matter too. I would use the data and derating method for the actual arrangement. Derating adjusts the permitted rating for stated conditions; a universal percentage margin cannot replace it.
Start with normal current and operating conditions, then add abnormal conditions required by the equipment rules. I would check current and voltage ratings, conductor temperature limits and the load pattern. Include adjacent loaded terminals, enclosure temperature, short-circuit or fault-current requirements and coordination with protective devices. For machine junction boxes, IEC 60204-1:2016 with Amendment 1:2021 addresses overcurrent protection, short-circuit current rating and protective bonding. The terminal must fit that wider equipment design.
Reject a headline-only comparison. “Higher current” is not enough. Ask which conductor, ambient condition, neighboring-pole pattern, accessory set, test basis, and mounting arrangement produced the stated value. If the candidate data and the intended box do not describe the same condition, the number is not yet comparable.
Voltage selection needs more than the service-voltage label. Identify alternating-current (AC) or direct-current (DC) operation, and frequency where relevant. I would also check rated insulation voltage, impulse conditions, circuit category and the equipment standard’s insulation assumptions. Even a familiar voltage marking can leave a mismatch if an accessory, partition, bridge or adjacent circuit changes the supported arrangement.
Build insulation coordination from system conditions
Creepage and clearance come from insulation coordination for the system. Insulation coordination matches insulation and spacing to the electrical stresses and environment. The consolidated IEC 60664-1:2020 with Amendment 1:2025 covers its principles, requirements and tests in low-voltage supply systems. Its public scope includes voltage, altitude, clearance, creepage and solid insulation. I would use the applicable method rather than assign one gap to all industrial boxes.
Use the equipment standard and terminal data to determine voltage stresses and overvoltage category, which describes the expected transient-voltage conditions. Establish pollution degree, the assumed contamination condition, and material group, which relates to insulation surface tracking. Include altitude, electric-field geometry and required circuit separation.
I would assess the complete row with partitions, end covers, bridges, fuse carriers, markers and neighbouring conductors installed. A distance from another voltage, pollution condition, altitude or product family cannot be copied without checking those differences.
Conductive dust, condensation, oil mist and chemical deposits affect the actual insulation environment. So does metal swarf, the chips left by machining. I would assess those exposures directly. The enclosure limits exposure only as documented for the complete assembly. An ingress-protection (IP) Code under IEC 60529 does not replace terminal insulation coordination or contamination control.
I would obtain current, voltage, spacing, strip length, torque, environmental limits and acceptance criteria from the equipment rules and product data. The figure groups these inputs into four linked checks.
Select the clamping unit by conductor and service task

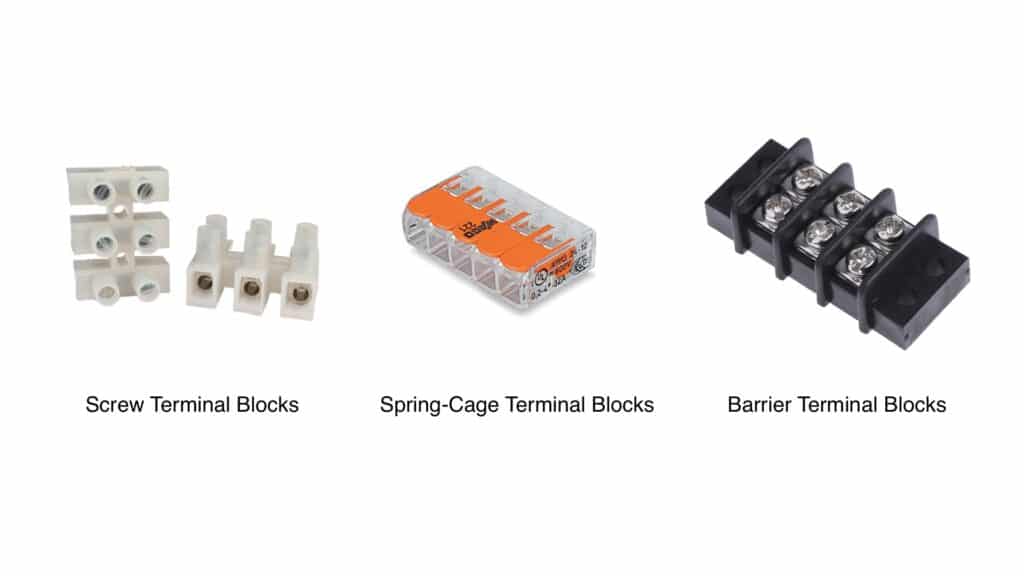

A clamping unit makes and maintains the conductor connection. Screw-type and screwless designs are different mechanisms; either can suit a documented conductor and service condition. I would compare connection method, end preparation, operating tool and verification method. Then check the relevant vibration or shock evidence and how a technician disconnects or tests the circuit.
| Decision point | Screw-type candidate | Screwless candidate |
|---|---|---|
| Conductor preparation | Verify bare end, ferrule, lug, strand class, and strip length in the product data. | Verify insertion method, actuation method, strand class, ferrule use, and strip length in the product data. |
| Installation control | Use the stated tool, tightening method, and value for the exact clamping point. | Use the specified actuation tool or lever and confirm full conductor insertion. |
| Service access | Reserve space for the driver and for viewing or checking the conductor position. | Reserve space to actuate the spring and remove the conductor without stressing neighbors. |
| Dynamic duty | Require evidence for the stated vibration, shock, and conductor conditions. | Require the same condition-specific evidence; spring force alone is not proof. |
| Maintenance | Follow the product and equipment instructions; do not invent a retightening interval. | Follow the product and equipment instructions; “maintenance-free” wording does not remove all equipment checks. |
I would compare candidate part numbers under the same conductor, electrical, environmental and mounting conditions. “Spring terminals always resist vibration better” and “screw terminals always carry more current” overlook the many constructions and ratings within each category.
Treat protective-conductor terminals as a separate function
A protective-conductor terminal must establish the intended protective path, not merely share the terminal row’s shape. IEC 60947-7-2:2009 addresses PE and PEN terminal blocks with screw-type or screwless clamping units within its scope. Its public description states that these devices form an electrical and mechanical connection between copper conductors and the fixing support.
I would verify the protective-conductor terminal and its compatible rail or support together. Check surface condition, end clamps and conductor range, plus any short-time withstand requirement in the equipment design. A painted rail, ordinary feed-through block, green marker or nearby metal enclosure does not establish the specified path. Select and verify a separate bonding jumper or grounding bar where the circuit design uses one.
Keep neutral and protective functions separate unless the governing design explicitly permits a PEN arrangement and all its conditions are met. I would compare terminal designation, conductor route, support contact and the complete protective-bonding design. Colour alone cannot establish function.

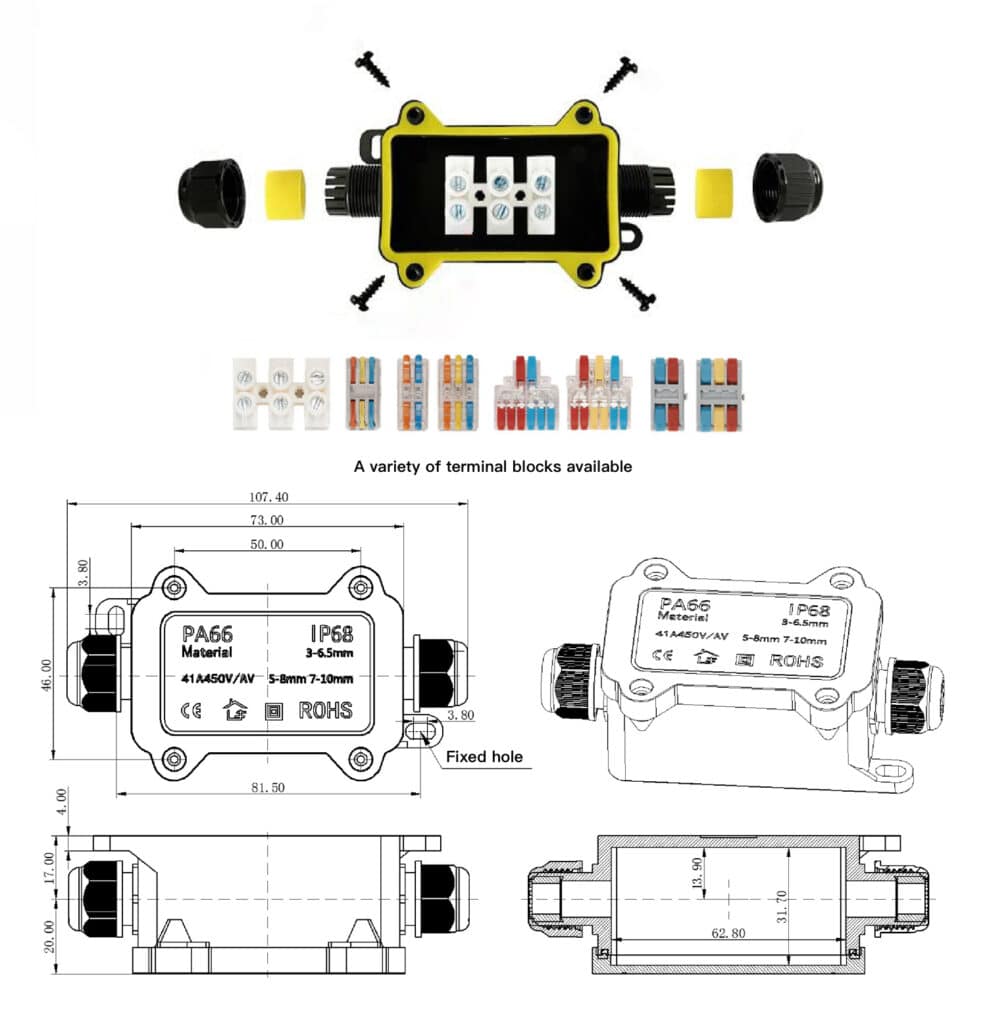

Fit the complete row inside the junction box
The installed terminal-row envelope includes the full row and the space needed to service it. Terminal pitch multiplied by position count does not describe it. I would add end covers, partitions, fuse or disconnect bodies and bridges. Include marker carriers, test plugs, end stops and rail supports, plus any required spare positions. Reserve tool space and room to remove a terminal or accessory.
I would place cable entries and the terminal row on the same layout. The cable must leave its gland straight where required, turn within its documented bend limit and approach the clamp from a permitted direction. Avoid sideways load at both the gland and clamp. Use the junction-box cutout and terminal-layout method to resolve these spaces before drilling.
I would use the terminal drawings and conductor-preparation instructions to build the real layout. Check electrical ratings and clearance rules, then accessory dimensions, cable bend limits and enclosure documentation.
Check closure with the box fully wired. Conductor loops, test plugs, bridges, markers and fuse handles may fit with the cover open yet collide when it closes. Tool paths can be obstructed too. I would keep conductors and loose parts away from the cover gasket and all sealing surfaces. Use the junction-box seal integrity method to trace openings and connections. The terminal block does not establish enclosure ingress protection.
Enclosure material and finish affect mounting, bonding, condensation, heat flow and contamination. I would assess the actual construction using the industrial junction-box material decision. A polycarbonate or metal shell alone does not establish the right environment for the terminals.
Use environment and service access to reject weak candidates
Environmental suitability means the terminal, accessories, conductor connection and finished box fit the stated conditions. I would define internal temperature and heat from loaded circuits, then condensation, conductive dust and chemical vapour or deposits. Add oil mist, vibration, shock, corrosion and expected maintenance states. Require evidence for those conditions. A material name or enclosure IP Code does not establish terminal performance.
If the box needs a National Electrical Manufacturers Association (NEMA) Type, IP Code or both, keep the classification tied to the complete installed enclosure. The NEMA and IP junction-box selection route identifies the required enclosure claim. Terminal spacing, cover closure, cable entries and unused openings must preserve the supported build. Evidence for one component does not qualify all the other connections inside.
I would check service access in the state the technician will actually encounter. Can the tool reach the clamp without touching adjacent live parts? Can a fuse or disconnect move fully, and can test points be seen and reached? Can a conductor be removed without pulling sideways on the gland or dismantling an unrelated circuit? Use the layout to answer these questions rather than assign a generic clearance allowance.
Identification must stay readable after wiring. I would match markers to the circuit design and preserve required safety and conductor-function identification. For U.S. equipment within OSHA’s scope, 29 CFR 1910.303 also requires necessary voltage, current and other ratings to be marked. Markings must withstand the expected environment. A handwritten label that disappears there does not satisfy that requirement.
Compare candidates with a terminal-row example
I would reject incompatible candidates before scoring preferences. Consider an equipment manufacturer’s box needing feed-through points for stranded copper, a protective-conductor group, removable test access on selected circuits and a distribution bridge. It also has a shallow cover and bottom cable entries.
| Required fit | Candidate A | Candidate B | Decision for this box |
|---|---|---|---|
| Conductor and preparation | Accepts the specified stranded copper conductor and documented ferrule preparation. | Matching current and voltage ratings do not establish conductor compatibility. | Check B's exact clamping-unit data before treating it as an alternative. |
| Test access and bridge | Has the required test-disconnect block and a matching bridge in the same family. | Its bridge does not fit the test-disconnect version. | Reject B for the required distribution row. |
| Protective conductor | Has the required PE terminal and support arrangement. | Its PE block needs a different support arrangement. | Reject B for the present rail and support design. |
| Closed-box access | The assembled row and operating tools fit beneath the shallow cover. | Fit is not established by the shared headline ratings. | Verify the complete layout before accepting any substitute. |
Candidate B is not equivalent in this layout even if its feed-through body fits the rail. I would recheck Candidate A too if a replacement changes conductor construction or preparation. Its earlier acceptance does not automatically cover the change. Record the first failed requirement beside each rejected part number so the same mismatch is visible in a later substitution review.
Conclusion
The right terminal block matches the circuit, conductor, electrical and insulation conditions, protective path, accessories, environment and service space. I would establish those inputs before choosing screw or spring technology. A headline rating cannot compensate for an unsupported conductor, bridge, PE path or installed size.
Lay out the complete row and cable route before finalizing part numbers. I would reject the first unmet requirement, then compare suitable candidates on access and evidence for the application. This gives a defensible connection without inventing universal current margins, spacing, torque, strip length or maintenance intervals.
Frequently asked questions
Is a spring terminal always better than a screw terminal in vibration?
No. Clamping method alone does not prove suitability for a vibration condition. Compare exact candidates using the specified conductor, preparation, mounting, environmental condition, and applicable vibration or shock evidence. Either technology can be rejected when its documented conditions do not match the installed junction box.
Can two conductors share one terminal point?
Only when the exact terminal is identified for that conductor count, material, construction, size, and preparation. Physical fit is not enough. If the clamping unit is intended for one conductor, use a documented bridge, distribution block, or another approved circuit arrangement instead of forcing two conductors into it.
How should I choose the terminal current rating?
Start with circuit current and duty, then use the exact product data for the specified conductor, ambient condition, neighboring loaded poles, mounting, and accessories. Apply the equipment standard’s protection and fault-current requirements. Do not multiply load current by a universal margin and treat the result as a terminal selection.
Does a junction box IP rating protect any terminal block inside it?
No. An IP Code describes protection provided by the documented enclosure configuration under IEC 60529. It does not prove terminal electrical suitability, chemical compatibility, condensation control, or internal clearances. Preserve the enclosure configuration and evaluate the terminal and internal environment separately.
Can a feed-through terminal be used as a protective-conductor terminal?
Not merely because it fits the same rail or carries a green marker. Use a protective-conductor terminal and support arrangement documented for the required PE or PEN function. Confirm the conductor, rail contact, surface condition, protective path, and equipment requirements for the exact installation.
Sources and technical references
- IEC - IEC 60947-7-1:2025, Terminal blocks for copper conductors, accessed 2026-09-08.
- IEC - IEC 60947-7-2:2009, Protective conductor terminal blocks for copper conductors, accessed 2026-09-08.
- IEC - IEC 60664-1:2020 with Amendment 1:2025, Insulation coordination, accessed 2026-09-08.
- IEC - IEC 60204-1:2016 with Amendment 1:2021, Electrical equipment of machines, accessed 2026-09-08.
- IEC - IEC 60529, Degrees of protection provided by enclosures, accessed 2026-09-08.
- U.S. Government Publishing Office - 29 CFR 1910.303, General requirements, accessed 2026-09-08.
