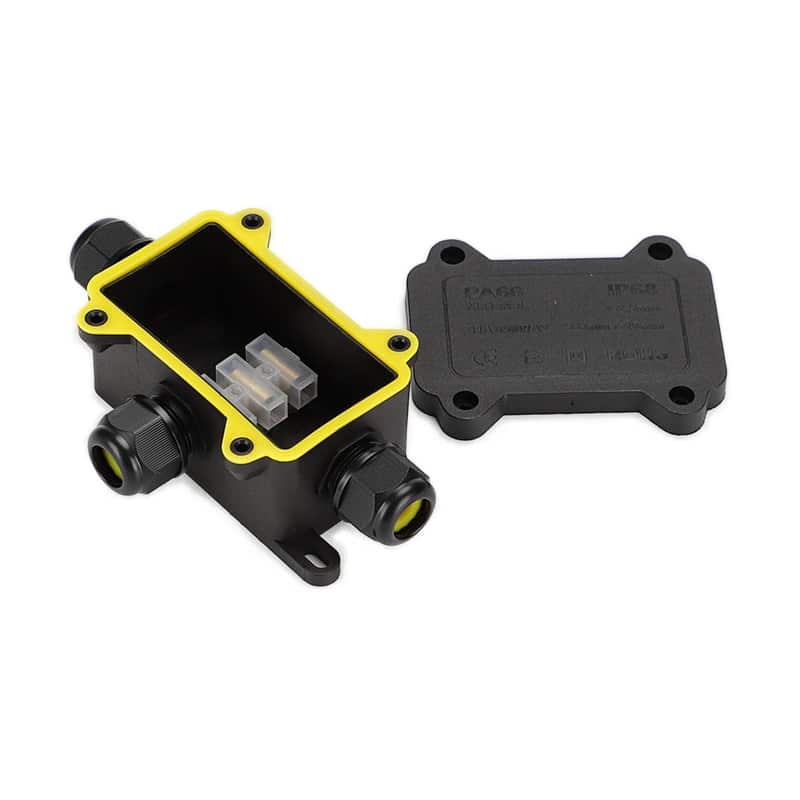

IP68 Waterproof Junction Box, Mini Electrical Enclosure F1 Series
IP68 Waterproof Junction Box, Mini Electrical Enclosure F1-4T

When Marcus, the maintenance supervisor at a petrochemical facility in Houston, discovered water damage in 15 junction boxes after a heavy storm, he realized that “waterproof” doesn’t always mean water-tight. The $50,000 repair bill and 48-hour production shutdown could have been prevented with proper seal integrity procedures.

Proper seal integrity in junction box installations requires systematic attention to gasket selection, cable gland sealing, torque specifications, and environmental protection to maintain IP ratings1 throughout the equipment lifecycle. You must verify every sealing point before energizing the system and establish regular inspection protocols to prevent costly failures.

At Bepto Connector, I’ve witnessed countless installations where premium junction boxes failed due to poor sealing practices, while properly sealed standard enclosures performed flawlessly for decades. The difference isn’t in the box – it’s in understanding and implementing proper sealing techniques that protect your investment and ensure reliable operation.

Table of Contents

What Are the Critical Sealing Points in Junction Box Installations?

Every junction box installation has multiple potential failure points where water, dust, and contaminants can enter. Understanding these critical sealing locations helps you prioritize your efforts and prevent the most common failure modes.

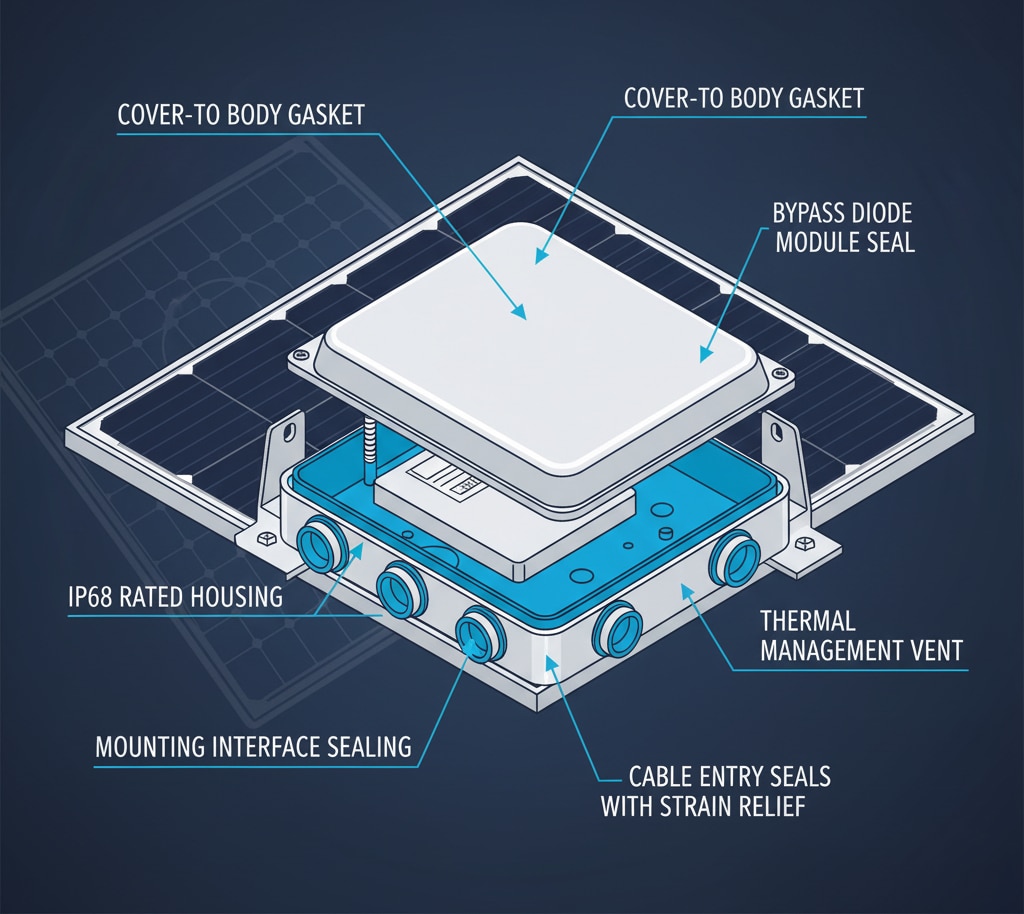

A detailed exploded view diagram of a solar panel junction box, highlighting all critical sealing points including the cover-to-body gasket, cable entry seals with strain relief, and mounting interface sealing, showing how they protect internal components from environmental factors.
Critical Junction Box Sealing Points

Primary Sealing Locations

Cover-to-Body Interface:
This is your first line of defense and often the most critical sealing point:

  • Gasket groove design: Must provide proper compression without over-compression
  • Surface finish requirements: Ra 3.2μm maximum for effective sealing
  • Fastener pattern: Even pressure distribution prevents seal distortion
  • Material compatibility: Gasket material must match environmental conditions

Cable Entry Points:
Cable glands represent the highest risk area for seal failure:

  • Thread engagement: Minimum 5 full threads for proper sealing
  • Compression sealing: Dual sealing on cable jacket and individual conductors
  • Strain relief integration: Prevents cable movement that compromises seals
  • Environmental protection: Chemical resistance and temperature rating

Mounting Interface:
Often overlooked but critical for overall system integrity:

  • Mounting surface preparation: Flat, clean surfaces prevent gasket damage
  • Drainage considerations: Proper slope prevents water accumulation
  • Thermal expansion: Account for differential expansion between materials
  • Vibration isolation: Prevents seal fatigue from mechanical stress

Environmental Sealing Challenges

Temperature Cycling Effects:
Thermal expansion and contraction create significant sealing challenges:

  • Material selection: Choose seals with stable properties across temperature range
  • Compression maintenance: Seals must maintain compression through thermal cycles
  • Differential expansion: Account for different expansion rates of materials
  • Seasonal variations: Consider annual temperature extremes in your location

Chemical Exposure Considerations:
Industrial environments expose seals to aggressive chemicals:

  • Cleaning agents: High-pressure washdown chemicals attack seal materials
  • Process chemicals: Vapors and spills can degrade sealing compounds
  • UV exposure: Outdoor installations require UV-resistant materials
  • Ozone resistance2: Critical for outdoor and high-voltage applications

Hassan, who manages a chemical processing plant in Saudi Arabia, learned this lesson when cleaning solvents degraded his NBR gaskets within six months. Switching to our FKM (Viton) seals eliminated premature failures and reduced maintenance costs by 70% over three years of operation.

How Do You Select and Install the Right Gaskets and Seals?

Gasket selection directly impacts long-term seal integrity and system reliability. The wrong material or improper installation can cause immediate failure or gradual degradation that leads to unexpected downtime.

EPDM vs. Silicone Seals
EPDM vs. Silicone Seals

Gasket Material Selection Guide

EPDM (Ethylene Propylene Diene Monomer):
Our most popular choice for general industrial applications:

  • Temperature range: -40°C to +120°C continuous operation
  • Chemical resistance: Excellent against ozone, weather, steam, polar solvents
  • Applications: Outdoor enclosures, marine environments, food processing
  • Limitations: Poor resistance to oils, fuels, aromatic hydrocarbons
  • Cost factor: Moderate, excellent value for most applications

NBR (Nitrile Butadiene Rubber):
Traditional choice for oil and fuel environments:

  • Temperature range: -30°C to +100°C standard grades
  • Chemical resistance: Excellent against oils, fuels, hydraulic fluids
  • Applications: Automotive, machinery, petroleum industry
  • Limitations: Poor ozone resistance, limited outdoor use
  • Cost factor: Low cost, widely available

FKM (Fluorocarbon – Viton)3:
Premium choice for extreme chemical and temperature resistance:

  • Temperature range: -20°C to +200°C continuous operation
  • Chemical resistance: Excellent against most chemicals, acids, solvents
  • Applications: Chemical processing, aerospace, high-temperature environments
  • Limitations: Higher cost, poor steam resistance
  • Cost factor: High, but justified for demanding applications

Silicone:
Specialized applications requiring extreme temperature range:

  • Temperature range: -60°C to +200°C continuous operation
  • Chemical resistance: Good general resistance, excellent ozone resistance
  • Applications: Food processing, medical equipment, extreme temperatures
  • Limitations: Poor mechanical properties, limited chemical resistance
  • Cost factor: Moderate to high depending on grade

Installation Best Practices

Surface Preparation:
Proper surface preparation is critical for seal success:

  • Cleaning requirements: Remove all oils, debris, and old gasket material
  • Surface inspection: Check for scratches, nicks, or corrosion
  • Flatness verification: Use straight edge to verify sealing surface flatness
  • Drying procedures: Ensure complete moisture removal before installation

Gasket Positioning and Compression:

  • Groove fit: Gasket should fit snugly in groove without stretching
  • Compression ratio: Target 15-25% compression for optimal sealing
  • Even compression: Tighten fasteners in star pattern to specified torque
  • Verification: Visual inspection for proper gasket positioning

Torque Specifications:
Critical for maintaining proper seal compression:

  • Manufacturer specifications: Always follow published torque values
  • Fastener lubrication: Use appropriate thread lubricant as specified
  • Sequence: Follow proper tightening sequence for even pressure distribution
  • Verification: Re-check torque after initial settling period

What Cable Gland Sealing Techniques Ensure Long-Term Reliability?

Cable gland installation represents the most complex sealing challenge in junction box systems. At Bepto, we’ve developed proven techniques that ensure reliable sealing across all environmental conditions.

Cable Preparation Requirements

Cable Jacket Inspection:
Before installation, thoroughly inspect each cable:

  • Jacket integrity: Look for cuts, abrasions, or chemical damage
  • Diameter consistency: Measure at multiple points along cable length
  • Flexibility: Verify cable hasn’t become brittle or hardened
  • Cleanliness: Remove all pulling lubricant and contamination

Proper Cable Stripping:
Cable preparation directly affects sealing performance:

  • Strip length: Follow gland manufacturer specifications exactly
  • Clean cuts: Use proper cable stripping tools, avoid nicks
  • Conductor preparation: Ensure no loose strands that could compromise sealing
  • Jacket smoothness: Sand any rough areas that could damage seals

Gland Selection and Sizing

Size Selection Criteria:
Proper sizing is critical for effective sealing:

  • Cable diameter measurement: Measure actual cable, don’t rely on specifications
  • Temperature considerations: Account for jacket expansion at operating temperature
  • Tolerance allowance: Select gland size with appropriate cable range
  • Future flexibility: Consider potential cable replacement with different sizes

Thread Type Considerations:
Choose the right thread type for your application:

  • Metric threads: Precise sizing, excellent for high IP ratings
  • NPT threads4: Self-sealing threads, common in North American installations
  • PG threads: Legacy standard, being phased out but still required for some equipment

Installation Techniques

Thread Preparation:

  • NPT threads: Apply appropriate pipe thread sealant
  • Metric threads: Verify O-ring placement and condition
  • Thread engagement: Minimum 5 full threads for proper sealing
  • Torque application: Use proper torque values to avoid over-tightening

Seal Assembly:

  • Component order: Install sealing components in correct sequence
  • Compression verification: Ensure proper seal compression without over-compression
  • Cable positioning: Center cable in gland for even seal contact
  • Strain relief: Verify adequate strain relief engagement

David, a project manager at an automotive plant in Michigan, initially struggled with cable gland failures until implementing our systematic installation procedures. His team now achieves 99.8% first-time success rates and hasn’t experienced a single seal failure in over 18 months of operation. 😉

How Do You Test and Verify Seal Integrity After Installation?

Testing seal integrity before system energization prevents costly failures and ensures long-term reliability. Proper testing procedures verify that your installation meets design specifications and will perform as expected.

Visual Inspection Procedures

Systematic Visual Inspection:
Start with thorough visual verification of all sealing points:

  • Gasket positioning: Verify proper gasket placement and compression
  • Cable gland alignment: Check for proper cable centering and seal contact
  • Surface contact: Ensure complete contact between sealing surfaces
  • Fastener torque: Verify all fasteners are properly tightened

Documentation Requirements:

  • Inspection checklist: Use standardized checklist for consistency
  • Photo documentation: Document critical sealing points for future reference
  • Torque records: Record actual torque values applied
  • Material traceability: Document gasket and seal materials used

Pressure Testing Methods

Low-Pressure Air Testing:
Safe and effective method for initial seal verification:

  • Test pressure: 0.1-0.2 bar (1.5-3 psi) maximum for safety
  • Pressure source: Regulated compressed air with pressure gauge
  • Leak detection: Use soap solution to identify any air leaks
  • Duration: Maintain pressure for minimum 15 minutes

Water Spray Testing:
Simulates actual environmental conditions:

  • Spray pattern: Use fine mist spray to simulate rain conditions
  • Pressure level: Low pressure to avoid forcing water past properly sealed joints
  • Duration: 30-minute minimum exposure time
  • Internal inspection: Check for any water ingress after test

Electrical Testing

Insulation Resistance Testing5:
Verify electrical integrity after sealing:

  • Test voltage: 500V DC for low voltage systems, 1000V for higher voltages
  • Minimum resistance: 10 MΩ minimum for most applications
  • Test duration: 1-minute minimum test duration
  • Documentation: Record all test results for future reference

Continuity Verification:
Ensure proper electrical connections:

  • Circuit continuity: Verify all intended connections are complete
  • Ground continuity: Verify proper grounding of enclosure and components
  • Isolation verification: Confirm proper isolation between circuits
  • Polarity checking: Verify correct polarity for DC circuits

What Maintenance Practices Preserve Seal Performance Over Time?

Regular maintenance is essential for preserving seal integrity throughout the equipment lifecycle. Proactive maintenance prevents failures and extends seal life significantly beyond manufacturer specifications.

Inspection Schedule Development

Risk-Based Inspection Frequency:
Tailor inspection schedules to your specific environment:

  • High-risk environments: Monthly visual inspection, quarterly detailed inspection
  • Standard industrial: Quarterly visual inspection, annual detailed inspection
  • Benign environments: Semi-annual visual inspection, biennial detailed inspection
  • Critical applications: Continuous monitoring with periodic manual verification

Environmental Factors Affecting Schedule:

  • Chemical exposure: Increases inspection frequency requirements
  • Temperature cycling: More frequent inspection in extreme temperature environments
  • Vibration levels: High vibration requires more frequent inspection
  • Weather exposure: Outdoor installations need more frequent attention

Preventive Maintenance Procedures

Seal Replacement Scheduling:
Proactive seal replacement prevents unexpected failures:

  • Standard environments: Replace seals every 5-7 years
  • Harsh environments: Replace seals every 2-3 years
  • Critical applications: Replace seals every 3-5 years regardless of condition
  • Condition-based: Replace when inspection reveals degradation

Cleaning and Protection:
Regular cleaning extends seal life:

  • Approved cleaners: Use only seal-compatible cleaning agents
  • Gentle cleaning: Avoid aggressive scrubbing that damages seals
  • Complete drying: Ensure complete moisture removal after cleaning
  • Protective treatments: Apply UV protectants for outdoor installations

Troubleshooting Common Issues

Water Ingress Problems:

  • Symptoms: Moisture inside enclosure, corrosion, electrical faults
  • Common causes: Damaged gaskets, improper torque, thermal cycling
  • Solutions: Replace gaskets, verify torque specifications, upgrade materials

Seal Degradation:

  • Symptoms: Cracking, hardening, swelling of seal materials
  • Common causes: Chemical attack, UV exposure, temperature extremes
  • Solutions: Material upgrade, environmental protection, replacement schedule adjustment

Marcus from Houston implemented our comprehensive maintenance program and hasn’t experienced a single seal failure in three years. His proactive approach reduced emergency repairs by 90% and improved overall system reliability significantly.

Conclusion

Ensuring proper seal integrity in junction box installations requires systematic attention to material selection, installation procedures, testing protocols, and maintenance practices. The investment in proper sealing techniques pays dividends through improved reliability, reduced maintenance costs, and extended equipment life. At Bepto Connector, we provide complete sealing solutions with the technical expertise to ensure your installations perform reliably for decades. Remember, seal integrity isn’t just about the initial installation – it’s about maintaining that integrity throughout the entire equipment lifecycle through proper maintenance and proactive replacement programs.

FAQs About Junction Box Seal Integrity

Q: How often should I replace junction box gaskets?

A: Replace gaskets every 5-7 years in standard environments, or every 2-3 years in harsh chemical or extreme temperature conditions. Monitor gasket condition during regular inspections and replace immediately if cracking, hardening, or swelling is observed.

Q: What’s the most common cause of junction box seal failure?

A: Improper cable gland installation accounts for 60% of seal failures. This includes incorrect sizing, inadequate thread engagement, improper torque application, and poor cable preparation. Following manufacturer installation procedures prevents most failures.

Q: Can I use any gasket material for my junction box?

A: No, gasket material must match your specific environmental conditions. EPDM works for most outdoor applications, NBR for oil environments, and FKM (Viton) for chemical processing. Using the wrong material leads to rapid degradation and seal failure.

Q: How do I know if my junction box seals are failing?

A: Look for moisture inside the enclosure, corrosion on terminals, visible gasket cracking or swelling, and electrical faults. Regular visual inspections and annual pressure testing help identify seal problems before they cause equipment damage.

Q: What torque should I use for junction box cover screws?

A: Always follow the manufacturer’s torque specifications, typically 2-8 Nm depending on enclosure size and material. Over-tightening damages gaskets and threads, while under-tightening allows leakage. Use a calibrated torque wrench for consistent results.

  1. Review the official IEC 60529 standard for a detailed explanation of Ingress Protection (IP) codes and what each digit signifies.

  2. Understand the chemical process of ozone cracking in elastomers and why resistance is critical for outdoor applications.

  3. Explore the detailed chemical resistance, temperature ratings, and mechanical properties of FKM elastomers.

  4. Learn about the American National Standard Pipe Thread (NPT) standard, including its taper design and sealing mechanism.

  5. Discover the principles and step-by-step procedures for conducting an insulation resistance (megger) test to verify electrical safety.

Samuel bepto

Hello, I’m Samuel, a senior expert with 15 years of experience in the cable gland industry. At Bepto, I focus on delivering high-quality, tailor-made cable gland solutions for our clients. My expertise covers industrial cable management, cable gland system design and integration, as well as key component application and optimization. If you have any questions or would like to discuss your project needs, please feel free to contact me at [email protected].

Table of Contents
Form Contact
Bepto Logo

Get More Benefits Since Submit The Info Form

Form Contact
