What Are Bypass Diodes and Why Do Solar Panels Need Them?
Bypass diodes are semiconductor devices installed in solar junction boxes that provide alternative current paths when solar cells become shaded or damaged, preventing hot spots and maintaining power output from unaffected portions of the panel. Without bypass diodes, a single shaded cell could reduce the entire panel’s output to nearly zero.

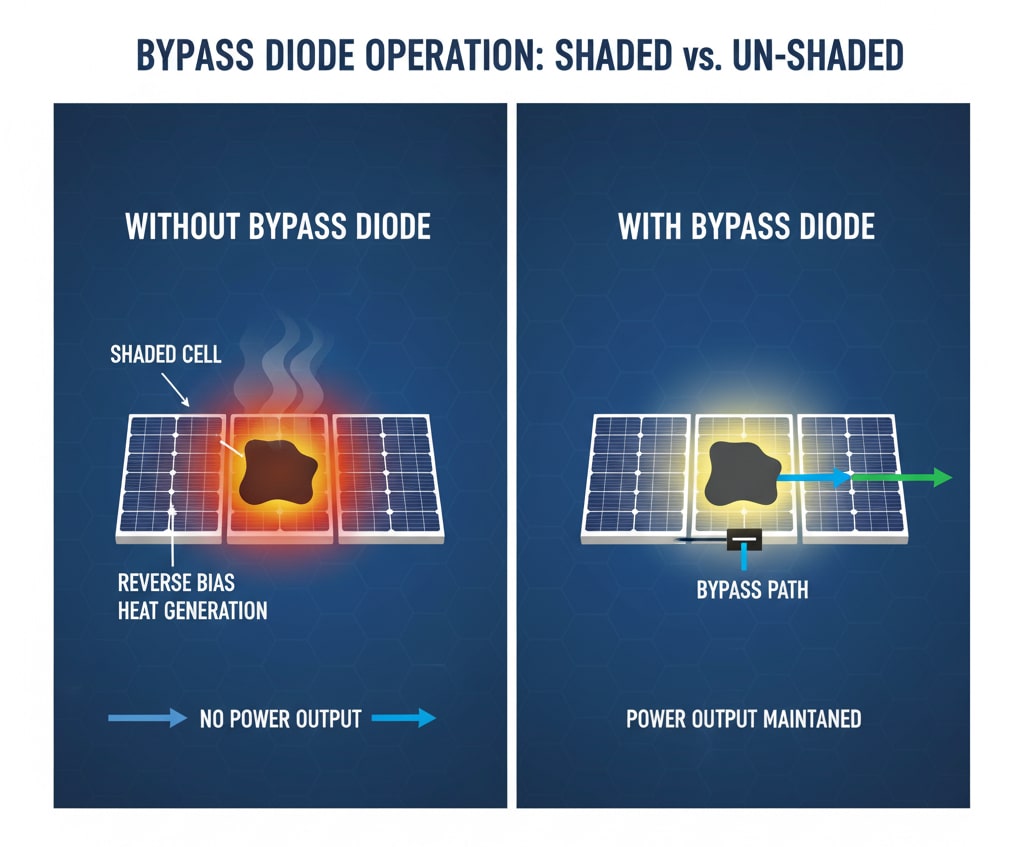

The Physics Behind Bypass Diode Operation
Hot Spot Prevention:
When solar cells are partially shaded, they can become reverse-biased2 and act as loads rather than generators:
- Reverse current flow: Unshaded cells force current through shaded cells in reverse direction
- Heat generation: Reverse-biased cells dissipate power as heat, potentially reaching 150°C+
- Cell damage: Excessive heat can crack cells, delaminate encapsulant, or burn junction box components
- Safety hazards: Hot spots can ignite surrounding materials or cause electrical fires
Current Path Management:
Bypass diodes create intelligent current routing:
- Forward bias activation: Diodes conduct when cell string voltage drops below diode forward voltage
- Alternative pathways: Current bypasses problematic cell strings and flows through healthy strings
- Voltage optimization: Maintains higher overall panel voltage during partial shading
- Power maximization: Allows unshaded portions to operate at maximum power point3
Types of Shading Scenarios
Partial Shading Conditions:
Real-world installations face various shading challenges:
- Structural shading: Buildings, trees, or equipment casting shadows
- Soiling effects: Bird droppings, leaves, or dust accumulation
- Snow coverage: Partial snow coverage during winter months
- Cloud shadows: Moving cloud shadows creating dynamic shading patterns
- Installation defects: Poor cell connections or manufacturing defects
Hassan, who manages a 5MW solar installation in Dubai, initially experienced 25% power losses during morning hours due to building shadows. After upgrading to our high-performance junction boxes with premium Schottky bypass diodes, his system now maintains 95% efficiency even during partial shading conditions. 😉
How Do You Select the Right Bypass Diodes for Your Application?
Bypass diode selection depends on current rating, forward voltage drop, reverse leakage current, and thermal characteristics that match your specific solar panel configuration and environmental conditions. The wrong diode choice can lead to premature failure or suboptimal performance.
Current Rating Considerations
Maximum Current Capacity:
Diode current rating must exceed panel short-circuit current:
- Safety margin: Select diodes rated 25-50% above panel Isc
- Standard ratings: 10A, 15A, 20A, and 30A most common for residential/commercial panels
- Temperature derating4: Current capacity decreases with temperature (typically 0.5%/°C)
- Surge current handling: Must withstand lightning-induced current surges
- Continuous operation: Rated for 25+ year continuous operation
Panel Configuration Impact:
Different panel designs require different current ratings:
- 60-cell panels: Typically require 10-15A bypass diodes
- 72-cell panels: Usually need 15-20A bypass diodes
- High-efficiency panels: May require higher current ratings due to increased Isc
- Bifacial panels: Additional current from rear-side generation affects diode selection
Voltage Specifications
Forward Voltage Drop:
Lower forward voltage improves efficiency:
- Schottky diodes: 0.3-0.5V forward drop, preferred for solar applications
- Standard silicon diodes: 0.7V forward drop, less efficient but more robust
- Power loss calculation: Forward drop × bypass current = power dissipated as heat
- Efficiency impact: Lower Vf reduces power losses during bypass operation
Reverse Breakdown Voltage:
Must withstand maximum system voltages:
- Safety margin: Minimum 2x maximum system voltage
- Standard ratings: 40V, 60V, 100V, and 150V available
- Temperature coefficient: Breakdown voltage varies with temperature
- Lightning protection: Must survive lightning-induced voltage spikes
Thermal Management Requirements
Junction Temperature Limits:
Thermal design determines diode lifespan:
- Maximum junction temperature: Typically 150-175°C for solar-grade diodes
- Thermal resistance: Junction-to-case and case-to-ambient thermal resistance
- Heat sink requirements: Adequate thermal path to junction box housing
- Ambient temperature: Account for high ambient temperatures in hot climates
Thermal Interface Design:
- Thermal pads: Ensure good thermal contact between diode and heat sink
- Heat sink sizing: Adequate surface area for heat dissipation
- Airflow considerations: Natural or forced convection cooling
- Thermal cycling: Withstand daily temperature cycles for 25+ years
What Are the Essential Testing Methods for Bypass Diodes?
Comprehensive bypass diode testing includes forward voltage testing, reverse leakage measurement, thermal imaging, and in-situ performance verification to ensure optimal operation and early fault detection. Regular testing prevents costly system failures and maintains warranty compliance.
Forward Voltage Testing
Standard Forward Voltage Test:
Basic functionality verification:
- Test current: Use rated forward current for accurate measurement
- Expected values: Schottky diodes: 0.3-0.5V, Silicon diodes: 0.6-0.8V
- Temperature compensation: Adjust readings for ambient temperature
- Pass/fail criteria: ±10% of nominal specification
- Documentation: Record all measurements for trend analysis
Dynamic Forward Testing:
Advanced testing under varying conditions:
- Current sweep testing: Measure Vf across current range
- Temperature testing: Verify performance at different temperatures
- Aging effects: Compare new vs. aged diode characteristics
- Batch testing: Statistical analysis of diode populations
Reverse Leakage Testing
Reverse Current Measurement:
Critical for long-term reliability:
- Test voltage: Apply 80% of rated reverse voltage
- Leakage limits: Typically <10μA at rated voltage and 25°C
- Temperature effects: Leakage doubles approximately every 10°C
- Failure indicators: Excessive leakage indicates impending failure
- Safety precautions: Use appropriate PPE when testing high voltages
Thermal Performance Testing
Thermal Imaging Analysis:
Identify thermal issues before failure:
- Baseline measurements: Establish thermal signatures for healthy diodes
- Hot spot detection: Identify diodes operating above normal temperatures
- Thermal distribution: Verify even heat distribution across junction box
- Environmental factors: Account for ambient temperature and solar irradiance
- Trending analysis: Track thermal performance over time
Junction Temperature Estimation:
- Thermal modeling: Calculate junction temperature from case temperature
- Thermal resistance values: Use manufacturer-specified thermal resistance
- Power dissipation: Calculate power based on forward current and voltage
- Safety margins: Ensure operation well below maximum junction temperature
In-Situ Performance Testing
Panel-Level Testing:
Verify bypass diode operation in actual installation:
- Partial shading simulation: Use opaque covers to simulate shading
- I-V curve analysis5: Compare curves with and without bypass diode operation
- Power output measurement: Quantify power improvement from bypass diodes
- String current monitoring: Verify current redistribution during shading
- Long-term monitoring: Track performance over seasonal variations
How Do You Troubleshoot Common Bypass Diode Problems?
Common bypass diode failures include open circuits, short circuits, high forward voltage drop, and excessive reverse leakage, each requiring specific diagnostic approaches and corrective actions. Early detection and proper troubleshooting prevent minor issues from becoming major system failures.
Open Circuit Failures
Symptoms and Detection:
- Power loss: Significant power reduction during partial shading
- Hot spot formation: Thermal imaging shows excessive cell temperatures
- Voltage measurements: No forward conduction when expected
- Visual inspection: Burned or cracked diode packages
Root Cause Analysis:
- Overcurrent conditions: Current exceeded diode rating
- Thermal stress: Excessive junction temperature caused failure
- Manufacturing defects: Poor wire bonding or die attachment
- Environmental factors: Moisture ingress or corrosive atmospheres
Short Circuit Failures
Identification Methods:
- Continuity testing: Diode shows low resistance in both directions
- Panel performance: Reduced open-circuit voltage
- Current measurements: Abnormal current distribution
- Thermal signatures: Cool spots where diodes should be warm
Failure Mechanisms:
- Metallization migration: Metal migration causing internal shorts
- Die cracking: Physical damage to semiconductor junction
- Wire bond failure: Internal connection failures
- Package degradation: Moisture or contamination ingress
High Forward Voltage Issues
Performance Impact:
- Increased power losses: Higher Vf means more power dissipated as heat
- Reduced efficiency: Lower overall system efficiency during bypass operation
- Thermal stress: Increased heat generation accelerates aging
- Cascading failures: High temperatures affect adjacent components
Diagnostic Procedures:
- Comparative testing: Compare suspect diodes to known good units
- Temperature correlation: Verify temperature coefficient is normal
- Load testing: Test under actual operating conditions
- Trend analysis: Track Vf changes over time
What Are the Best Practices for Long-Term Reliability?
Long-term bypass diode reliability requires proper selection, quality installation, regular monitoring, and proactive maintenance to achieve the 25+ year lifespan expected from solar installations. Implementing best practices from day one prevents costly failures and ensures optimal system performance.
Design and Selection Best Practices
Conservative Rating Approach:
- Current derating: Select diodes rated 150% of maximum expected current
- Voltage margins: Use diodes with reverse voltage ratings 200% of system voltage
- Temperature considerations: Account for worst-case ambient conditions
- Quality standards: Specify automotive or military-grade components for critical applications
Thermal Design Optimization:
- Heat sink sizing: Adequate thermal mass for heat dissipation
- Thermal interface materials: High-quality thermal pads or compounds
- Ventilation design: Natural convection paths in junction box design
- Material selection: Low thermal resistance materials for heat paths
Installation Quality Control
Junction Box Assembly:
- Torque specifications: Proper torque for all electrical connections
- Thermal interface: Ensure good thermal contact between diode and heat sink
- Seal integrity: Verify IP65/IP67 rating after assembly
- Quality inspection: 100% visual and electrical inspection
Environmental Protection:
- Moisture barriers: Effective sealing against moisture ingress
- UV protection: UV-stable materials for long-term outdoor exposure
- Corrosion prevention: Proper material selection and coatings
- Mechanical protection: Adequate protection against physical damage
Monitoring and Maintenance Programs
Performance Monitoring:
- String current monitoring: Continuous monitoring of string currents
- Temperature monitoring: Junction box temperature tracking
- Power output analysis: Regular analysis of power production data
- Alarm systems: Automated alerts for performance anomalies
Preventive Maintenance:
- Annual inspections: Visual and thermal inspection of all junction boxes
- Electrical testing: Periodic bypass diode testing
- Cleaning programs: Regular cleaning to prevent soiling-related shading
- Documentation: Comprehensive maintenance records and trend analysis
Maria, overseeing a 10MW solar farm in California, implemented our comprehensive bypass diode monitoring system and reduced unplanned maintenance by 70% while improving overall system availability to 99.2%. Her proactive approach to diode health monitoring has become the industry standard for large-scale solar operations.
Conclusion
Selecting and testing bypass diodes for solar junction boxes is critical for maximizing energy harvest and preventing costly hot spot damage. The key is understanding your specific application requirements, choosing appropriately rated components, implementing comprehensive testing protocols, and maintaining proactive monitoring systems. At Bepto Connector, we provide high-quality solar junction boxes with premium bypass diodes engineered for 25+ year reliability in the harshest environments. Remember, investing in quality bypass diodes and proper testing procedures pays dividends through improved system performance, reduced maintenance costs, and extended equipment life.
FAQs About Solar Junction Box Bypass Diodes
Q: How many bypass diodes does a solar panel need?
A: Most solar panels use 3 bypass diodes for 60-cell panels and 3-4 diodes for 72-cell panels. Each diode typically protects 20-24 cells, providing optimal balance between cost and shading protection performance.
Q: What happens when a bypass diode fails?
A: A failed bypass diode can cause hot spots during shading, leading to cell damage, reduced power output, and potential fire hazards. Open diode failures are more dangerous than short circuit failures, as they eliminate bypass protection entirely.
Q: How do I test bypass diodes without removing the junction box?
A: Use thermal imaging to identify hot diodes, measure string currents during partial shading, and perform I-V curve analysis. These non-invasive methods can detect most bypass diode issues without opening the junction box.
Q: Can I replace bypass diodes in existing solar panels?
A: Yes, but it requires opening the junction box and may void warranties. Replacement should only be performed by qualified technicians using diodes with identical or superior specifications to maintain safety and performance.
Q: Why do Schottky diodes perform better than regular diodes in solar applications?
A: Schottky diodes have lower forward voltage drop (0.3-0.5V vs 0.7V), reducing power losses during bypass operation. They also have faster switching characteristics and better temperature performance, making them ideal for solar applications.
-
Learn in-depth about the causes and severe consequences of hot spot formation in photovoltaic cells. ↩
-
Understand the electronic principle of a reverse-biased P-N junction and how it applies to solar cells. ↩
-
Explore the concept of Maximum Power Point (MPP) and the tracking algorithms used to maximize solar energy harvest. ↩
-
Review the engineering practice of temperature derating to ensure electronic component reliability in varying thermal conditions. ↩
-
Discover how I-V (Current-Voltage) curve analysis is used to diagnose performance issues in solar panels and strings. ↩
