What Are 1/2″ NPT Strain Relief Fittings?
1/2″ NPT strain relief fittings are specialized cable entry devices that combine standard NPT threading with integrated strain relief mechanisms to protect cables from mechanical stress, vibration, and pulling forces.
Unlike basic cable glands that primarily provide sealing, strain relief fittings incorporate additional design elements specifically engineered to manage mechanical stress. The “strain relief” function distributes pulling forces across a larger cable area, preventing stress concentration at the entry point that leads to conductor fatigue and insulation failure.

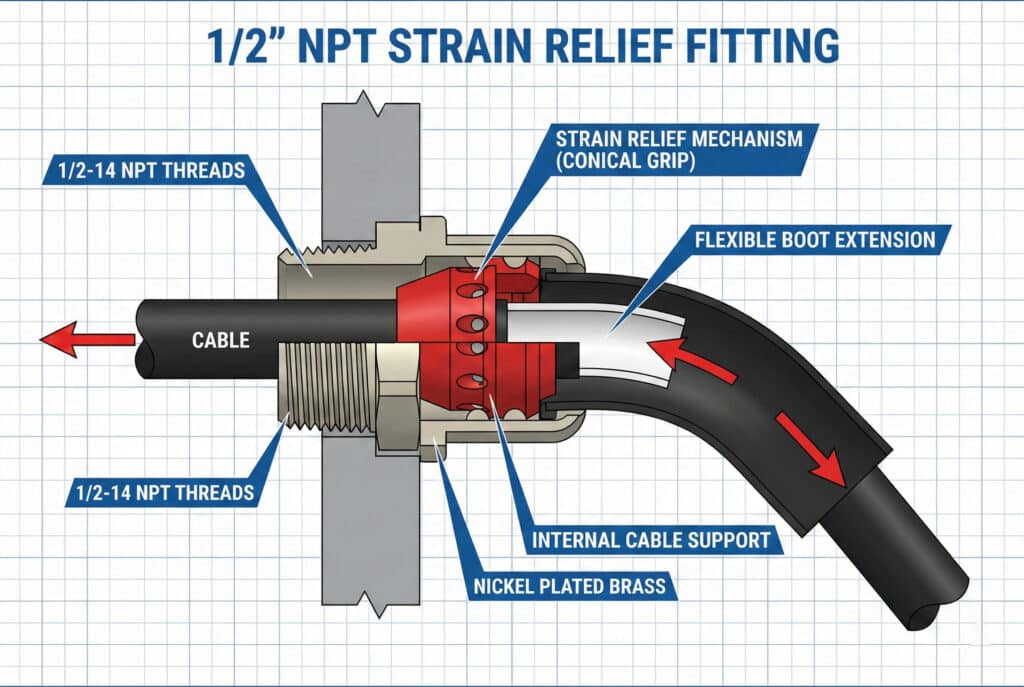

Core Design Elements
Threading System
The 1/2-14 NPT threading1 provides secure mechanical attachment to equipment enclosures while maintaining the tapered thread sealing characteristics. This standardized threading ensures compatibility across different manufacturers and applications.
Strain Relief Mechanism
Our strain relief fittings incorporate multiple stress distribution methods:
- Conical grip design that gradually increases pressure along the cable
- Multi-point contact distributing forces over 15-20mm cable length
- Flexible boot extension providing controlled bend radius transition
- Internal cable support preventing kinking and sharp bends
Technical Specifications
| Specification | Standard Range | Heavy-Duty Range |
|---|---|---|
| Thread Type | 1/2-14 NPT | 1/2-14 NPT |
| Cable Range | 6-13mm | 8-15mm |
| Pull Strength | 200-500N | 500-1000N |
| Bend Radius | 6x cable diameter | 8x cable diameter |
| Temperature Range | -40°C to +100°C | -40°C to +125°C |
| IP Rating | IP65/IP68 | IP68 |
Strain Relief vs. Standard Cable Glands
The key difference lies in mechanical protection capability. Standard cable glands focus on environmental sealing with minimal strain relief – typically handling 50-100N pulling force. Strain relief fittings are engineered for 200-1000N forces while maintaining superior sealing performance.
At Bepto, we design our strain relief fittings with progressive grip technology. As pulling force increases, the internal mechanism automatically increases grip pressure, providing self-adjusting protection without damaging the cable jacket.
How Do You Calculate Required Strain Relief Capacity?
Calculating strain relief requirements involves analyzing cable weight, environmental forces, installation stresses, and safety factors to determine the minimum pull strength needed for reliable operation.
Force Analysis Methodology
Step 1: Calculate Static Cable Weight
For vertical cable runs, calculate the total suspended weight:
- Cable weight per meter × vertical distance = static load
- Add 20% safety factor for cable weight variations
- Consider additional weight from cable trays or conduits
Step 2: Assess Dynamic Forces
Environmental and operational forces often exceed static loads:
- Vibration forces: 2-5x static load in high-vibration environments
- Thermal expansion: Can generate 100-300N forces in long runs
- Wind loading: Significant for outdoor installations
- Installation forces: Temporary loads during cable pulling
Real-World Calculation Example
Last year, I helped Marcus, a project engineer at a petrochemical facility in Louisiana, calculate strain relief requirements for instrument cables in a reactor tower. Here’s how we approached it:
Given conditions:
- 50-meter vertical cable run
- Cable weight: 0.8 kg/m
- High-vibration environment (rotating equipment nearby)
- Outdoor installation with wind exposure
Calculation:
- Static load: 50m × 0.8 kg/m × 9.8 m/s² = 392N
- Vibration factor: 392N × 3 = 1,176N
- Wind loading: 150N (estimated)
- Total design load: 1,176N + 150N = 1,326N
- Safety factor (2.0): 1,326N × 2 = 2,652N
Result: We specified heavy-duty strain relief fittings rated for 3,000N pull strength.
Environmental Factor Guidelines
| Environment | Vibration Multiplier | Additional Considerations |
|---|---|---|
| Indoor/Static | 1.2x | Minimal additional forces |
| Moderate Vibration | 2.0x | Pumps, fans, conveyors |
| High Vibration | 3.0-5.0x | Compressors, mills, crushers |
| Seismic Zones | 4.0-6.0x | Earthquake loading requirements |
| Marine/Offshore | 3.0-4.0x | Wave action, vessel movement |
Cable-Specific Considerations
Armored Cables
Steel wire armor significantly increases cable weight and stiffness:
- Weight increase: 50-100% over unarmored equivalent
- Reduced flexibility requires larger bend radius
- Higher grip strength needed due to slippery armor surface
Multi-Core Cables
Large conductor counts create unique challenges:
- Individual conductor movement within jacket
- Potential for internal stress concentration
- May require specialized strain relief designs
What Materials Offer the Best Performance?
Material selection for 1/2″ NPT strain relief fittings depends on environmental conditions, with nylon offering cost-effectiveness, brass providing durability, and stainless steel delivering maximum corrosion resistance.
Nylon Strain Relief Fittings
PA66 (Nylon 66) Construction
Our nylon strain relief fittings use PA66 with 30% glass fiber reinforcement, providing excellent strength-to-weight ratio and chemical resistance. The material’s natural flexibility makes it ideal for applications requiring frequent cable movement.
Performance characteristics:
- Temperature range: -40°C to +100°C
- Chemical resistance: Excellent against oils, solvents, weak acids
- UV stability: UV-stabilized grades available for outdoor use
- Cost advantage: 60-70% less expensive than metal alternatives
Best applications:
- Indoor control panels
- Moderate temperature environments
- Cost-sensitive projects
- Applications requiring electrical insulation
Limitations:
- Not suitable for high-temperature applications (>100°C)
- Can become brittle in extreme cold without proper additives
- Limited resistance to strong acids and bases
Brass Strain Relief Fittings
CW617N Brass Alloy2
We manufacture brass strain relief fittings using CW617N (58% copper, 39% zinc, 3% lead), providing excellent machinability and moderate corrosion resistance for standard industrial environments.
Key advantages:
- Mechanical strength: Superior to nylon, handles higher pull forces
- Temperature capability: -40°C to +120°C continuous operation
- Electrical conductivity: Provides EMC shielding when required
- Machinability: Allows complex internal geometries for optimal strain relief
Ideal for:
- General industrial applications
- Moderate corrosive environments
- Applications requiring EMC shielding
- Temperature cycling conditions
Stainless Steel 316L Strain Relief Fittings
Premium Corrosion Resistance
For the most demanding applications, our 316L stainless steel strain relief fittings provide unmatched durability and chemical resistance. The low carbon content prevents carbide precipitation, ensuring long-term corrosion resistance.
Superior performance:
- Corrosion resistance: Excellent in chloride environments
- Temperature range: -40°C to +200°C (with appropriate seals)
- Mechanical strength: Highest pull strength ratings available
- Longevity: 15-20 year service life in harsh environments
Essential for:
- Chemical processing plants
- Marine and offshore installations
- Food and pharmaceutical industries
- High-temperature applications

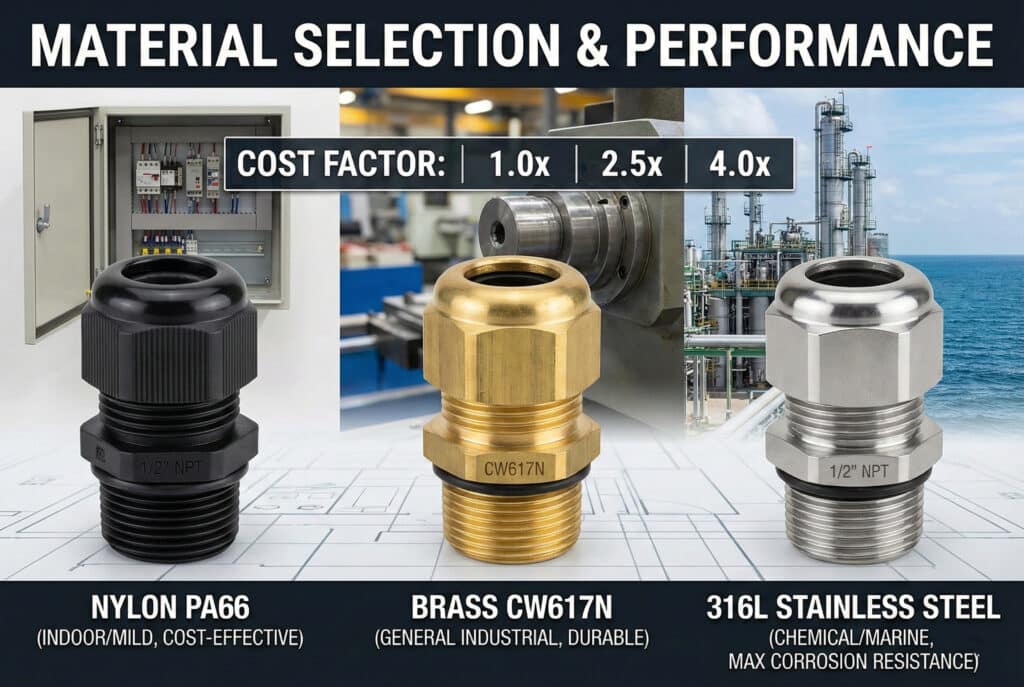

Material Selection Matrix
| Application Environment | Recommended Material | Cost Factor | Expected Life |
|---|---|---|---|
| Indoor/Mild | Nylon PA66 | 1.0x | 5-8 years |
| General Industrial | Brass CW617N | 2.5x | 8-12 years |
| Chemical/Marine | 316L Stainless Steel | 4.0x | 15-20 years |
| Food Grade | 316L Stainless Steel | 4.0x | 15-20 years |
| High Temperature | 316L Stainless Steel | 4.0x | 10-15 years |
How Do You Match Fittings to Cable Types?
Matching strain relief fittings to cable types requires analyzing cable construction, jacket material, flexibility, and application-specific stress patterns to ensure optimal protection and performance.
Cable Construction Analysis
Single Core vs. Multi-Core Cables
Single core cables require different strain relief approaches than multi-core designs:
- Single core: Focus on preventing conductor fatigue from bending
- Multi-core: Address individual conductor movement within the jacket
- Shielded cables: Maintain shield continuity while providing strain relief
Cable Jacket Compatibility
PVC Jacketed Cables
PVC jackets are common but present specific challenges:
- Temperature limitations: Becomes brittle below -10°C, softens above 70°C
- Chemical sensitivity: Attacked by oils and some solvents
- Grip considerations: Smooth surface requires higher clamping force
XLPE and EPR Jackets
Cross-linked polyethylene and ethylene propylene rubber offer superior performance:
- Temperature stability: -40°C to +90°C continuous operation
- Chemical resistance: Excellent against most industrial chemicals
- Flexibility: Maintains flexibility at low temperatures
Polyurethane Jackets
Premium cable option for demanding applications:
- Abrasion resistance: 10x better than PVC
- Oil resistance: Excellent for hydraulic and lubrication environments
- Flexibility: Superior cold temperature performance
Armored Cable Considerations
I recently worked with Hassan, a maintenance manager at a steel mill in Dubai, who was experiencing frequent failures with armored cable installations. The solution required specialized strain relief fittings designed for armored cables.
Steel Wire Armored (SWA) Cables
- Increased diameter: Armor adds 2-4mm to overall cable diameter
- Reduced flexibility: Requires larger bend radius protection
- Grip challenges: Smooth armor surface needs specialized gripping elements
- Weight considerations: 50-100% heavier than unarmored equivalent
Braided Shield Cables
- Shield continuity: Maintain electrical connection through strain relief
- Compression sensitivity: Avoid over-compression that damages braid
- EMC performance: Ensure 360-degree shield connection
Application-Specific Matching
| Cable Type | Strain Relief Design | Key Considerations |
|---|---|---|
| Instrumentation | Standard conical grip | Low force, precise sealing |
| Power Cable | Heavy-duty progressive grip | High current, larger diameter |
| Control Cable | Multi-point contact | Multiple conductors, flexibility |
| Armored Cable | Specialized armor grip | Weight, reduced flexibility |
| Fiber Optic | Gentle compression | Bend radius critical3 |
| Coaxial | Shield continuity design | Impedance matching |
Bend Radius Protection
Proper bend radius protection is critical for cable longevity:
- Minimum bend radius: 6x cable diameter for fixed installation
- Dynamic applications: 10x cable diameter for moving cables
- Strain relief boot: Gradual transition from rigid to flexible
- Internal support: Prevents kinking at the transition point
What Are the Critical Installation Factors?
Critical installation factors for 1/2″ NPT strain relief fittings include proper thread engagement, correct torque application, cable preparation, and verification of strain relief performance through testing.
Pre-Installation Preparation
Thread Verification
Always verify thread compatibility using proper gauges:
- NPT thread gauge: Confirms 1/2-14 NPT threading
- Thread condition: Check for damage, debris, or corrosion
- Enclosure thickness: Ensure adequate thread engagement (minimum 4-5 threads)
Cable Preparation
Proper cable preparation is essential for optimal strain relief performance:
- Strip length: Remove outer jacket 20-25mm from cable end
- Conductor preparation: Follow manufacturer specifications
- Jacket inspection: Check for damage that could compromise grip
- Diameter measurement: Verify cable fits within fitting range
Installation Procedure
Step 1: Thread Sealant Application
Apply appropriate thread sealant to male threads only:
- PTFE tape: 3-4 wraps applied clockwise
- Liquid sealant: Anaerobic compounds for metal-to-metal sealing
- Coverage: Cover all threads but avoid excess that could contaminate seals
Step 2: Initial Threading
Hand-tighten the fitting until threads engage smoothly:
- Cross-threading prevention: Start threads carefully by hand
- Resistance check: Threads should turn smoothly without binding
- Engagement verification: Ensure minimum 4-5 threads engaged
Step 3: Torque Application
Use calibrated torque wrench for proper installation:
- Initial torque: 25-30 Nm for 1/2″ NPT body
- Torque sequence: Tighten gradually in 5 Nm increments
- Final verification: Check for proper thread engagement
Step 4: Cable Installation
Insert cable through strain relief mechanism:
- Insertion depth: Push cable until jacket seats properly
- Alignment check: Ensure cable enters straight without kinking
- Preliminary grip: Hand-tighten compression components
Step 5: Strain Relief Adjustment
Adjust strain relief mechanism for optimal performance:
- Compression torque: Follow manufacturer specifications (typically 15-20 Nm)
- Grip verification: Check that cable cannot be pulled out by hand
- Bend radius check: Ensure smooth transition from rigid to flexible
Common Installation Errors
- Insufficient thread engagement: Less than 4 threads reduces holding strength
- Over-torquing: Can damage threads or compromise sealing
- Improper cable preparation: Damaged jacket reduces grip effectiveness
- Inadequate strain relief adjustment: Under-tightening allows cable movement
- Thread sealant contamination: Excess sealant can damage internal seals
Maintenance Requirements
Regular maintenance ensures continued performance:
- Visual inspection: Monthly check for damage or loosening
- Torque verification: Annual re-torque to specification
- Seal replacement: Replace seals every 3-5 years in harsh environments
- Pull testing: Periodic verification of strain relief capacity
Conclusion
Selecting the right 1/2″ NPT strain relief fitting requires careful analysis of your specific application requirements, environmental conditions, and cable characteristics. The investment in proper strain relief pays dividends through reduced cable failures, lower maintenance costs, and improved system reliability.
At Bepto, we’ve engineered our strain relief fittings to provide superior protection across a wide range of applications. Our progressive grip technology, quality materials, and rigorous testing ensure that your cables remain protected even under the most demanding conditions.
Whether you’re dealing with high-vibration environments, heavy cables, or critical safety systems, the right strain relief fitting selection and installation will protect your investment and ensure reliable operation for years to come.
FAQs About 1/2″ NPT Strain Relief Fittings
Q: How much pulling force can 1/2″ NPT strain relief fittings handle?
A: Standard 1/2″ NPT strain relief fittings handle 200-500N pulling force, while heavy-duty versions can manage 500-1000N. The exact capacity depends on cable type, fitting design, and installation quality.
Q: What’s the difference between strain relief fittings and regular cable glands?
A: Strain relief fittings include specialized mechanisms to distribute mechanical stress over a larger cable area, while regular cable glands focus primarily on environmental sealing. Strain relief fittings typically handle 3-10 times more pulling force.
Q: Can I use the same fitting for different cable types?
A: While 1/2″ NPT fittings accommodate cables from 6-13mm diameter, different cable constructions may require specific strain relief designs. Armored cables, fiber optics, and high-flex applications often need specialized fittings.
Q: How do I know if my strain relief fitting is properly installed?
A: Perform a pull test at 150% of working load for 60 seconds. The cable should not move or show damage. Also verify proper thread engagement (minimum 4-5 threads) and seal integrity through pressure testing.
Q: What maintenance do strain relief fittings require?
A: Perform monthly visual inspections for damage or loosening, annual torque verification, and replace seals every 3-5 years in harsh environments. Periodic pull testing ensures continued strain relief capacity.
-
Understand the tapered thread geometry and sealing mechanism of National Pipe Thread (NPT) standard. ↩
-
See the specific chemical composition and performance characteristics of CW617N brass alloy used in fittings. ↩
-
Learn why maintaining a sufficient bend radius is crucial for preventing conductor fatigue and extending cable life. ↩↩2
