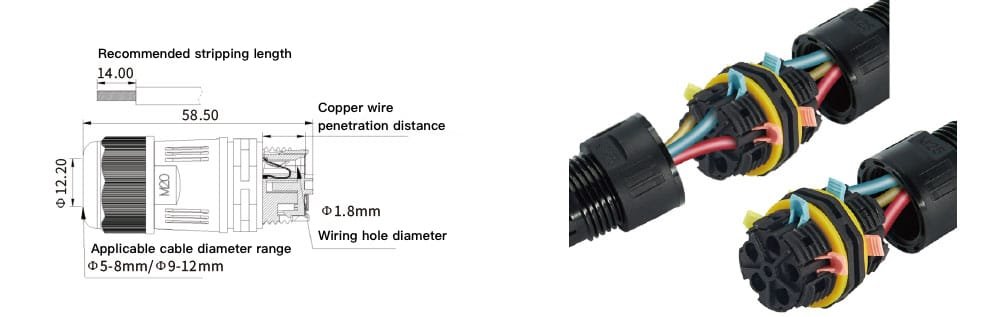

Push-in Wire Waterproof Connector, 25A IP68 Splice KCM20

• Product Type: Waterproof In-line Push-in Wire Connector
• Series / Model: KCM20
• Shell Material: Nylon PA66 (UL-94V0 Flame Retardant)
• Conductor Material: Nickel-Plated Phosphor Bronze + Stainless Steel
• O-Ring Material: Silicone
• IP Rating: IP68
• Operating Temperature: -40°C to +105°C
• Rated Voltage / Current: 400V / 25A
• Pin Counts Available: 2, 3
• Applicable Wire Size: 0.2 – 2.5mm²
• Applicable Cable O.D.: 5-8mm, 9-12mm
• Termination: Push-in Spring Terminal (Tool-less)
• Certifications: CE, RoHS

Key Features

• Tool-less Push-in Wiring: Features innovative push-in terminals for instant, secure wire connections (0.2-2.5mm²) without requiring any tools, dramatically speeding up installation.
• IP68 Waterproof Protection: Provides the highest level of protection against dust and long-term water immersion, ensuring reliable connections in wet or outdoor environments.
• High Power Capacity: Rated for up to 400V and 25A, making it suitable for a wide range of power applications, including outdoor lighting, pumps, and industrial equipment.
• Durable & Safe Materials: Constructed with a UL94V-0 flame-retardant Nylon PA66 shell and silicone O-rings for excellent durability and safety.
• High-Quality Conductors: Utilizes nickel-plated phosphor bronze and stainless steel spring components for superior conductivity and a reliable, long-lasting connection.
• Versatile Cable Fit: Comes with multiple sealing grommets to accommodate a wide range of cable diameters (Φ5-8mm, Φ9-12mm).

Model	KCM20-01	KCM20-02	KCM20-03	KCM20-04
Quantity/bag	20	20	20	20
Core	2 Core	2 Core	3 Core	3 Core
Cable range(mm)	5-8	9-12	5-8	9-12
Per Pcs weight(g)	22.7	22.7	22.7	22.7
One carton weight(kg)	16.2	15.4	17.3	16.5
