IP68 Waterproof Y-Connector, 32A 3-Way Power Splitter YXM25

Our YXM25 IP68 Waterproof Y-Connector allows for fast, secure 3-way splices with screw terminals. This 32A fitting is ideal for branching power cables in outdoor lighting and industrial applications.

Technical Parameter

Product Type: Waterproof Y-Connector / 3-Way Power Splitter
Series / Model: YXM25
Shell Material: Nylon PA66 (UL-94V0 Flame Retardant)
Conductor Material: Nickel-Plated Brass
O-Ring Material: Silicone
IP Rating: IP68
Operating Temperature: -40°C to +105°C
Rated Voltage / Current: 450V / 32A
Pin Counts Available: 2, 3, 4, 5
Applicable Wire Size: 0.5 – 4mm²
Applicable Cable O.D.: 5-8mm, 9-12mm, 10-14mm
Termination: Screw Terminal
Certifications: CE, RoHS

Key Features

3-Way Y-Shaped Design: Allows one cable input to be split into two outputs, perfect for creating parallel branches in a wiring system for lighting, solar panels, and more.
High Power Capacity (32A): Rated for up to 450V and 32A, making it suitable for a wide range of demanding power applications.
Easy Screw Terminal Wiring: Features screw-in terminals for fast and secure wire connections (0.5-4mm²) without the need for soldering or special crimping tools.
IP68 Waterproof Protection: Provides the highest level of protection against dust and long-term water immersion, ensuring reliable connections in wet or outdoor environments.
Durable & Safe Materials: Constructed with a UL94V-0 flame-retardant Nylon PA66 shell and silicone O-rings for excellent durability and safety.

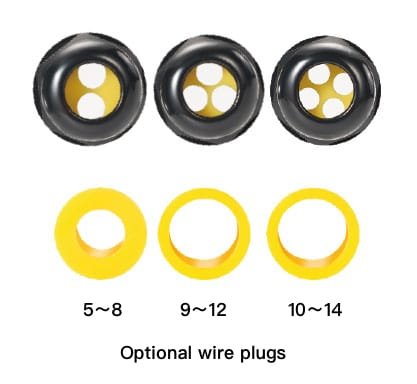

Versatile Cable Fit: Comes with multiple sealing grommets to accommodate a wide range of cable diameters (Φ5-8mm, Φ9-12mm, Φ10-14mm).

Model	YXM 25-31	YXM 25-32	YXM 25-33	YXM 25-34	YXM 25-31	YXM 25-32	YXM 25-33	YXM 25-34	YXM 25-31	YXM 25-32	YXM 25-33	YXM 25-34
Quantity/bag	5	5	5	5	5	5	5	5	5	5	5	5
Core	2 Core	2 Core	2 Core	3 Core	3 Core	3 Core	4 Core	4 Core	4 Core	5 Core	5 Core	5 Core
Cable range(mm)	5-8	9-12	10-14	5-8	9-12	10-14	5-8	9-12	10-14	5-8	9-12	10-14
Per Pcs weight(g)	63.8	62.6	61.4	65.8	64.6	63.4	67.8	66.6	65.2	69.8	68.6	67.4
One carton weight(kg)	24.3	23.9	23.5	25	24.6	24.2	25.8	25.3	24.8	26.5	26	25.6
