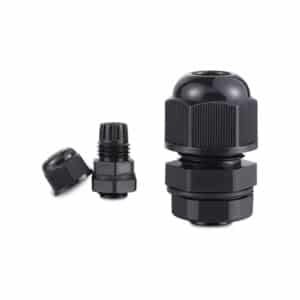

Divided Nylon Cable Gland with High Strain Relief

This divided nylon cable gland is engineered for high performance. Its IP68-10 Bar seal and excellent strain relief make it a robust and versatile choice for a wide range of cable applications.Multi-Part Nylon Cable Gland

Technical Parameter

Structure: Multi-Part / Divided Structure
Body Material: Nylon PA66
Seal & O-Ring: EPDM Rubber (Custom options for high-temp/chemical resistance available)
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Types: Metric, PG, G(PF/BSP), NPT
Colors: Black (RAL 9005), Gray (RAL 7035), custom colors available

Key Features

Multi-Part (Divided) Structure: The traditional, industry-standard design allows for greater flexibility, including the ability to interchange seals for specific needs (e.g., high-temp or chemical resistance).
High Strain Relief: A special design of the clamping claws and seal provides exceptional gripping force and superior resistance to pulling and twisting.
IP68-10 Bar Waterproof: Delivers the highest level of certified protection against dust and high-pressure water, ensuring connection integrity in harsh environments.
Audible “Click” Lock Nut: The sealing nut makes a “click” sound when tightened, providing tactile and audible feedback that confirms a secure, vibration-resistant lock.
Wide Clamping Range: The excellent design accommodates a wider range of cable diameters, offering greater flexibility with a single gland size.
Full Range of Threads: Available in Metric, PG, G(PF), and NPT threads to meet diverse international equipment requirements.

Metric thread M type
Code	Thread	Cable Range Φ (mm)	Thread O.D. Cl(mm)	Thread Length C2(mm)	Spanner Size A&F(mm)
NLM12A-DS	M12X1.5	3-5.5	12	8.5	18/19
NLM12B-DS	M12X1.5	4.5-7.8	12	8.5	18/19
NLM16A-DS	M16X1.5	4-8	16	10	22/19
NLM16B-DS		4-8	16	15	22/19
NLM16C-DS		6-10	16	10	22/22
NLM16D-DS		6-10	16	15	22/22
NLM20A-DS	M20X1.5	6-12.5	20	10	24/24
NLM20B-DS		9-14	20	10	27/27
NLM20C-DS		9-14	20	15	27/27
NLM22-DS	M22X1.5	9-14	20	10	27/27
NLM25A-DS	M25X1.5	10-16	25	10	33/33
NLM25B-DS		13-18	25	10	33/33
NLM25C-DS		10-16	25	15	33/33
NLM25D-DS		13-18	25	15	33/33
NLM32A-DS	M32X1.5	15-22	32	15	41/42
NLM32B-DS	M32X1.5	18-25	32	15	41/42
NLM40-DS	M40X1.5	24-31	40	20	50/52
NLM50-DS	M50X1.5	31-41	50	22	62/62
NLM63-DS	M63X1.5	44-51	63	25	75/75
NLM75-DS	M75X2.0	56-66	75	25	92/92
NLM90-DS	M90X2.0	66-77	90	25	110/110

German thread NPT type
Code	Thread	Cable Range Φ (mm)	Thread O.D. Cl(mm)	Thread Length C2(mm)	SpannerSize A&F(mm)
NLPG7-DS	PG7	4.5-7.8	12.5	8	17/19
NLPG9-DS	PG9	4.5-7.8	15.2	8.2	22/19
NLPG11-DS	PG11	6-10	18.6	10	24/22
NLPG13.5-DS	PG13.5	7-12.5	20.4	10	27/24
NLPG16-DS	PG16	9-14	22.5	10.8	30/27
NLPG21-DS	PG21	13-18	28.3	12	36/33
NLPG29-DS	PG29	18-25	37	12	46/41
NLPG36-DS	PG36	24-31	47	14	57/52
NLPG42-DS	PG42	31-41	54	15	64/62

G-type series of pipe thread
Code	Thread	Cable Range Φ (mm)	Thread O.D. Cl(mm)	Thread Length C2(mm)	SpannerSize A&F(mm)
NLG1/4-DS	G(PF)1/4″	5-7.8	13.157	8.5	19/19
NLG3/8-DS	G(PF)3/8″	6-10	16.662	10	22/22
NLG1/2-DS	G(PF)1/2″	7-12.5	20.955	10	27/24
NLG3/4-DS	G(PF)3/4″	12.5-18	26.441	12	36/33
NLG1-DS	G(PF)1″	17-25	33.249	15	46/41
NLG11/4-DS	G(PF)1-1/4″	24-32	41.91	15	57/52
NLG11/2-DS	G(PF)1-1/2″	31-41	48	22	60/62
NLG2-DS	G(PF)2″	44-51	60	26	72/65
