NPT vs. Metric Nylon Glands: A Guide for US Market Exports

Introduction

If you’re exporting cable glands to the United States, you’ve likely encountered this frustrating scenario: your perfectly manufactured metric cable glands arrive at a customer’s facility, only to be rejected because they don’t fit NPT-threaded enclosures. Understanding the critical differences between NPT (National Pipe Thread) and Metric threading systems is essential for US market success—the wrong choice can cost you 15-20% in returns and damage long-term customer relationships.

I recently worked with Hassan, a distributor targeting the North American industrial market. He told me: “We lost a $50,000 order because we assumed 1/2″ NPT and M16 were interchangeable. They’re not—not even close.” Whether you’re a first-time exporter or looking to expand your US presence, this guide will clarify the technical differences, application requirements, and selection criteria to ensure your nylon cable glands meet American standards.

Table of Contents

• What Are the Core Differences Between NPT and Metric Threading?(#what-are-the-core-differences-between-npt-and-metric-threading)
• Why Does the US Market Prefer NPT Cable Glands?(#why-does-the-us-market-prefer-npt-cable-glands)
• How Do You Select the Right System for Your Application?(#how-do-you-select-the-right-system-for-your-application)
• What Installation and Compatibility Issues Should You Expect?(#what-installation-and-compatibility-issues-should-you-expect)
• FAQ(#faq)

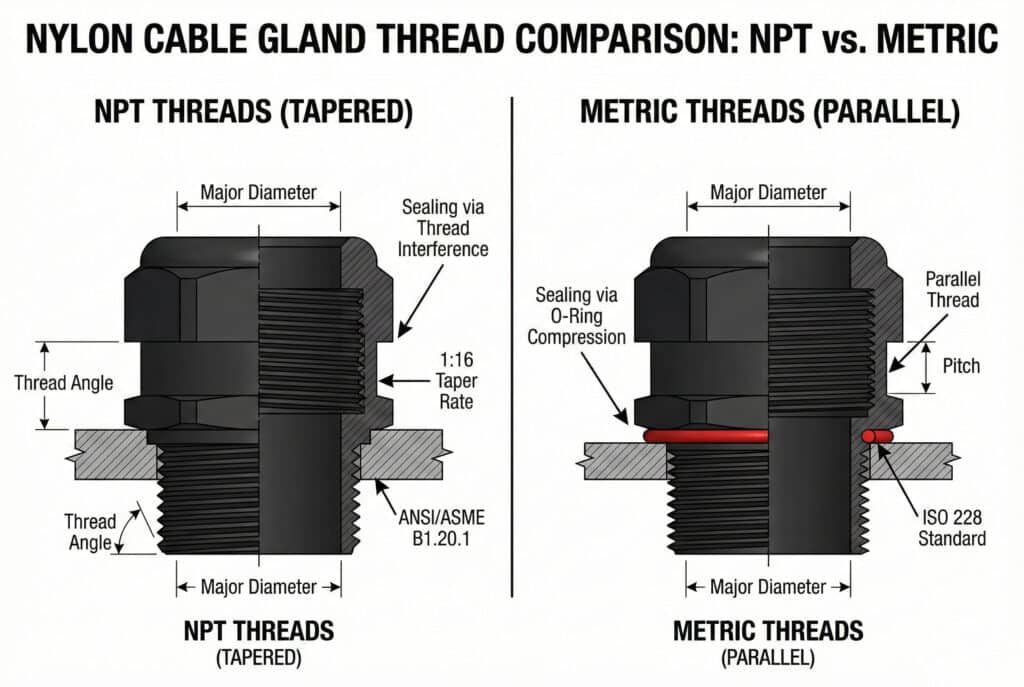

What Are the Core Differences Between NPT and Metric Threading?

The fundamental distinction between NPT and Metric cable glands lies in their threading geometry, measurement systems, and sealing mechanisms. These aren’t just different sizing standards—they represent incompatible mechanical designs that cannot be interchanged without adapters.

NPT (National Pipe Thread) Characteristics:

• Thread form: 60-degree tapered thread angle
• Measurement: Imperial units (inches)
• Taper rate: 1:16 (0.75 inches per foot)
• Sealing method: Thread interference creates seal (often with PTFE tape)
• Standard: ANSI/ASME B1.20.1¹

Metric Threading Characteristics:

• Thread form: Parallel threads (ISO standard) or PG threads (German standard)
• Measurement: Millimeters
• Taper rate: None (parallel) or varies by standard
• Sealing method: O-ring or washer compression
• Standards: ISO 228 (parallel), DIN 40430 (PG threads)

Critical Dimensional Comparison

Thread Size	NPT Designation	Major Diameter (inches)	Metric Equivalent	Metric Diameter (mm)	Interchangeable?
Small	1/4″ NPT	0.540″	M12	12.0 mm	❌ No
Medium	1/2″ NPT	0.840″	M16	16.0 mm	❌ No
Medium-Large	3/4″ NPT	1.050″	M20	20.0 mm	❌ No
Large	1″ NPT	1.315″	M25	25.0 mm	❌ No
Extra-Large	1-1/2″ NPT	1.900″	M32	32.0 mm	❌ No

Material considerations remain consistent:

Both NPT and Metric nylon cable glands typically use PA6 or PA66 polyamide, rated for:

• Temperature range: -40°C to +100°C (standard), up to +120°C (heat-stabilized)
• IP protection: IP68² when properly installed
• Chemical resistance: Oils, weak acids, alkalis, solvents
• UV stabilization: Required for outdoor applications

At Bepto, we manufacture both NPT and Metric versions using identical nylon compounds, ensuring consistent material performance regardless of threading standard. The key difference lies entirely in the threaded entry design and corresponding installation hardware.

Why Does the US Market Prefer NPT Cable Glands?

The American industrial infrastructure is built around imperial measurements and National Pipe Thread³ standards, creating strong market preferences that exporters must understand and accommodate.

Historical and Regulatory Factors

Legacy infrastructure dominance:

The United States industrialized using imperial standards established in the 19th century. Millions of existing electrical enclosures, junction boxes, and control panels feature NPT-threaded knockouts. Replacing this infrastructure is economically impractical, creating sustained demand for NPT-compatible components.

Code and certification requirements:

• NEC (National Electrical Code⁴): References NPT threading in Articles 250, 314, and 501
• UL listings: Many UL-certified enclosures specify NPT entries
• NEMA standards: Enclosure specifications (NEMA 4, 4X, 12) typically use NPT
• Hazardous location requirements: Class I, Division 1 and 2 areas often mandate NPT for explosion-proof integrity

Industry-Specific Preferences

Oil and gas sector:

This industry overwhelmingly uses NPT threading due to:

• API (American Petroleum Institute) standards specifying NPT
• Existing pipeline and refinery infrastructure
• Maintenance technician training focused on imperial tools
• Safety protocols built around NPT torque specifications

Manufacturing and automation:

David, a purchasing manager at a Midwest automotive parts manufacturer, explained: “Our entire facility uses NPT. When a European equipment supplier sent us metric cable glands, we had to order adapters, which added leak points and delayed our production line commissioning by two weeks.”

Key US market segments and their preferences:

• Food processing: 70% NPT (existing infrastructure)
• Water treatment: 85% NPT (municipal standards)
• HVAC systems: 90% NPT (residential and commercial)
• Solar installations: 60% Metric, 40% NPT (newer industry, mixed standards)
• Marine applications: 50/50 split (depends on vessel origin)

Practical Advantages in US Context

Technician familiarity:

American electricians and maintenance personnel train with imperial measurements. They instinctively understand that 3/4″ NPT requires a specific wrench size and PTFE tape application technique. Introducing metric components creates training gaps and installation errors.

Tool compatibility:

Standard US tool sets include imperial wrenches, pipe dies, and knockout punches. Metric tools require separate investment, which many smaller contractors resist.

Supply chain integration:

Distributors, hardware stores, and MRO suppliers stock NPT components as standard inventory. Metric alternatives often require special orders with longer lead times, making NPT the path of least resistance for time-sensitive projects.

How Do You Select the Right System for Your Application?

Choosing between NPT and Metric nylon cable glands for US exports requires analyzing customer requirements, application environments, and long-term service considerations.

Decision Framework

Step 1: Identify the Enclosure Standard

Ask your customer:

• What enclosure brand and model are they using? (Hoffman, Wiegmann, Hammond use NPT)
• Are they working with imported European equipment? (ABB, Siemens often use Metric)
• Is this new construction or retrofit? (Retrofit almost always requires matching existing threads)

Step 2: Check Regulatory Requirements

Hazardous location installations:

For Class I, Division 1 areas (explosive atmospheres), NPT threading is typically required because:

• UL and CSA certifications specify NPT for explosion-proof fittings
• Thread engagement depth is critical for flame path integrity
• Metric adapters may void hazardous location ratings

Non-hazardous general industrial:

More flexibility exists, but NPT remains preferred for:

• NEMA 4X (corrosion-resistant) outdoor enclosures
• Food-grade washdown areas (NEMA 4X with stainless hardware)
• Control panels meeting UL 508A standards

Step 3: Evaluate Cable Specifications

Cable Parameter	NPT Consideration	Metric Consideration
Cable OD	Measured in inches (0.25″, 0.50″)	Measured in mm (6mm, 12mm)
Armor type	MC cable, AC cable (imperial sizing)	SWA, LSZH (metric sizing)
Conductor count	AWG sizing (14 AWG, 12 AWG)	mm² sizing (1.5mm², 2.5mm²)
Flexibility	Standard US cable is stiffer (requires larger bend radius)	European cable often more flexible

Application-Specific Recommendations

Scenario 1: Exporting to US Industrial Facilities

Recommendation: NPT cable glands (90% of cases)

Reasoning:

• Existing infrastructure uses NPT
• Maintenance staff trained on imperial
• Faster installation without adapters
• Better distributor support

Bepto solution: We offer complete NPT nylon cable gland ranges (1/4″ through 2″) with UL94⁵ V-2 flame rating and IP68 sealing performance.

Scenario 2: Supplying European Equipment Manufacturers Selling to US

Recommendation: Metric cable glands with NPT adapter kits

Reasoning:

• Equipment panels are pre-drilled metric
• End customers may have NPT enclosures for field connections
• Flexibility maximizes market reach

Bepto solution: We provide metric cable glands with optional NPT adapters and clear installation instructions for both standards.

Scenario 3: Solar and Renewable Energy Projects

Recommendation: Assess project specifications carefully (50/50 split)

Reasoning:

• Inverters and combiner boxes may use either standard
• String boxes increasingly use metric (European inverter brands)
• Junction boxes for field wiring often NPT

Pro tip: For solar projects, confirm the inverter brand first. SMA, Fronius, and SolarEdge (European) typically use metric. Generac, Outback, and Schneider Electric (US divisions) often use NPT.

Cost-Benefit Analysis

NPT advantages for US market:

• 15-20% fewer customer inquiries about compatibility
• Reduced return rates (our data shows 3% vs. 12% for metric)
• Faster distributor acceptance and stocking
• Premium pricing potential (10-15% higher than metric in US)

Metric advantages:

• Global standardization (easier for multi-region exporters)
• Better seal reliability (O-ring vs. thread tape)
• Easier installation (no PTFE tape required)
• Growing acceptance in newer industries (EV charging, data centers)

What Installation and Compatibility Issues Should You Expect?

Even when you’ve selected the correct threading system, several installation challenges can arise when exporting nylon cable glands to the US market.

NPT-Specific Installation Considerations

Thread engagement depth:

NPT tapered threads require 3-5 full turns for proper sealing. Insufficient engagement is the #1 cause of IP rating failures in field installations.

Proper installation steps:

1. Clean threads on both enclosure and cable gland
2. Apply 2-3 wraps of PTFE tape (clockwise when viewing threads)
3. Hand-tighten until resistance is felt
4. Use wrench to turn 2-3 additional full rotations
5. Verify no gap exists between gland shoulder and enclosure surface

Torque specifications for nylon NPT glands:

• 1/4″ NPT: 8-10 lb-ft (11-14 Nm)
• 1/2″ NPT: 15-18 lb-ft (20-24 Nm)
• 3/4″ NPT: 20-25 lb-ft (27-34 Nm)
• 1″ NPT: 25-30 lb-ft (34-41 Nm)

Warning: Over-torquing nylon threads can cause cracking. Always use a calibrated torque wrench.

Common Compatibility Mistakes

Mistake 1: Assuming “Close Enough” Sizing

A 1/2″ NPT hole measures 0.840″ major diameter. An M16 metric gland measures 16mm (0.630″). The 0.210″ difference means the metric gland will spin freely without sealing. Never force-fit mismatched threads.

Mistake 2: Using Metric Cable with NPT Glands

European cables sized in millimeters may not match NPT cable gland grip ranges:

• 1/2″ NPT gland: Designed for 0.375″-0.625″ cable OD
• 12mm cable: 0.472″ OD (works)
• 14mm cable: 0.551″ OD (works)
• 16mm cable: 0.630″ OD (marginal—may not seal properly)

Solution: Always verify cable OD against gland clamping range, not just thread size.

Mistake 3: Ignoring Adapter Quality

If you must use NPT-to-Metric adapters:

• Use brass or stainless steel adapters (not plastic)
• Verify IP rating is maintained through adapter
• Check that adapter doesn’t reduce cable entry size
• Confirm adapter doesn’t violate hazardous location certifications

Environmental and Material Considerations

UV exposure in outdoor US climates:

• Southern states (Texas, Florida, Arizona): Intense UV requires carbon black-stabilized nylon (minimum 2% by weight)
• Northern states: Standard UV stabilization sufficient
• Coastal areas: Salt spray requires enhanced UV package plus corrosion-resistant lock nuts

Temperature extremes:

• Desert installations: Daytime temperatures can exceed 140°F (60°C) on black enclosures—verify nylon grade is heat-stabilized
• Cold climates: Standard PA66 remains flexible to -40°F, but installation should occur above 32°F to prevent cracking

Chemical exposure by industry:

• Agricultural: Fertilizer and pesticide resistance required
• Food processing: NSF-51 compliance for food zone areas
• Automotive: Oil and coolant resistance (standard nylon handles this)
• Chemical plants: May require specialized nylon grades or metal glands

Documentation and Certification for US Customers

Essential documentation to provide:

• UL94 flammability rating certificate (minimum V-2 for nylon)
• IP68 test reports (with pressure and duration specifications)
• Material composition certificate (RoHS, REACH compliance)
• Dimensional drawings showing NPT thread specifications
• Installation instructions in English with imperial measurements
• Torque specifications in both lb-ft and Nm

Certifications that add value in US market:

• UL listing (significant premium, but expensive to obtain)
• CSA certification (required for Canadian exports)
• NEC compliance statement
• NEMA rating compatibility chart
• FM approval (for insurance-sensitive industries)

At Bepto, we provide comprehensive technical documentation packages specifically formatted for US customers, including imperial measurement conversions and NEC article references. This reduces your customer’s engineering review time and accelerates approvals.

Conclusion

Selecting between NPT and Metric nylon cable glands for US exports isn’t just about threading—it’s about understanding American industrial infrastructure, regulatory requirements, and installer expectations. For 80-90% of US industrial applications, NPT threading is the correct choice due to existing enclosure standards, technician training, and code requirements. However, renewable energy, imported equipment integration, and certain OEM applications may benefit from metric solutions or hybrid approaches with adapters.

The key to export success is asking the right questions upfront: What enclosure standard does your customer use? What are the regulatory requirements? What cable specifications are involved? By systematically addressing these factors and providing proper documentation, you can avoid costly returns and build lasting relationships in the lucrative US market.

If you’re planning to export cable glands to North America and need guidance on product selection, certifications, or technical specifications, our team at Bepto has supported dozens of distributors in successfully entering this market. Reach out for application-specific recommendations.
