Cable gland failures due to improper seal material selection cost industries millions in equipment damage, downtime, and safety incidents annually, with many engineers discovering compatibility issues only after seals deteriorate in harsh environments. The wrong seal material can lead to moisture ingress, chemical degradation, temperature failure, and complete loss of IP protection1 that compromises entire electrical systems and creates dangerous operating conditions. Choosing the right seal material for your cable gland requires understanding the specific properties of EPDM2 (excellent weather resistance), Silicone (extreme temperature tolerance), and NBR3 (superior oil resistance) – each material offers distinct advantages for different environmental conditions, with EPDM ideal for outdoor applications, Silicone perfect for high-temperature processes, and NBR essential for oil and fuel environments, ensuring optimal sealing performance, longevity, and cost-effectiveness when properly matched to application requirements. Throughout my decade of experience supplying cable glands across diverse industries, I’ve seen how proper seal material selection can extend equipment life from months to decades, while wrong choices lead to premature failures, costly replacements, and potential safety hazards that could have been easily prevented with proper material knowledge.
Table of Contents
- What Are the Key Properties of Cable Gland Seal Materials?
- How Do EPDM, Silicone, and NBR Compare for Different Applications?
- What Environmental Factors Should You Consider When Selecting Seals?
- How Do You Match Seal Materials to Specific Industry Requirements?
- What Are the Cost and Performance Trade-offs Between Different Materials?
- FAQs About Cable Gland Seal Materials
What Are the Key Properties of Cable Gland Seal Materials?
Understanding the fundamental properties of cable gland seal materials is crucial for making informed selection decisions that ensure long-term reliability and performance. Cable gland seal materials must provide excellent compression set resistance, chemical compatibility, temperature stability, and weathering resistance – EPDM offers outstanding ozone and UV resistance for outdoor applications, Silicone provides exceptional temperature range from -60°C to +200°C for extreme conditions, while NBR delivers superior oil and fuel resistance for petroleum environments, with each material’s molecular structure determining its specific performance characteristics and optimal application areas.

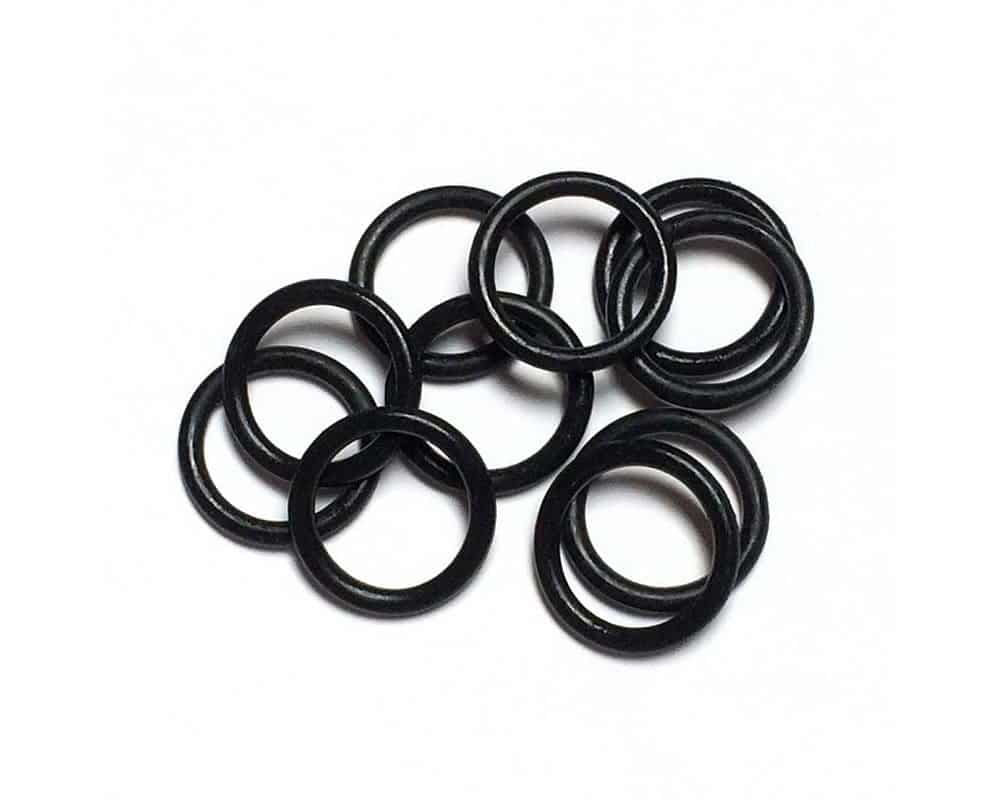

Material Structure and Performance
EPDM (Ethylene Propylene Diene Monomer) features a saturated polymer backbone that provides excellent resistance to ozone, UV radiation, and weathering, making it ideal for outdoor electrical installations and marine environments where long-term exposure stability is critical.
Silicone Rubber offers unique temperature stability through its silicon-oxygen backbone structure, maintaining flexibility and sealing properties across extreme temperature ranges while providing excellent electrical insulation characteristics for sensitive electronic applications.
NBR (Nitrile Butadiene Rubber) contains polar nitrile groups that provide strong resistance to oils, fuels, and petroleum-based chemicals, making it essential for automotive, industrial machinery, and fuel handling applications where hydrocarbon exposure is common.
Critical Performance Parameters
Compression Set Resistance4 measures how well seal materials maintain their original thickness after prolonged compression, with EPDM typically showing 15-25% compression set, Silicone 10-30%, and NBR 20-40% depending on formulation and operating conditions.
Temperature Range varies significantly between materials, with EPDM operating from -40°C to +120°C, Silicone from -60°C to +200°C, and NBR from -30°C to +100°C, directly impacting application suitability and long-term performance reliability.
Chemical Compatibility determines seal longevity in specific environments, with each material showing distinct resistance patterns to acids, bases, solvents, and other chemicals commonly encountered in industrial applications.
Michael Thompson, maintenance manager at Chevron’s Richmond Refinery in California, faced recurring cable gland failures in their crude oil processing units where standard EPDM seals were degrading rapidly due to hydrocarbon exposure. The failures caused moisture ingress into electrical panels, leading to equipment shutdowns and safety concerns. We recommended switching to our NBR seal cable glands specifically formulated for petroleum environments. After installation, the NBR seals showed no signs of degradation after 18 months of continuous exposure to crude oil vapors, eliminating the recurring maintenance issues and ensuring reliable electrical protection in this critical petrochemical application.
How Do EPDM, Silicone, and NBR Compare for Different Applications?
Comparing seal materials across different application scenarios helps identify the optimal choice for specific operating conditions and performance requirements. EPDM excels in outdoor weathering applications with superior UV and ozone resistance, Silicone dominates high-temperature processes and food-grade applications with exceptional thermal stability and FDA compliance, while NBR provides unmatched oil resistance for automotive and industrial machinery applications – understanding these comparative advantages enables proper material selection that maximizes seal life, minimizes maintenance costs, and ensures reliable environmental protection for cable gland installations across diverse operating conditions.
Application-Specific Performance Matrix
| Property | EPDM | Silicone | NBR |
|---|---|---|---|
| Temperature Range | -40°C to +120°C | -60°C to +200°C | -30°C to +100°C |
| UV Resistance | Excellent | Good | Poor |
| Ozone Resistance | Excellent | Excellent | Poor |
| Oil Resistance | Poor | Fair | Excellent |
| Weather Resistance | Excellent | Good | Fair |
| Cost | Low | High | Medium |
Industry-Specific Applications
Outdoor Electrical Installations benefit from EPDM’s exceptional weathering resistance, UV stability, and ozone protection, making it the preferred choice for utility companies, telecommunications, and solar installations where long-term outdoor exposure is inevitable.
High-Temperature Processes require Silicone’s superior thermal stability for applications in steel mills, glass manufacturing, automotive engines, and industrial ovens where conventional rubber materials would quickly degrade and fail.
Oil and Gas Operations demand NBR’s excellent hydrocarbon resistance for refineries, drilling platforms, fuel handling systems, and chemical processing plants where exposure to oils, fuels, and petroleum-based chemicals is constant.
Performance Trade-offs
EPDM Advantages include excellent weathering resistance, low cost, and good general-purpose performance, but limitations include poor oil resistance and moderate temperature range compared to specialized alternatives.
Silicone Benefits encompass extreme temperature tolerance, excellent electrical properties, and food-grade compliance, while drawbacks include higher cost, lower mechanical strength, and moderate chemical resistance to certain solvents.
NBR Strengths feature superior oil resistance, good mechanical properties, and moderate cost, but weaknesses include poor weathering resistance, limited temperature range, and degradation in ozone-rich environments.
Hassan Al-Rashid, project manager at Saudi Basic Industries Corporation (SABIC) in Jubail, needed cable glands for a new polyethylene plant operating at 180°C with exposure to various chemical vapors. Standard EPDM seals couldn’t handle the temperature, while NBR seals degraded from chemical exposure. We supplied our high-temperature Silicone seal cable glands rated for continuous operation at 200°C with excellent chemical inertness. The Silicone seals maintained perfect sealing integrity throughout the plant’s startup phase and continue providing reliable protection after two years of continuous high-temperature operation, ensuring safe electrical connections in this demanding petrochemical environment.
What Environmental Factors Should You Consider When Selecting Seals?
Environmental assessment is critical for seal material selection, as operating conditions directly impact seal performance, longevity, and reliability. Key environmental factors for seal selection include operating temperature ranges, chemical exposure types and concentrations, UV radiation levels, ozone presence, mechanical stress conditions, and moisture exposure patterns – systematic evaluation of these factors against material properties ensures optimal seal performance, with temperature being the primary selection criterion, chemical compatibility the secondary consideration, and weathering resistance crucial for outdoor applications, while mechanical factors and cost considerations provide final optimization parameters.
Temperature Considerations
Continuous Operating Temperature represents the most critical selection factor, as exceeding material temperature limits causes rapid degradation, hardening, and seal failure that compromises cable gland integrity and environmental protection.
Temperature Cycling creates thermal stress through expansion and contraction cycles that can cause seal cracking, particularly in materials with poor low-temperature flexibility or high-temperature stability limitations.
Peak Temperature Exposure during abnormal conditions or process upsets must be considered, as brief exposure to extreme temperatures can cause permanent seal damage even if normal operating temperatures are within material limits.
Chemical Environment Assessment
Primary Chemical Exposure includes process chemicals, cleaning agents, and atmospheric contaminants that directly contact seal surfaces, requiring detailed compatibility analysis to prevent chemical attack and degradation.
Secondary Chemical Exposure encompasses vapors, mists, and indirect contact chemicals that may not be immediately obvious but can cause long-term seal degradation through absorption and swelling.
Concentration and Contact Time significantly impact chemical compatibility, as materials may resist dilute solutions but fail when exposed to concentrated chemicals or extended contact periods typical in industrial environments.
Physical Environment Factors
UV Radiation Exposure in outdoor applications causes polymer chain scission and surface degradation, particularly affecting NBR materials while EPDM and Silicone show superior UV resistance for long-term outdoor service.
Ozone Levels in urban and industrial environments cause cracking and surface deterioration in unsaturated rubber materials, making EPDM and Silicone preferred choices for high-ozone environments.
Mechanical Stress from vibration, pressure cycling, and installation forces requires consideration of material hardness, tensile strength, and fatigue resistance to ensure long-term sealing integrity.
How Do You Match Seal Materials to Specific Industry Requirements?
Industry-specific requirements drive seal material selection based on regulatory standards, operating conditions, and performance expectations unique to each sector. Match seal materials to industry requirements by understanding sector-specific regulations like FDA compliance for food processing, ATEX requirements5 for hazardous areas, marine certifications for offshore applications, and automotive standards for vehicle systems – each industry has distinct performance priorities with food processing requiring FDA-approved Silicone, chemical plants needing NBR for hydrocarbon resistance, marine applications demanding EPDM for saltwater exposure, and general industrial uses benefiting from cost-effective EPDM solutions that meet basic environmental protection requirements.
Food and Pharmaceutical Industries
FDA Compliance requires food-grade Silicone materials that meet strict purity standards and don’t impart taste, odor, or contamination to food products during processing and packaging operations.
Sanitization Resistance demands materials that withstand repeated exposure to cleaning chemicals, steam sterilization, and high-temperature wash-down procedures without degradation or contamination risk.
Temperature Requirements in food processing often involve both high-temperature cooking processes and low-temperature storage, making Silicone’s wide temperature range essential for reliable sealing performance.
Chemical and Petrochemical Sectors
Chemical Compatibility requires detailed analysis of process chemicals, cleaning solvents, and maintenance fluids to select materials that resist swelling, cracking, and degradation throughout equipment service life.
Safety Standards including ATEX compliance for explosive atmospheres demand materials that maintain sealing integrity under extreme conditions while preventing ignition sources through proper electrical isolation.
Process Reliability in continuous operations requires seal materials with proven long-term stability and predictable performance characteristics that minimize unplanned maintenance and production interruptions.
Marine and Offshore Applications
Saltwater Resistance requires materials that resist corrosion, biological growth, and osmotic effects from continuous seawater exposure in harsh marine environments.
Weather Extremes including UV radiation, temperature cycling, and storm conditions demand robust materials with proven outdoor durability and long-term weathering resistance.
Regulatory Compliance with marine certifications and classification society requirements ensures materials meet stringent safety and performance standards for offshore installations.
| Industry | Primary Material | Key Requirements | Alternative Options |
|---|---|---|---|
| Food Processing | Silicone | FDA Compliance, Temperature Range | EPDM (Non-contact) |
| Chemical Plants | NBR | Chemical Resistance, Safety | EPDM (Non-hydrocarbon) |
| Marine/Offshore | EPDM | Weather Resistance, Saltwater | Silicone (High-temp) |
| General Industrial | EPDM | Cost-effective, Versatile | NBR (Oil exposure) |
What Are the Cost and Performance Trade-offs Between Different Materials?
Understanding cost-performance relationships helps optimize seal material selection for specific budget constraints and performance requirements. Cost and performance trade-offs vary significantly between materials – EPDM offers the lowest initial cost with good general performance but limited chemical resistance, Silicone provides the highest performance in extreme conditions at premium pricing, while NBR delivers specialized oil resistance at moderate cost with limited weathering capability – total cost of ownership includes initial material cost, installation expenses, maintenance frequency, and replacement intervals, making proper selection crucial for long-term economic optimization and operational reliability.
Initial Cost Analysis
Material Pricing shows EPDM as the most economical option at baseline cost, NBR at 1.5-2x EPDM cost, and Silicone at 3-5x EPDM cost, directly impacting project budgets and material selection decisions.
Volume Considerations affect pricing significantly, with larger quantities reducing per-unit costs and making premium materials more economically viable for major installations or standardization programs.
Availability and Lead Times influence total project costs, as specialty materials may require longer procurement periods and higher inventory costs compared to standard EPDM materials.
Lifecycle Cost Evaluation
Replacement Frequency varies dramatically between applications, with properly selected materials lasting 5-10 years while incorrect choices may require annual replacement, significantly impacting total ownership costs.
Maintenance Costs include labor, downtime, and replacement parts, often exceeding initial material costs over equipment lifetime, making proper selection crucial for economic optimization.
Failure Consequences in critical applications can cost thousands in downtime and repairs, making premium materials economically justified when failure risks are high or consequences severe.
Performance Value Optimization
Application Matching ensures materials are neither over-specified (wasting money) nor under-specified (risking failure), requiring careful analysis of actual operating conditions versus material capabilities.
Standardization Benefits from using fewer material types can reduce inventory costs, simplify maintenance procedures, and improve purchasing power while maintaining adequate performance across applications.
Future Considerations including process changes, environmental regulations, and technology upgrades should influence material selection to avoid premature obsolescence or compatibility issues.
Conclusion
Selecting the right seal material for your cable gland is a critical decision that impacts safety, reliability, and total cost of ownership. EPDM provides excellent weathering resistance for outdoor applications, Silicone offers superior temperature performance for extreme conditions, and NBR delivers essential oil resistance for petroleum environments. Understanding your specific operating conditions, industry requirements, and cost constraints enables optimal material selection that ensures long-term sealing performance. At Bepto, we provide comprehensive technical support and high-quality cable glands with the right seal materials for your specific applications, ensuring reliable environmental protection and optimal performance throughout your equipment’s service life! 😉
FAQs About Cable Gland Seal Materials
Q: Can I use EPDM seals in oil and gas applications?
A: EPDM seals are not recommended for direct oil and gas exposure as they have poor hydrocarbon resistance and will swell and degrade rapidly. Use NBR seals for oil environments or Silicone for high-temperature gas applications where oil contact is minimal.
Q: What’s the temperature limit for NBR cable gland seals?
A: NBR seals typically operate from -30°C to +100°C, with some high-temperature formulations reaching +120°C. For applications above 100°C, consider Silicone seals which can handle temperatures up to +200°C with better long-term stability.
Q: Are Silicone seals worth the extra cost for outdoor applications?
A: For standard outdoor applications, EPDM seals offer better value with excellent UV and weather resistance at lower cost. Silicone is justified when extreme temperatures, food contact, or superior electrical properties are required, despite the 3-5x higher cost.
Q: How long do different seal materials typically last?
A: Properly selected seals last 5-10 years in appropriate applications. EPDM seals excel in outdoor weathering, NBR seals perform well in oil environments for 3-7 years, while Silicone seals can last 10+ years in extreme temperature applications when properly specified.
Q: Can I mix different seal materials in the same installation?
A: Yes, you can use different seal materials based on specific environmental conditions at each location. However, standardization on one material type often provides inventory and maintenance benefits unless environmental conditions specifically require different materials for optimal performance.
-
