A Guide to Selecting Glands for Mining and Tunneling Applications

Introduction

Mining and tunneling operations present some of the harshest environments imaginable for electrical installations—constant vibration, explosive dust, water ingress, corrosive chemicals, and extreme mechanical stress. Choose the wrong cable gland, and you’re not just risking equipment failure; you’re potentially endangering lives and facing catastrophic downtime costs that can exceed $100,000 per day.

Selecting cable glands for mining and tunneling applications requires prioritizing explosion-proof certifications (ATEX¹/IECEx), armored cable compatibility, IP68² sealing against water and dust ingress, mechanical durability for vibration resistance, and corrosion-resistant materials like brass or stainless steel. These specialized glands must meet stringent safety standards while withstanding the punishing conditions found hundreds of meters underground.

I’m Samuel, Sales Director at Bepto Connector, and over my 10+ years in this industry, I’ve supplied cable glands for mining projects from Australian coal mines to Middle Eastern tunnel excavations. Last year, a mining contractor from South Africa contacted us after a competitor’s cable glands failed within six months, causing a conveyor system shutdown that cost them three days of production. The issue? They’d selected standard industrial glands instead of mining-rated ones. Let me guide you through the critical selection criteria that separate reliable solutions from costly mistakes. ⛏️

Table of Contents

• What Makes Mining and Tunneling Environments Unique for Cable Gland Selection?
• Which Certifications and Standards Are Mandatory for Mining Cable Glands?
• How Do You Select the Right Cable Gland Type for Underground Applications?
• What Material Considerations Are Critical for Mining Environments?
• How Do You Ensure Long-Term Reliability in Harsh Underground Conditions?
• Conclusion
• FAQs About Cable Glands for Mining and Tunneling

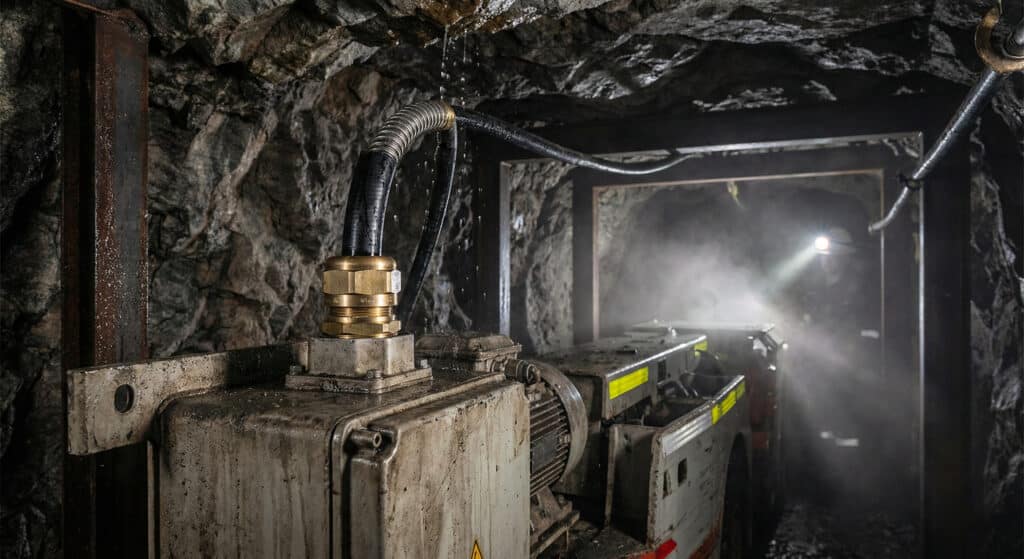

What Makes Mining and Tunneling Environments Unique for Cable Gland Selection?

Understanding the specific challenges of underground operations is the foundation of proper cable gland selection.

Mining and tunneling environments uniquely combine explosive atmospheres (methane, coal dust), constant water exposure, severe mechanical vibration, corrosive chemicals, extreme temperature fluctuations, and zero tolerance for failure—conditions that simultaneously stress every aspect of cable gland performance. Standard industrial cable glands simply cannot survive these combined stressors.

The Six Critical Environmental Factors

1. Explosive Atmosphere Risk

Underground mining operations frequently encounter flammable gases (methane, hydrogen sulfide) and combustible dust (coal, metal particles). A single spark from faulty electrical connections can trigger catastrophic explosions. This is why explosion-proof cable glands aren’t optional—they’re legally mandated in most jurisdictions.

2. Water and Moisture Ingress

Groundwater seepage, drilling operations, and dust suppression systems create constantly wet conditions. Cable glands must maintain IP68 ratings under continuous submersion, not just temporary exposure. I’ve seen installations where water pressure at 50+ meters depth forced moisture past inadequate seals within weeks.

3. Mechanical Stress and Vibration

Heavy machinery—drills, conveyors, crushers, excavators—generates relentless vibration. Cable glands experience constant movement that can loosen connections, crack housings, or degrade seals. Mining-grade glands require reinforced construction and vibration-resistant locking mechanisms.

4. Corrosive Chemical Exposure

Sulfuric acid from sulfide minerals, alkaline cement dust, diesel exhaust, and chemical additives in drilling fluids attack standard materials. Brass and stainless steel with proper sealing materials (Viton, EPDM) are essential for longevity.

5. Extreme Temperature Variations

Deep mines can reach 50°C+ from geothermal heat, while surface installations in cold climates face -40°C temperatures. Cable glands must maintain sealing integrity and mechanical strength across this entire range.

6. Armored Cable Requirements

Mining cables typically feature steel wire armor (SWA) or braided armor for mechanical protection. Cable glands must properly terminate this armor to maintain electrical continuity, provide strain relief, and ensure explosion-proof integrity.

Real-World Consequences of Poor Selection

Marcus, a maintenance supervisor at a copper mine in Arizona, learned this lesson the hard way. His team installed standard IP66-rated nylon cable glands on ventilation fan motors 300 meters underground. Within four months, moisture ingress caused motor failures, and the vibration from the fans had loosened several gland connections. The replacement project cost $45,000 and required a full weekend shutdown. When we supplied ATEX-certified brass cable glands with armored cable termination and IP68 ratings, those installations have now run flawlessly for over three years. 💰

Key Takeaway for Buyers

Never compromise on specifications for mining applications. The cost difference between a standard cable gland ($3-5) and a mining-rated explosion-proof gland ($15-25) is negligible compared to the cost of failure, which includes:

• Equipment damage: $10,000-$100,000+
• Production downtime: $50,000-$500,000 per day
• Safety incidents: Potentially catastrophic
• Regulatory penalties: $10,000-$1,000,000+
• Reputation damage: Immeasurable

Which Certifications and Standards Are Mandatory for Mining Cable Glands?

Regulatory compliance isn’t bureaucracy—it’s the minimum safety threshold that protects lives and operations.

Mining cable glands must carry ATEX (Europe), IECEx (International), or MSHA³ (USA) certifications for explosive atmospheres, along with IP68 ingress protection ratings, relevant national standards (AS/NZS for Australia, GB for China), and material certifications proving corrosion resistance and mechanical strength. Operating without proper certifications exposes you to legal liability and insurance voidance.

Essential Certification Framework

ATEX Certification (Europe and Globally Recognized)

ATEX (ATmosphères EXplosibles) is the European standard for equipment used in explosive atmospheres:

• Zone Classification:
    – Zone 0/20: Explosive atmosphere present continuously (rare in mining)
    – Zone 1/21: Explosive atmosphere likely during normal operation (common in coal mines)
    – Zone 2/22: Explosive atmosphere unlikely, but possible (most mining areas)

• Equipment Categories:
    – Category 1: Very high protection (Zone 0/20)
    – Category 2: High protection (Zone 1/21) – most mining applications
    – Category 3: Normal protection (Zone 2/22)

• Protection Methods:
    – “d” – Flameproof enclosure (most common for cable glands)
    – “e” – Increased safety
    – “i” – Intrinsic safety

IECEx Certification (International)

The IECEx system provides international recognition based on IEC standards:

• Accepted in 35+ countries including Australia, Canada, South Africa
• Often required alongside national certifications
• Facilitates international equipment procurement
• Equivalent protection levels to ATEX

MSHA Approval (United States)

The Mine Safety and Health Administration requires specific approvals for US mining operations:

• More stringent than general industrial standards
• Covers both equipment and installation practices
• Required for coal and metal/non-metal mines
• Non-compliance results in immediate shutdown orders

IP Rating Requirements

For mining applications, minimum ratings are:

• IP68: Mandatory for underground installations (continuous submersion protection)
• IP67: Acceptable only for above-ground, protected locations
• IP66: Insufficient for mining environments

Regional Standards Compliance

Region	Required Standards	Key Requirements
Europe	ATEX, IEC 60079	CE marking, EU Declaration of Conformity
Australia	IECEx, AS/NZS 60079	Certificate of Conformity, test reports
USA	MSHA, NEC 500/505	MSHA approval number, UL/CSA listing
Canada	CSA C22.1, IECEx	CSA certification mark
South Africa	SANS 60079, IECEx	SABS approval, DMR acceptance
China	GB 3836, Ex certification	CCC marking, CQST certification

Material and Performance Certifications

Beyond explosion protection, verify:

• ISO 9001: Quality management system certification
• Material Certificates: Chemical composition and mechanical properties
• Salt Spray Testing: ASTM B117⁴ (minimum 500 hours for brass, 1000+ for stainless steel)
• Vibration Testing: IEC 60068-2-6 (mining equipment typically requires 10-55Hz)
• Temperature Cycling: -40°C to +100°C minimum range

Verification Process for Buyers

When evaluating suppliers, demand:

1. Original certification documents (not just copies)
2. Certificate numbers you can verify with certification bodies
3. Test reports showing actual performance data
4. Traceability documentation linking products to certificates
5. Installation instructions approved by certification bodies

At Bepto, we provide complete certification packages with every mining cable gland order, including ATEX certificates, IECEx documentation, material test reports, and installation guidelines. Our products carry genuine certifications from TUV, CQST, and other recognized bodies—never trust suppliers who can’t provide verifiable documentation. 📋

How Do You Select the Right Cable Gland Type for Underground Applications?

Different mining applications demand specific cable gland designs—one size definitely doesn’t fit all.

Select cable gland types based on cable construction (armored vs. unarmored), application location (fixed equipment vs. mobile machinery), environmental severity (wet vs. dry areas), and electrical requirements (power vs. control cables). The four primary types for mining are armored cable glands, explosion-proof glands, EMC shielded glands, and double-seal glands.

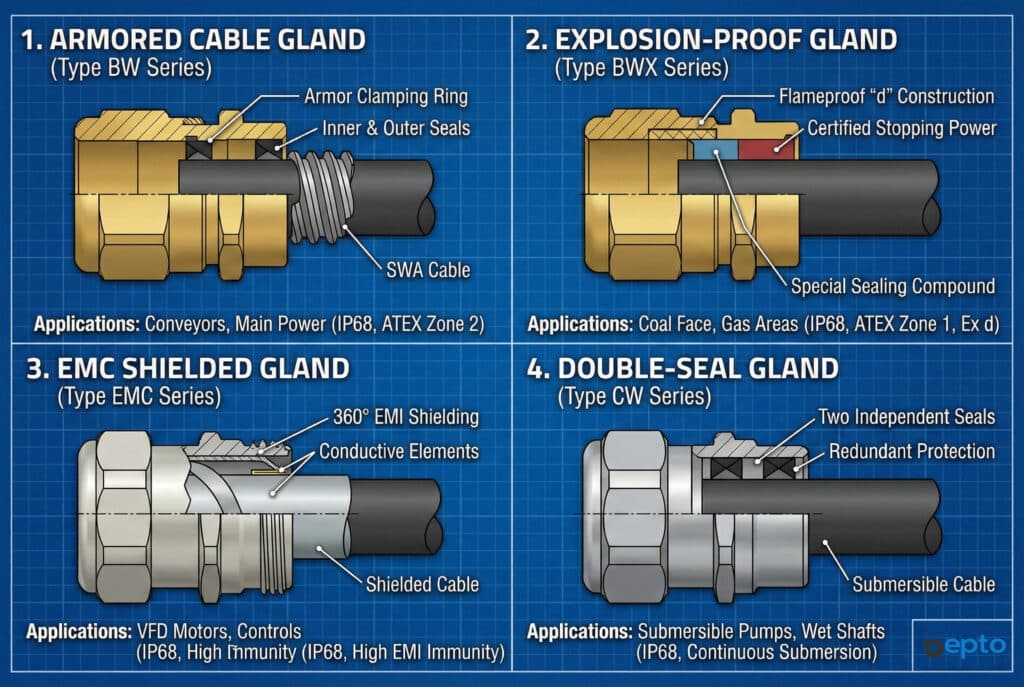

Type 1: Armored Cable Glands (Most Common)

When to Use: Any installation with steel wire armored (SWA) or braided armor cables, which represents 80%+ of mining power cables.

Key Features:

• Inner seal on cable core
• Armor clamping ring for mechanical termination
• Outer seal on cable sheath
• Earth continuity through armor termination

Bepto Options:

• Brass armored glands (BW series) for general mining
• Stainless steel armored glands (CW series) for extreme corrosion
• Sizes from M12 to M80 covering 3mm-60mm cable ranges

Application Examples:

• Conveyor motor connections
• Pump installations
• Lighting circuits
• Main power distribution

Type 2: Explosion-Proof Cable Glands

When to Use: Zone 1/21 and Zone 2/22 classified areas where explosive atmospheres exist.

Key Features:

• Flameproof “d” construction
• Certified stopping power (prevents flame transmission)
• Reinforced threads and locking mechanisms
• Special sealing compounds for gas-tight integrity

Critical Specifications:

• Must match zone classification (Ex d IIC for gas, Ex d IIIC for dust)
• Temperature class rating (T1-T6, typically T4 for mining)
• Ingress protection minimum IP66, preferably IP68

Application Examples:

• Coal face equipment
• Gas monitoring systems in methane zones
• Equipment near fuel storage
• Ventilation control systems

Type 3: EMC Cable Glands (Electromagnetic Compatibility)

When to Use: Installations with sensitive control systems, variable frequency drives (VFDs), or communication cables.

Key Features:

• 360-degree EMI shielding
• Conductive sealing elements
• Armor/shield termination with low impedance
• Prevents electromagnetic interference

Why Important in Mining:

• VFDs on pumps and conveyors generate high EMI
• Communication systems require interference-free operation
• Prevents false sensor readings
• Protects PLC and automation systems

Application Examples:

• VFD motor connections
• Instrumentation and control cables
• Communication network infrastructure
• Proximity sensor installations

Type 4: Double-Seal Cable Glands

When to Use: Extreme water ingress risk, high-pressure water environments, or critical safety systems.

Key Features:

• Two independent sealing barriers
• Redundant protection against moisture
• Often combined with armored cable termination
• Enhanced IP68 performance

Application Examples:

• Submersible pump cables
• Underwater equipment in flooded shafts
• High-pressure water jet systems
• Critical ventilation fan motors

Selection Decision Matrix

Application	Cable Type	Environment	Recommended Gland Type	Minimum Rating
Main power distribution	SWA armored	Underground, wet	Brass armored + Ex d	IP68, ATEX Zone 2
Coal face equipment	SWA armored	Explosive dust	SS armored + Ex d	IP68, ATEX Zone 1
Pump installations	SWA armored	Submerged	Double-seal armored	IP68, continuous submersion
VFD motor cables	Screened SWA	EMI-sensitive	EMC armored gland	IP68, 360° shielding
Control panels	Unarmored multi-core	Indoor, dry	Standard brass	IP66, Ex e
Mobile equipment	Flexible armored	High vibration	Reinforced armored	IP68, vibration-rated

Sizing Considerations

Critical Measurements:

1. Cable outer diameter (measure actual cable, add 10% tolerance)
2. Armor wire diameter (affects clamping ring selection)
3. Thread size (must match enclosure entry)
4. Thread type (metric M, PG, NPT, or G/BSP)

Common Sizing Mistakes:

• Using nominal cable size instead of measuring actual OD
• Forgetting to account for cable sheath thickness variations
• Selecting thread size based on cable size rather than enclosure entry
• Not verifying armor compatibility with clamping mechanism

Bepto’s Mining Cable Gland Range

We offer comprehensive solutions for every mining application:

• BW Series: Brass armored cable glands, ATEX Zone 2, IP68
• BWX Series: Explosion-proof brass glands, ATEX Zone 1, Ex d IIC
• CW Series: Stainless steel armored glands, marine-grade 316L
• EMC Series: EMI shielded cable glands for VFD applications
• Custom Solutions: Engineered glands for unique mining challenges

All manufactured in our ISO9001 and IATF16949 certified facilities with full traceability and certification documentation. 🔧

What Material Considerations Are Critical for Mining Environments?

Material selection directly determines service life—choose wrong, and you’ll be replacing cable glands annually instead of after decades.

Critical material considerations for mining cable glands include corrosion resistance (brass vs. stainless steel vs. nickel-plated brass), sealing element compatibility (NBR, EPDM, Viton for chemical resistance), mechanical strength for vibration and impact, and galvanic compatibility⁵ to prevent accelerated corrosion. Environmental chemistry analysis should guide material selection.

Gland Body Material Selection

Brass (Most Common Choice)

Advantages:

• Excellent machinability for precise threads
• Good corrosion resistance in most mining environments
• Cost-effective for large installations
• Superior electrical conductivity for grounding
• Nickel plating available for enhanced protection

Limitations:

• Vulnerable to ammonia and sulfide corrosion
• Can dezincify in acidic water
• Not suitable for highly corrosive chemical exposure

Best Applications:

• General underground mining (coal, metal ores)
• Dry or moderately wet environments
• Standard temperature ranges (-20°C to +80°C)
• Cost-sensitive large-scale projects

Stainless Steel 316L (Premium Option)

Advantages:

• Superior corrosion resistance (marine-grade)
• Excellent mechanical strength
• Withstands acidic and alkaline environments
• Temperature range -60°C to +200°C
• Longest service life (20+ years typical)

Limitations:

• Higher cost (2-3x brass)
• More difficult machining (affects precision)
• Can gall during installation if not properly lubricated

Best Applications:

• Coastal mining operations (salt exposure)
• Chemical processing areas
• Geothermal mining (high temperature)
• Sulfide-rich ore environments
• Critical safety systems requiring maximum reliability

Nickel-Plated Brass (Middle Ground)

Advantages:

• Enhanced corrosion resistance vs. standard brass
• Maintains brass machinability and cost benefits
• Improved appearance and longevity
• Good for mildly corrosive environments

Limitations:

• Plating can chip or wear in high-abrasion areas
• Not suitable for extreme chemical exposure
• Requires quality plating (minimum 5 microns thickness)

Best Applications:

• Upgrade from standard brass without stainless steel cost
• Moderate corrosion environments
• Installations requiring enhanced aesthetics
• Projects with mid-range budget constraints

Sealing Element Material Selection

The elastomeric sealing components are often the first failure point—material compatibility is critical.

NBR (Nitrile Rubber) – Standard Choice

• Temperature Range: -40°C to +100°C
• Chemical Resistance: Good for mineral oils, hydraulic fluids, diesel
• Limitations: Poor resistance to ozone, UV, strong acids/bases
• Mining Applications: General power cables, indoor installations, oil-lubricated equipment

EPDM (Ethylene Propylene) – Weather Resistant

• Temperature Range: -50°C to +150°C
• Chemical Resistance: Excellent for water, steam, acids, alkalis; poor for oils
• Advantages: Superior ozone and UV resistance, long service life
• Mining Applications: Outdoor installations, water pump cables, alkaline environments (cement dust)

Viton (FKM) – Chemical Resistant

• Temperature Range: -20°C to +200°C
• Chemical Resistance: Excellent for oils, fuels, solvents, acids
• Advantages: Highest chemical resistance, extreme temperature capability
• Limitations: Higher cost, less flexible at low temperatures
• Mining Applications: Chemical processing areas, high-temperature zones, fuel handling equipment

Silicone – Extreme Temperature

• Temperature Range: -60°C to +230°C
• Chemical Resistance: Moderate (good for water, weak acids)
• Advantages: Maintains flexibility at extreme temperatures
• Limitations: Poor mechanical strength, limited chemical resistance
• Mining Applications: Extreme temperature zones, food-grade requirements

Material Compatibility Matrix

Environment	Gland Body	Sealing Material	Expected Service Life
General underground mining	Brass	NBR	5-10 years
Wet, alkaline (cement dust)	Nickel-plated brass	EPDM	8-12 years
Coastal/marine mining	Stainless steel 316L	EPDM	15-20 years
Chemical processing	Stainless steel 316L	Viton	10-15 years
High temperature (>80°C)	Stainless steel	Silicone or Viton	8-12 years
Sulfide-rich ore	Stainless steel 316L	EPDM	12-18 years
Oil/diesel exposure	Brass or SS	NBR or Viton	7-12 years

Galvanic Corrosion Prevention

When different metals contact in the presence of an electrolyte (water), galvanic corrosion accelerates:

Problematic Combinations:

• Aluminum enclosures + brass cable glands (brass corrodes aluminum)
• Stainless steel glands + carbon steel armor (steel corrodes rapidly)
• Zinc-plated components + brass (zinc sacrifices itself)

Solutions:

• Use isolating washers between dissimilar metals
• Apply anti-corrosion compounds at interfaces
• Match gland material to enclosure material when possible
• Ensure proper grounding to minimize current flow

Real-World Material Failure Case

I worked with Yuki, an engineering manager at a gold mine in Hokkaido, Japan, who experienced premature cable gland failures after just 18 months. Investigation revealed the mine’s groundwater had unusually high sulfide content, which aggressively attacked their standard brass cable glands. We replaced them with stainless steel 316L glands with Viton seals, and those installations have now operated flawlessly for over five years in the same harsh conditions. The lesson? Environmental analysis before material selection isn’t optional—it’s essential. 🔬

Quality Verification for Materials

When purchasing, verify:

• Material certificates showing actual composition (not just “brass” or “stainless steel”)
• Hardness testing results (brass should be 80-120 HB, SS 150-200 HB)
• Salt spray test reports (minimum 500 hours for brass, 1000+ for SS)
• Sealing material specifications with shore hardness and chemical compatibility data
• Plating thickness measurements (minimum 5 microns for nickel plating)

At Bepto, every batch of mining cable glands includes material test reports from our in-house laboratory and third-party verification. We don’t just claim quality—we prove it with documentation. 📊

How Do You Ensure Long-Term Reliability in Harsh Underground Conditions?

Proper selection is only half the battle—installation quality and maintenance practices determine actual service life.

Ensure long-term reliability through proper installation procedures (correct torque, cable preparation, armor termination), regular inspection schedules (quarterly minimum for critical systems), environmental monitoring (corrosion, moisture, temperature), spare parts inventory, and documentation of all installations for maintenance tracking. A systematic approach prevents failures before they occur.

Installation Best Practices

Step 1: Cable Preparation

• Strip cable sheath to manufacturer’s specifications (typically 30-50mm)
• Clean armor wires thoroughly—remove all debris, oil, and oxidation
• Inspect for damage—any nicks or cuts require cable replacement
• Measure actual diameter—verify gland size compatibility before installation

Step 2: Gland Assembly

• Follow sequence precisely—incorrect assembly order causes seal failure
• Lubricate threads with anti-seize compound (prevents galling and eases future removal)
• Align armor correctly—ensure even distribution around circumference
• Tighten to specified torque—use calibrated torque wrench, never impact tools

Critical Torque Values (typical ranges):

• M12-M20 brass glands: 8-12 Nm
• M25-M32 brass glands: 15-20 Nm
• M40-M50 brass glands: 25-35 Nm
• Stainless steel: Add 20% to brass values
• Always verify manufacturer specifications

Step 3: Verification Testing

• Visual inspection—check for gaps, misalignment, damaged components
• Pull test—apply 50N force to verify mechanical security
• Continuity test—verify armor grounding (should be <0.1 ohm resistance)
• IP rating verification—for critical installations, consider pressure testing

Maintenance and Inspection Protocol

Quarterly Inspections (minimum for mining environments):

✓ Visual examination for corrosion, cracks, or damage
✓ Tightness check—verify locknut hasn’t loosened from vibration
✓ Seal integrity—look for moisture, discoloration, or material degradation
✓ Cable condition—check for abrasion, cuts, or excessive movement
✓ Grounding continuity—test armor earth connection
✓ Documentation—record findings and any corrective actions

Annual Deep Inspections:

• Disassemble selected glands for internal inspection
• Replace sealing elements showing wear (preventive replacement)
• Apply fresh anti-corrosion compounds
• Update maintenance records and failure analysis data

Condition-Based Monitoring:

For critical systems, implement:

• Thermal imaging—detect hot spots indicating poor connections
• Vibration analysis—identify loosening before failure
• Moisture sensors—early warning of seal degradation
• Corrosion monitoring—track environmental aggressiveness

Environmental Control Measures

Corrosion Prevention:

• Apply protective coatings to exposed metal surfaces
• Use sacrificial anodes in highly corrosive areas
• Maintain proper ventilation to reduce moisture accumulation
• Control chemical exposure through proper drainage and containment

Vibration Management:

• Use vibration dampening mounts for equipment
• Install cable strain relief systems
• Route cables to minimize movement
• Select reinforced cable glands for high-vibration areas

Temperature Management:

• Provide adequate ventilation for heat dissipation
• Use heat shields where cables pass near hot equipment
• Select temperature-appropriate sealing materials
• Monitor cable loading to prevent overheating

Spare Parts Strategy

Recommended Inventory (for 100+ cable gland installation):

• 10% spare complete glands (mixed sizes matching installation profile)
• 20% spare sealing elements (most common failure component)
• 15% spare locknuts and washers
• Complete set of specialized tools (torque wrenches, cable strippers)
• Installation materials (anti-seize, cleaning supplies, labels)

Supplier Relationship:

• Establish preferred supplier with documented lead times
• Negotiate framework agreements for emergency supply
• Maintain technical support contact for troubleshooting
• Regular supplier audits to ensure consistent quality

Documentation and Traceability

Installation Records should include:

• Cable gland type, size, and serial number (if available)
• Installation date and technician name
• Torque values applied
• Cable identification and specifications
• Location reference (grid coordinates, equipment tag)
• Initial test results (continuity, IP rating verification)
• Photos of completed installation

Maintenance Logs should track:

• Inspection dates and findings
• Repairs or replacements performed
• Parts used (with batch/lot numbers)
• Test results over time
• Failure analysis for any incidents

Failure Analysis and Continuous Improvement

When failures occur:

1. Document thoroughly—photos, measurements, environmental conditions
2. Analyze root cause—material failure, installation error, environmental factor
3. Implement corrective action—address systemic issues, not just symptoms
4. Update procedures—incorporate lessons learned
5. Communicate findings—share knowledge across maintenance teams

Bepto’s Support for Long-Term Reliability

We don’t just sell cable glands—we partner for success:

• Technical training for installation teams (on-site or remote)
• Installation guidelines specific to mining applications
• Troubleshooting support via phone, email, or video call
• Failure analysis assistance when issues occur
• Spare parts programs with guaranteed availability
• Regular quality audits to ensure consistent performance

Visit www.chinacableglands.com for our mining application guide, installation videos, and technical support resources. 🛠️

Conclusion

Selecting cable glands for mining and tunneling applications demands rigorous attention to explosion-proof certifications, material compatibility, environmental conditions, and long-term reliability factors. The harsh realities of underground operations—explosive atmospheres, constant moisture, severe vibration, and corrosive chemicals—require specialized solutions that standard industrial cable glands simply cannot provide. By prioritizing ATEX/IECEx certifications, choosing appropriate materials (brass for general use, stainless steel for extreme conditions), selecting the correct gland type (armored, explosion-proof, EMC, or double-seal), and implementing proper installation and maintenance practices, you protect both personnel safety and operational continuity.

At Bepto Connector, we’ve supplied mining-grade cable glands for projects ranging from Australian coal mines to Middle Eastern tunnel excavations, always with complete certification documentation, material traceability, and technical support. Don’t compromise on quality in environments where failure isn’t just expensive—it’s potentially catastrophic. Choose certified, proven solutions from manufacturers who understand mining’s unique demands.

FAQs About Cable Glands for Mining and Tunneling

1. Understand the European Union directive describing what equipment and work space is allowed in an environment with an explosive atmosphere. ↩

2. Learn the specific requirements for Ingress Protection rating 68, indicating protection against long periods of immersion under pressure. ↩

3. Visit the official agency ensuring the safety and health of miners in the United States through enforcement and training. ↩

4. Review the standard practice for operating salt spray (fog) apparatus used to test corrosion resistance of materials. ↩

5. Learn about the electrochemical interaction between dissimilar metals that accelerates corrosion in the presence of an electrolyte. ↩
