MG Series EMC Cable Gland for Industrial Automation

The MG Series EMC Cable Gland is engineered for high-performance industrial systems. It offers robust strain relief and protects against signal disruption from electromagnetic noise.

Technical Parameter

Product Type: MG Series EMC Shielding Cable Gland
Body Material: Nickel-Plated Brass, Stainless Steel (304, 316L)
Claw: Nylon (PA66)
Seal & O-Ring: EPDM Rubber (Custom options available)
Protection Rating: IP68 – 10 Bar
Static Temperature: -40°C to 100°C (short term to 120°C)
Dynamic Temperature: -20°C to 80°C (short term to 100°C)
Thread Types: Metric, PG, G(PF/BSP), NPT
Function: EMI/RFI Shielding, Strain Relief, Waterproof

Key Features

360° EMI Shielding: Features a special contact spring/insert that provides reliable, low-resistance 360-degree contact with the cable’s shield, effectively protecting against electromagnetic interference.
IP68-10 Bar Waterproof: Delivers the highest level of certified protection against dust and high-pressure water, ensuring connection integrity in harsh environments.
High Strain Relief: The special design of the clamping claws and seal provides exceptional gripping force, securely holding the cable against strong pulling forces.
Premium Material Options: Available in robust Nickel-Plated Brass or high-grade Stainless Steel (304/316L) for superior corrosion resistance.
Full Range of Threads: Available in Metric, PG, G(PF), and NPT threads to meet diverse international equipment requirements.
Broad Chemical Resistance: Resistant to salt water, weak acids, alcohol, oil, grease, and common solvents.

Metric Thread E Type M Series
Code	Thread MG	(mm) Cable range	(mm) Thread O.D	(mm) Mounting hole diameter	GL(mm) Thread length GL	(mm) Spanner size
E.M12A-EMC	M 12X1.5	3-5.3	12	12-12.3	8	17/17
E.M12B-EMC	M 12X1.5	4.5-7.8	12	12-12.3	8	17/17
E.M16A-EMC	M16X1.5	4-7	16	16-16.3	9	22/22
E.M16B-EMC	M16X1.5	6-10	16	16-16.3	9	22/22
E.M20A-EMC	M20X1.5	5-8.8	20	20-20.3	9.5	24/24
E.M20B-EMC		7-12	20	20-20.3	9.5	24/24
E.M20C-EMC		9-14	20	20-20.3	9.5	26/26
E.M25A-EMC	M25X1.5	12-16	25	25-25.4	12	32/32
E.M25B-EMC	M25X1.5	14-18	25	25-25.4	12	32/32
E.M32A-EMC	M32X1.5	16-22	32	32-32.4	12.5	41/41
E.M32B-EMC	M32X1.5	18-25	32	32-32.4	12.5	41/41
E.M40A-EMC	M40X1.5	21-25	40	40-40.4	15	50/50
E.M40B-EMC	M40X1.5	24-30	40	40-40.4	15	50/50
E.M50A-EMC	M50X1.5	26-32	50	50-50.4	15	60/60
E.M50B-EMC	M50X1.5	31-41	50	50-50.4	15	60/60
E.M63A-EMC	M63X1.5	40-46	63	63-63.4	15	73/73
E.M63B-EMC	M63X1.5	44-51	63	63-63.4	15	73/73
E.M75A-EMC	M75X1.5	50-56	75	75-75.6	15	85/85
E.M75B-EMC	M75X1.5	56-66	75	75-75.6	15	85/85
E.M90A-EMC	M90X1.5	58-68	90	90-91	20	102/102
E.M90B-EMC	M90X1.5	66-77	90	90-91	20	102/102
E.M100A-EMC	M100X1.5	58-68	100	100-101	25	116/116
E.M100B-EMC	M100X1.5	66-77	100	100-101	25	116/116

Metric Thread E Type PG Series
Code	Thread MG	(mm) Cable range	(mm) Thread O.D	(mm) Mounting hole diameter	GL(mm) Thread length GL	(mm) Spanner size
E.PG7A-EMC	PG7-EMC	3-5.3	12.5	12.5-12.8	8	17/17
E.PG7B-EMC	PG7-EMC	4.5-7.8	12.5	12.5-12.5	8	17/17
E.PG9A-EMC	PG9-EMC	3-5.8	15.2	15.2-15.5	8	18/18
E.PG9B-EMC	PG9-EMC	4.5-7.8	15.2	15.2-15.5	8	18/18
E.PG11A-EMC	PG11-EMC	4-7	18.6	18.6-18.9	9	22/22
E.PG11B-EMC	PG11-EMC	6-10	18.6	18.6-18.9	9	22/22
E.PG13.5A-EMC	PG13.5-EMC	5-8.8	20.4	20.4-20.7	9.5	24/24
E.PG13.5B-EMC	PG13.5-EMC	7-12	20.4	20.4-20.7	9.5	24/24
E.PG16A-EMC	PG16-EMC	7-11	22.5	22.5-22.8	9.5	26/26
E.PG16B-EMC	PG16-EMC	9-14	22.5	22.5-22.8	9.5	26/26
E.PG21A-EMC	PG21-EMC	12-16	28.3	28.3-28.7	12	32/32
E.PG21B-EMC	PG21-EMC	14-18	28.3	28.3-28.7	12	32/32
E.PG29A-EMC	PG29-EMC	16-22	37	37-37.4	12.5	41/41
E.PG29B-EMC	PG29-EMC	18-25	37	37-37.4	12.5	41/41
E.PG36A-EMC	PG36-EMC	21-25	47	47-47.4	15	50/50
E.PG36B-EMC	PG36-EMC	24-30	47	47-47.4	15	50/50

Controlled thread E type G series, American thread E type NPT series
Code	Thread MG	(mm) Cable range	(mm) Thread O.D	(mm) Mounting hole diameter	GL(mm) Thread length GL	(mm) Spannersize
E.G1/4A-EMC	G(PF)l/4″	3-5.3	13.157	13.2-13.4	8	17/17
E.G1/4B-EMC	G(PF)l/4″	4.5-7.8	13.157	13.2-13.4	8	17/17
E.G3/8A-EMC	G(PF)3/8 “	4-7	16.662	16.7-16.9	9	22/22
E.G3/8B-EMC	G(PF)3/8 “	6-10	16.662	16.7-16.9	9	22/22
E.G1/2A-EMC	G(PF)l/2 “	7-11	20.955	21-21.2	9.5	26/26
E.G1/2B-EMC	G(PF)l/2 “	9-14	20.955	21-21.2	9.5	26/26
E.G3/4A-EMC	G(PF)3/4 “	12-16	26.441	26.5-26.8	12	32/32
E.G3/4B-EMC	G(PF)3/4 “	14-18	26.441	26.5-26.8	12	32/32
E.G1A-EMC	G(PF)1″	16-22	33.249	33.3-33.6	12.5	41/41
E.G1B-EMC	G(PF)1″	18-25	33.249	33.3-33.6	12.5	41/41
E.G11/4A-EMC	G(PF)1-1/4″	21-25	41.91	42-42.3	15	50/50
E.G11/4B-EMC	G(PF)1-1/4″	24-30	41.91	42-42.3	15	50/50
E.G11/2A-EMC	G(PF)1-1/2 “	26-32	47.803	48-48.4	15	60/60
E.G11/2B-EMC	G(PF)1-1/2 “	31-41	47.803	48-48.4	15	60/60
E.G2A-EMC	G(PF)2 “	40-46	59.614	60-60.4	15	73/73
E.G2B-EMC	G(PF)2 “	44-51	59.614	60-60.4	15	73/73
E.G21/2-EMC	G(PF)2-1/2 “	50-56	75.184	75.2-75.6	18	85/88
E.G21/2-EMC	G(PF)2-1/2 “	66-56	75.184	75.2-75.6	18	85/88
E.NPT3/8A-EMC	NPT3/8 “	4-7	17.055		13	22
E.NPT3/8B-EMC	NPT3/8 “	6-10	17.055		13	22
E.NPT1/2A-EMC	NPT1/2 “	7-11	21.223		13	26
E.NPT1/2B-EMC	NPT1/2 “	9-14	21.223		13	26
E.NPT3/4A-EMC	NPT3/4 “	12-16	26.568		14	32
E.NPT3/4B-EMC	NPT3/4 “	14-18	26.568		14	32
E.NPT1A-EMC	NPT1 “	16-22	33.227		15	41
E.NPT1B-EMC	NPT1 “	18-25	33.227		15	41
E.NPT11/4A-EMC	NPT 1-1/4 “	21-25	41.984		15	50
E.NPT11/4B-EMC	NPT 1-1/4 “	240-30	41.984		15	50

MG Series EMC Cable Gland for Industrial Automation

Technical Parameter

Explore More in This Category

EMC Cable Gland with Contact Spring, IP68 Shielding

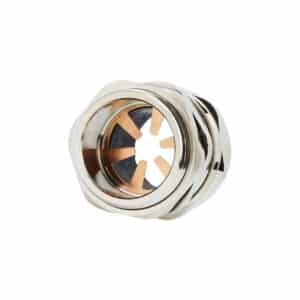

IP68 EMC Shielding Gland for Sensitive Electronics, D Series
