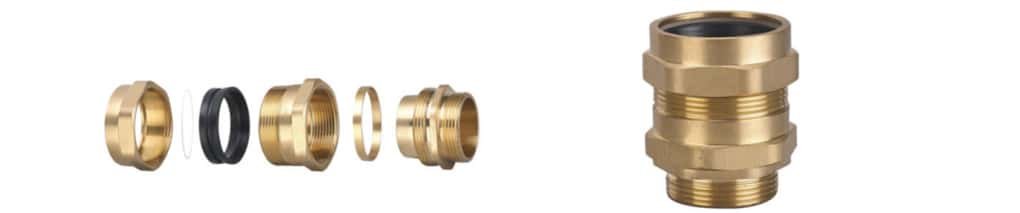

Explosion Proof CW Cable Gland for SWA, IP67/IP66

Our Explosion Proof CW Cable Gland provides a certified safe connection for SWA cables in hazardous areas. This IP67/IP66 brass fitting ensures a weatherproof seal and robust earth continuity.

Technical Parameter

Gland Type: CW Single Compression
Application: Outdoor & Indoor, for all types of SWA (Steel Wire Armour) Cable in Hazardous Areas
Standard: BS 6121
Material: Brass (Optional Nickel Plating)
Protection Rating: IP66 / IP67
Explosion-Proof Certification: ATEX / IECEx (Assumed for Ex-proof claim, should be specified)
Operating Temperature: -20°C to +80°C
Thread Options: Metric, NPT, BSP, PG
Accessories: Locknut, Earth Tag, PVC Shroud

Key Features

Explosion-Proof for Hazardous Areas: Designed and certified for safe use in potentially explosive atmospheres found in oil & gas, chemical, and mining industries.
Weatherproof Sealing: IP66/IP67 rated, providing a robust seal on the cable’s outer sheath to protect against dust and high-pressure water jets, suitable for outdoor use.
Secure Armour Clamping: Features a specific armour clamp that provides strong mechanical retention and reliable earth continuity through the cable armour.
BS 6121 Compliant: Manufactured to meet the stringent requirements of the BS 6121 standard, ensuring quality, safety, and performance.
Durable Brass Construction: Made from high-quality brass (with an optional nickel-plated finish) for excellent corrosion resistance and long-term durability.
Complete Kit Available: Can be supplied as a kit with matching accessories including locknuts, earth tags, and PVC shrouds for added protection.

Size Code	Thread OD (mm)	Thread Length (mm)	Unarmored Cable OD “A” (MIN–MAX, mm)	Armored Cable OD “B” (MIN–MAX, mm)	Clamping Range (mm)	Wrench Size (mm)	Max Product OD (mm)
CW-20S	20	10	6.0 – 10.0	8.0 – 15.8	0.9 / 1.25	24	27
CW-20M	20	10	8.0 – 11.8	12.9 – 17.2	0.9 / 1.25	27	30
CW-20L	20	10	11.0 – 14.0	15.5 – 20.8	0.9 / 1.25	30	33
CW-25S	25	10	12.0 – 17.0	17.5 – 24.0	1.25 / 1.60	34	36
CW-25L	25	10	13.0 – 20.3	24.0 – 26.5	1.25 / 1.60	36	39
CW-32S	32	12	17.0 – 24.0	25.0 – 32.0	1.60 / 2.00	44	46
CW-32L	32	12	19.0 – 26.2	26.7 – 34.0	1.60 / 2.00	46	48.5
CW-40S	40	14	23.0 – 27.0	31.0 – 37.0	1.60 / 2.00	52	57
CW-40L	40	14	25.0 – 32.2	33.0 – 40.5	1.60 / 2.00	55	58.5
CW-50S	50	15	31.5 – 37.0	39.4 – 45.0	2.00 / 2.50	58	65
CW-50L	50	15	36.5 – 42.0	45.7 – 50.0	2.00 / 2.50	65	72
CW-63S	63	15	42.5 – 47.0	52.1 – 56.0	2.5	68	75
CW-63L	63	15	49.1 – 56.0	58.4 – 66.0	2.5	80	89
CW-75S	75	15	54.5 – 58.0	64.8 – 68.0	2.5	82	90
CW-75L	75	15	57.5 – 64.0	68.0 – 74.0	2.5	92	103
CW-90S	90	15	66.0 – 76.0	77.0 – 86.0	2.50 / 3.15	106	118
CW-90L	90	15	66.0 – 79.0	77.0 – 90.0	2.50 / 3.15	106	118
CW-100	100	17	80.0 – 90.9	92.0 – 101.5	3.15 / 4.00	123	135.3
CW-115	115	17	87.0 – 97.9	101.0 – 110.3	3.15 / 4.00	133.4	146.7
