Ever wondered how engineers prove that an EMC cable gland actually works? 🤔 In today’s electromagnetic interference-heavy industrial environments, simply claiming “good shielding” isn’t enough anymore. Transfer impedance testing has become the gold standard for quantifying exactly how well your EMC glands protect against electromagnetic interference.
Transfer impedance1 testing measures the shielding effectiveness of EMC cable glands by quantifying how much electromagnetic energy leaks through the shield connection. This standardized test method provides concrete data in milliohms per meter, allowing engineers to make informed decisions based on measurable performance rather than marketing claims.
I’ve seen too many projects fail because procurement teams chose EMC glands based on price alone, only to discover during commissioning that their “shielding” was practically useless. Last month, David from a major automotive manufacturer in Detroit told me their production line suffered weeks of downtime because their previous supplier’s EMC glands couldn’t pass basic transfer impedance requirements. That’s exactly why understanding this testing method is crucial for anyone specifying EMC cable glands.
Table of Contents
- What Is Transfer Impedance Testing?
- How Does Transfer Impedance Testing Work?
- Why Is Transfer Impedance Critical for EMC Glands?
- What Are Acceptable Transfer Impedance Values?
- How to Interpret Transfer Impedance Test Results?
- Conclusion
- FAQs About Transfer Impedance Testing
What Is Transfer Impedance Testing?
Transfer impedance testing is a standardized measurement technique that quantifies the electromagnetic shielding effectiveness of cable assemblies and their termination components, including EMC cable glands.
The Science Behind Transfer Impedance
Transfer impedance represents the ratio of induced voltage to the current flowing through the shield. Think of it as measuring how much electromagnetic “leakage” occurs through your shielding system. The lower the transfer impedance value, the better the shielding performance.
The test follows internationally recognized standards, primarily IEC 62153-4-32 and ASTM D4935, ensuring consistent and comparable results across different manufacturers and testing facilities. At Bepto, we’ve invested heavily in our testing capabilities because we understand that our customers need verifiable data, not just promises.
Key Components of Transfer Impedance Testing

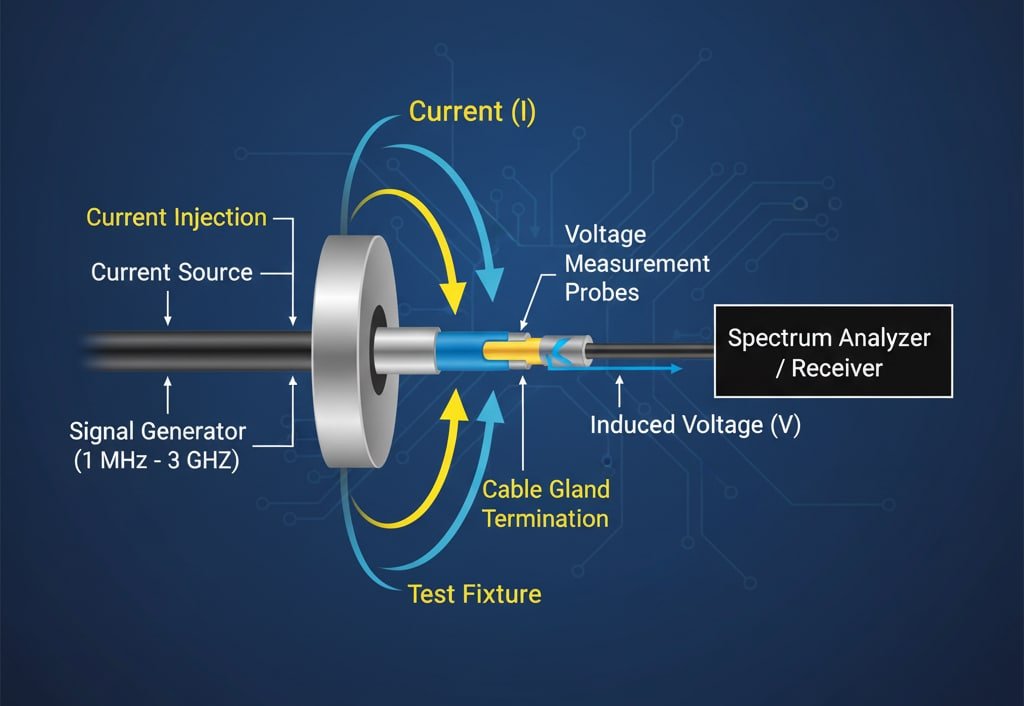

The testing setup involves several critical elements:
- Current injection system: Generates controlled electromagnetic current through the shield
- Voltage measurement probes: Detect induced voltages across the shield discontinuity
- Frequency sweep capability: Tests performance across relevant frequency ranges (typically 1 MHz to 3 GHz)
- Calibrated test fixtures: Ensure repeatable and accurate measurements
Hassan, who runs a petrochemical facility in Saudi Arabia, recently shared with me how transfer impedance data helped him justify the premium cost of our stainless steel EMC glands to his board. “When you can show concrete numbers proving 40 dB better shielding effectiveness, the ROI calculation becomes crystal clear,” he explained during our last video call.
How Does Transfer Impedance Testing Work?
Transfer impedance testing works by injecting a known current through the cable shield and measuring the voltage induced across any discontinuities in the shielding system, including the EMC gland connection point.
Step-by-Step Testing Process
The testing procedure follows a precise methodology:
- Sample Preparation: The cable assembly with EMC gland is mounted in a specialized test fixture that maintains proper impedance matching
- Current Injection: A controlled RF current is injected through the cable shield using a calibrated current source
- Voltage Measurement: Sensitive probes measure the voltage developed across the shield discontinuity at the gland connection
- Frequency Sweep: The test is repeated across the specified frequency range to capture frequency-dependent behavior
- Data Analysis: Results are calculated as transfer impedance (Zt) in milliohms per meter
Critical Test Parameters
Several factors significantly impact test accuracy and repeatability:
| Parameter | Importance | Typical Range |
|---|---|---|
| Test Frequency | Determines application relevance | 1 MHz – 3 GHz |
| Current Level | Ensures linear operation | 10-100 mA |
| Cable Length | Affects measurement sensitivity | 1-2 meters |
| Environmental Conditions | Impacts material properties | 23°C ± 2°C, 45-75% RH |
Real-World Application Considerations
During testing, we pay special attention to how the EMC gland interfaces with different cable types. Our brass EMC glands, for instance, consistently demonstrate transfer impedance values below 1 mΩ/m across the critical 10-1000 MHz range when properly installed with braided shield cables.
The testing also reveals how installation practices affect performance. We’ve documented cases where identical EMC glands showed 10x difference in transfer impedance simply due to improper shield termination techniques.
Why Is Transfer Impedance Critical for EMC Glands?
Transfer impedance testing is critical for EMC glands because it provides the only quantitative method to verify that the gland maintains the cable’s shielding integrity at the enclosure interface, where electromagnetic leakage most commonly occurs.
The Weak Link Problem
In any shielded system, the EMC gland represents a potential weak point where the cable shield must transition to the enclosure ground. Without proper design and verification, this transition point can become an “electromagnetic leak” that compromises the entire system’s EMI performance.
Consider this: a cable with excellent 80 dB shielding effectiveness becomes virtually useless if the EMC gland connection only provides 20 dB of shielding. The overall system performance is limited by the weakest component.
Regulatory and Standards Compliance
Many industries now require documented transfer impedance performance:
- Automotive (ISO 114523): Requires transfer impedance testing for EMC validation
- Aerospace (DO-1604): Mandates shielding effectiveness verification for avionics
- Industrial (IEC 61000): Specifies EMC requirements including cable shielding
- Medical (IEC 60601): Demands proven EMI protection for patient safety
Cost of EMI Failures
The financial impact of inadequate EMC protection can be staggering. David’s automotive case I mentioned earlier resulted in over $2 million in lost production, not counting the reputation damage and customer relationship strain. Transfer impedance testing helps prevent these costly failures by providing early verification of shielding performance.
Design Optimization Benefits
Transfer impedance data also drives product improvement. Our engineering team uses this data to optimize:
- Contact spring designs for better shield continuity
- Conductive gasket materials and geometries
- Thread engagement specifications
- Installation torque requirements
What Are Acceptable Transfer Impedance Values?
Acceptable transfer impedance values for EMC cable glands typically range from 0.1 to 10 milliohms per meter, depending on the application’s EMI sensitivity and frequency requirements.
Industry Standard Benchmarks
Different applications demand different performance levels:
| Application Category | Typical Requirement | Frequency Range |
|---|---|---|
| Consumer Electronics | < 10 mΩ/m | 1-100 MHz |
| Industrial Control | < 5 mΩ/m | 1-1000 MHz |
| Automotive ECU | < 1 mΩ/m | 1-1000 MHz |
| Aerospace/Defense | < 0.5 mΩ/m | 1-3000 MHz |
| Medical Devices | < 0.1 mΩ/m | 1-1000 MHz |
Bepto Performance Standards
Our EMC cable glands consistently achieve superior performance across our product range:
- Brass EMC Glands: Typically 0.3-0.8 mΩ/m from 1-1000 MHz
- Stainless Steel EMC Glands: Usually 0.2-0.6 mΩ/m from 1-1000 MHz
- Nickel-Plated Brass EMC Glands: Generally 0.4-1.0 mΩ/m from 1-1000 MHz
Frequency-Dependent Considerations
Transfer impedance isn’t constant across all frequencies. Most EMC glands show:
- Low frequency (1-10 MHz): Dominated by DC resistance of shield connection
- Mid frequency (10-100 MHz): Optimal performance region for most designs
- High frequency (100+ MHz): May show degradation due to parasitic effects5
Understanding these frequency characteristics helps in selecting the right EMC gland for specific applications. For instance, switching power supply environments require excellent performance in the 100-500 MHz range, while motor drive applications focus more on the 1-50 MHz region.
How to Interpret Transfer Impedance Test Results?
Transfer impedance test results should be interpreted by examining the frequency response curve, identifying peak values, and comparing performance against application-specific requirements rather than focusing solely on single-point measurements.
Reading the Test Report
A comprehensive transfer impedance test report includes several key elements:
Frequency Response Curve: Shows how transfer impedance varies across the tested frequency range. Look for:
- Smooth, consistent performance without sharp peaks
- Values remaining below application requirements across all frequencies
- Resonant frequencies that might cause problems in specific applications
Statistical Data: Includes maximum, minimum, and average values across the frequency range, plus standard deviation for batch testing.
Test Conditions: Documents cable type, gland installation torque, environmental conditions, and any deviations from standard procedures.
Common Interpretation Pitfalls
Many engineers make these mistakes when reviewing transfer impedance data:
- Single-Point Focus: Looking only at one frequency instead of the full spectrum
- Ignoring Installation Variables: Not considering how real-world installation affects performance
- Comparing Different Test Standards: Mixing results from IEC and ASTM standards
- Overlooking Cable Compatibility: Assuming all cables will perform identically with the same gland
Practical Application Guidelines
When Hassan needed to specify EMC glands for his new control room, we worked together to interpret the test data in context of his specific requirements:
- Identified critical frequencies: His variable frequency drives operated primarily in the 10-100 MHz range
- Established performance targets: Required < 1 mΩ/m across this range for reliable operation
- Considered environmental factors: High-temperature operation in desert conditions
- Validated installation procedures: Ensured field technicians could achieve lab performance
This systematic approach led to successful implementation with zero EMI-related issues during commissioning.
Trending and Quality Control
For high-volume applications, transfer impedance testing becomes a quality control tool. We maintain statistical process control charts tracking:
- Batch-to-batch consistency
- Long-term performance trends
- Correlation with manufacturing parameters
- Field performance validation
Conclusion
Transfer impedance testing represents the definitive method for quantifying EMC cable gland shielding effectiveness. By providing concrete, measurable data rather than subjective claims, this testing enables engineers to make informed decisions that prevent costly EMI failures. Whether you’re specifying EMC glands for automotive electronics, industrial control systems, or aerospace applications, understanding transfer impedance requirements and test interpretation is essential for project success. At Bepto, our commitment to rigorous transfer impedance testing ensures that our EMC cable glands deliver the verified performance your critical applications demand.
FAQs About Transfer Impedance Testing
Q: What is the difference between transfer impedance and shielding effectiveness?
A: Transfer impedance measures the impedance of electromagnetic leakage paths in milliohms per meter, while shielding effectiveness expresses the same performance as attenuation in decibels. Both quantify shielding performance but use different units – transfer impedance provides more precise engineering data for design calculations.
Q: How often should transfer impedance testing be performed on EMC cable glands?
A: Production batches should be tested according to your quality system requirements, typically every 1000-5000 pieces for high-volume applications. Critical applications may require 100% testing, while standard industrial uses often accept statistical sampling with batch certification.
Q: Can transfer impedance values predict real-world EMI performance?
A: Transfer impedance provides excellent correlation with system-level EMI performance when properly interpreted. However, actual EMI suppression depends on multiple factors including cable routing, grounding practices, and overall system design – transfer impedance is one critical piece of the puzzle.
Q: Why do transfer impedance values vary with frequency?
A: Transfer impedance varies with frequency due to the electromagnetic properties of materials and geometries changing with frequency. At low frequencies, DC resistance dominates, while at high frequencies, inductive and capacitive effects become significant, creating the characteristic frequency response curves.
Q: What causes transfer impedance test results to be inconsistent?
A: Inconsistent results typically stem from improper sample preparation, incorrect installation torque, contaminated contact surfaces, or variations in cable shield construction. Environmental factors like temperature and humidity can also affect measurements, which is why controlled test conditions are essential.
