The Impact of Salt Spray on Nickel-Plated Brass: How Long Can It Last?

In marine and coastal industrial environments, nickel-plated brass components can withstand salt spray corrosion for 15-25 years when properly specified and maintained, far exceeding the performance of standard brass or aluminum alternatives. Having supplied cable glands to offshore platforms and coastal facilities for over a decade, I’ve witnessed firsthand how the right nickel plating specification can mean the difference between reliable operation and catastrophic failure.

The harsh reality is that salt spray doesn’t just cause surface discoloration—it penetrates deep into metal structures, causing pitting corrosion¹ that compromises both mechanical integrity and electrical performance. This is why understanding nickel plating durability isn’t just technical curiosity; it’s essential for preventing costly equipment failures in marine applications.

Table of Contents

• What Makes Nickel Plating Essential for Salt Spray Resistance?
• How Does Salt Spray Testing Predict Real-World Performance?
• Which Nickel Plating Thickness Provides Optimal Longevity?
• What Maintenance Practices Extend Nickel-Plated Brass Lifespan?

What Makes Nickel Plating Essential for Salt Spray Resistance?

Nickel plating transforms ordinary brass from a moderately corrosion-resistant alloy into a marine-grade material capable of withstanding decades of salt spray exposure. The electrochemical properties of nickel create a protective barrier that fundamentally changes how brass interacts with chloride ions.

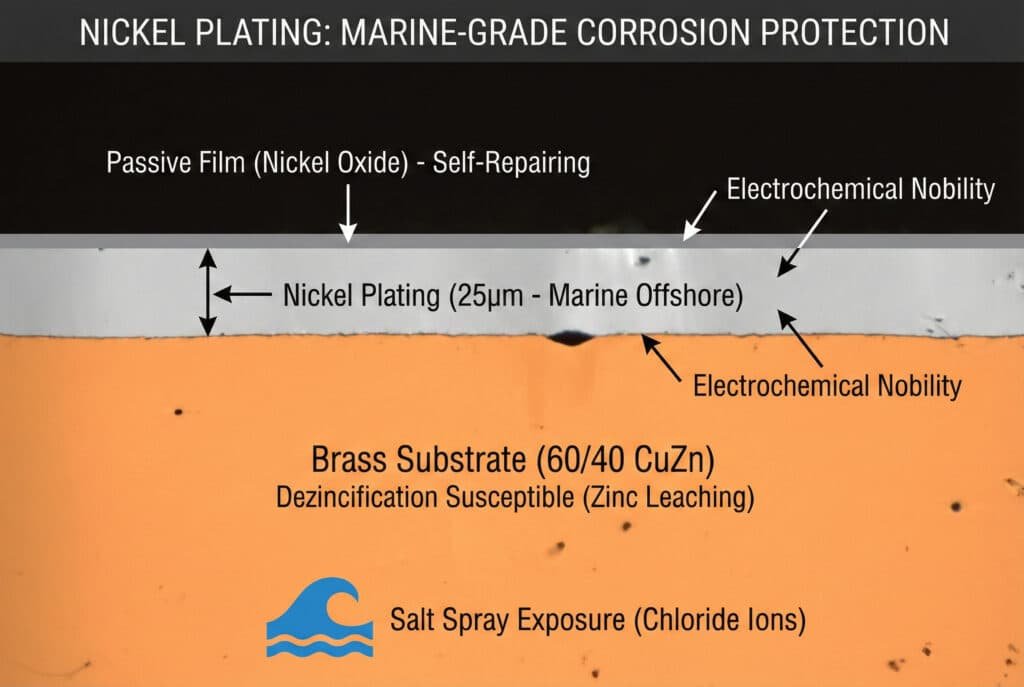

Key protective mechanisms of nickel plating:

• Electrochemical nobility: Nickel’s higher electrode potential (-0.25V vs -0.34V for brass) provides cathodic protection
• Passive film formation: Nickel oxide layer self-repairs when damaged, maintaining protection
• Chloride resistance: Dense nickel crystal structure blocks chloride ion penetration
• Galvanic compatibility: Minimal potential difference reduces galvanic corrosion in mixed-metal assemblies

The brass substrate typically contains 60% copper and 40% zinc, meeting CuZn40 specifications per EN 12164. Without nickel protection, the zinc component becomes highly susceptible to dezincification²—a selective corrosion process where zinc leaches out, leaving porous copper behind.

Standard nickel plating specifications for marine applications:

The nickel plating process involves multiple steps: alkaline cleaning, acid activation, electroplating at controlled current density (2-5 A/dm²), and final passivation. This creates a uniform, dense coating that bonds metallurgically with the brass substrate.

How Does Salt Spray Testing Predict Real-World Performance?

Salt spray testing per ASTM B117³ provides standardized assessment of corrosion resistance, though real-world performance often exceeds laboratory predictions due to cyclic exposure patterns and natural protective film development.

ASTM B117 test parameters:

• Salt solution: 5% sodium chloride (NaCl) in distilled water
• pH range: 6.5-7.2 (neutral conditions)
• Temperature: 35°C ± 2°C (95°F ± 4°F)
• Spray rate: 1-2 mL/80cm²/hour continuous exposure

Hassan, a project manager for a Middle Eastern desalination plant, initially questioned whether 500-hour salt spray ratings were sufficient for his 20-year project timeline. After installing our nickel-plated brass cable glands with 1000+ hour ratings, he’s now completing year seven with zero corrosion-related failures, even in direct splash zones.

Correlation between test hours and service life:

The general rule of thumb suggests 1 hour of ASTM B117 testing equals approximately 1-2 weeks of moderate marine exposure. However, this varies significantly based on:

• Cyclic vs. continuous exposure: Natural wet/dry cycles often extend component life
• Temperature variations: Lower temperatures reduce corrosion rates exponentially
• Contamination levels: Industrial pollutants can accelerate or inhibit corrosion
• Maintenance frequency: Regular cleaning removes salt deposits before concentration builds

Advanced testing methods beyond basic salt spray:

1. Cyclic corrosion testing (CCT): Alternates between salt spray, humidity, and dry conditions
2. ASTM G85 Annex A3: Modified salt spray with acidic conditions (pH 3.1-3.3)
3. Prohesion testing: Uses dilute salt solution with better real-world correlation
4. Electrochemical impedance spectroscopy⁴: Measures coating degradation in real-time

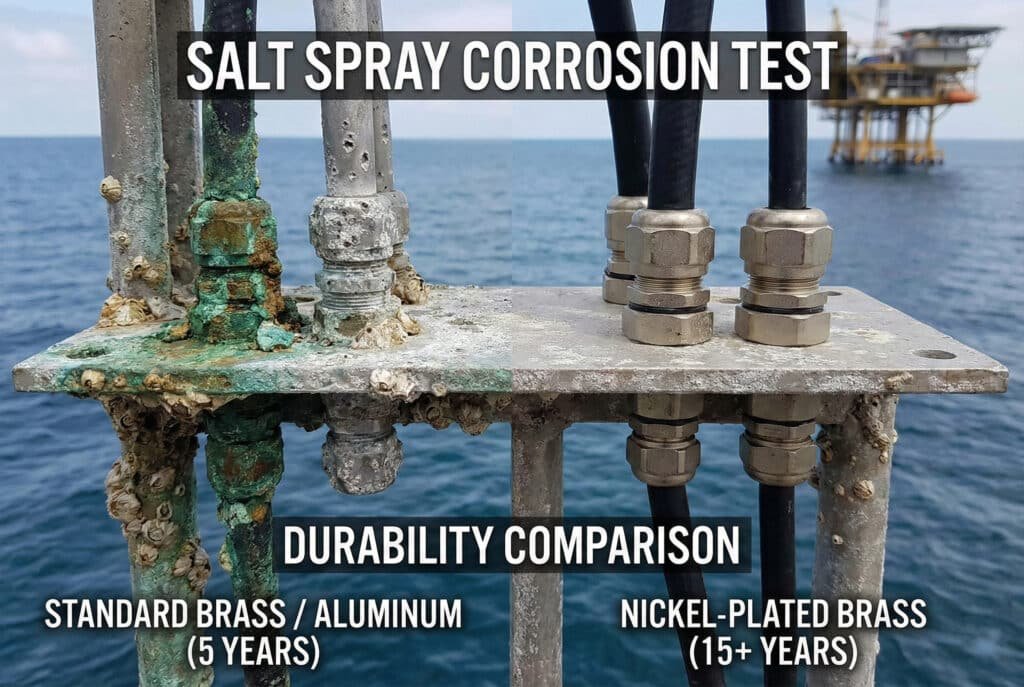

Our internal testing shows that nickel-plated brass components achieving 1000+ hours in ASTM B117 typically provide 15-20 years of service in moderate marine environments, with some installations exceeding 25 years.

Which Nickel Plating Thickness Provides Optimal Longevity?

Plating thickness directly correlates with corrosion protection duration, but the relationship isn’t linear. Optimal thickness balances protection, cost, and manufacturing constraints while considering specific environmental conditions.

Thickness Selection Guidelines

8-12 μm (Thin Plating):

• Applications: Indoor marine environments, occasional salt exposure
• Expected life: 8-12 years
• Cost factor: Baseline
• Limitations: Vulnerable to mechanical damage

15-20 μm (Standard Marine):

• Applications: Outdoor coastal installations, regular salt spray
• Expected life: 15-20 years
• Cost factor: +25-35%
• Benefits: Good balance of protection and economy

25-30 μm (Heavy Duty):

• Applications: Offshore platforms, splash zones, chemical processing
• Expected life: 25+ years
• Cost factor: +50-70%
• Considerations: May require stress relief heat treatment

Plating Quality Factors

Porosity control: High-quality nickel plating maintains <0.1% porosity, measured using ferroxyl testing per ASTM B735. Pores create direct paths for corrosive attack of the brass substrate.

Adhesion strength: Proper surface preparation ensures >40 MPa bond strength between nickel and brass. Poor adhesion leads to coating delamination and accelerated failure.

Internal stress management: Electroplating conditions must be optimized to minimize tensile stress, which can cause micro-cracking. Stress levels should remain below 200 MPa for optimal durability.

David, a maintenance engineer at a coastal power plant, learned this lesson when cheaper 8 μm plated components failed after just 5 years. Upgrading to 20 μm plating extended service life to over 18 years, with ongoing installations still performing well.

Environmental Multipliers

Temperature effects: Every 10°C increase doubles corrosion rate (Arrhenius relationship⁵)
Humidity impact: Relative humidity >60% significantly accelerates corrosion
Pollution synergy: SO₂ and NOₓ compounds increase corrosion rates by 2-3x
UV exposure: Doesn’t directly affect nickel but can degrade organic sealants

What Maintenance Practices Extend Nickel-Plated Brass Lifespan?

Proper maintenance can extend nickel-plated brass component life by 30-50% beyond baseline expectations. The key is preventing salt accumulation while preserving the protective nickel surface.

Essential maintenance procedures:

1. Regular cleaning (Monthly in high-exposure areas):

   • Use fresh water rinse to remove salt deposits
   • Mild detergent solution for stubborn contamination
   • Avoid abrasive cleaners that damage nickel surface

2. Visual inspection (Quarterly):

   • Check for pitting, discoloration, or coating damage
   • Document any changes with photography
   • Pay special attention to threaded connections

3. Protective coating renewal (Every 2-3 years):

   • Apply marine-grade protective wax or coating
   • Focus on areas with mechanical wear
   • Ensure compatibility with nickel plating

Critical maintenance mistakes to avoid:

Mistake #1: Using chlorinated cleaning products
Bleach and chlorinated solvents accelerate nickel corrosion. Use only pH-neutral, chloride-free cleaning solutions.

Mistake #2: High-pressure washing
Excessive pressure can damage nickel plating, especially around edges and threads. Limit pressure to <1000 PSI and maintain 12-inch minimum distance.

Mistake #3: Ignoring galvanic corrosion
When nickel-plated brass contacts other metals, use appropriate isolation methods. Stainless steel fasteners are generally compatible, but aluminum requires insulation.

Performance monitoring indicators:

• Color change: Yellowing indicates zinc migration through nickel
• Surface roughening: Early sign of pitting corrosion initiation
• White deposits: Salt accumulation requiring immediate cleaning
• Thread binding: Corrosion products causing mechanical interference

Replacement criteria:
Replace components when nickel plating shows >10% area loss or when pitting depth exceeds 25% of original plating thickness.

Conclusion

Nickel-plated brass components can reliably serve 15-25 years in salt spray environments when properly specified, installed, and maintained. The investment in adequate plating thickness and regular maintenance pays substantial dividends through extended service life and reduced replacement costs.
