Introduction
Are you struggling with electromagnetic interference (EMI)1 issues in your critical electronic systems? Poor EMC cable gland installation is often the culprit behind compromised shielding performance, leading to signal degradation, equipment malfunction, and costly downtime. Even the highest-quality EMC cable glands can fail to deliver their promised shielding effectiveness2 if not installed correctly.
Proper EMC cable gland installation requires precise attention to grounding continuity, shield termination, and environmental sealing to achieve maximum electromagnetic shielding effectiveness. The installation process involves specific techniques for maintaining 360-degree shielding integrity while ensuring long-term reliability in harsh industrial environments.
Just last month, I worked with David, a procurement manager from a major automotive electronics manufacturer in Detroit, who was experiencing intermittent signal interference in their production line. Despite using certified EMC cable glands, their shielding effectiveness was only 40dB instead of the expected 80dB. The root cause? Improper installation techniques that compromised the electromagnetic continuity. 😉
Table of Contents
- What Makes EMC Cable Gland Installation Critical?
- How to Prepare for EMC Cable Gland Installation?
- What Are the Step-by-Step Installation Procedures?
- How to Test and Verify Shielding Effectiveness?
- What Common Installation Mistakes Should You Avoid?
- FAQs About EMC Cable Gland Installation
What Makes EMC Cable Gland Installation Critical?
Understanding why proper installation matters is the foundation of achieving maximum shielding effectiveness. Many engineers underestimate the impact of installation quality on overall EMC performance.

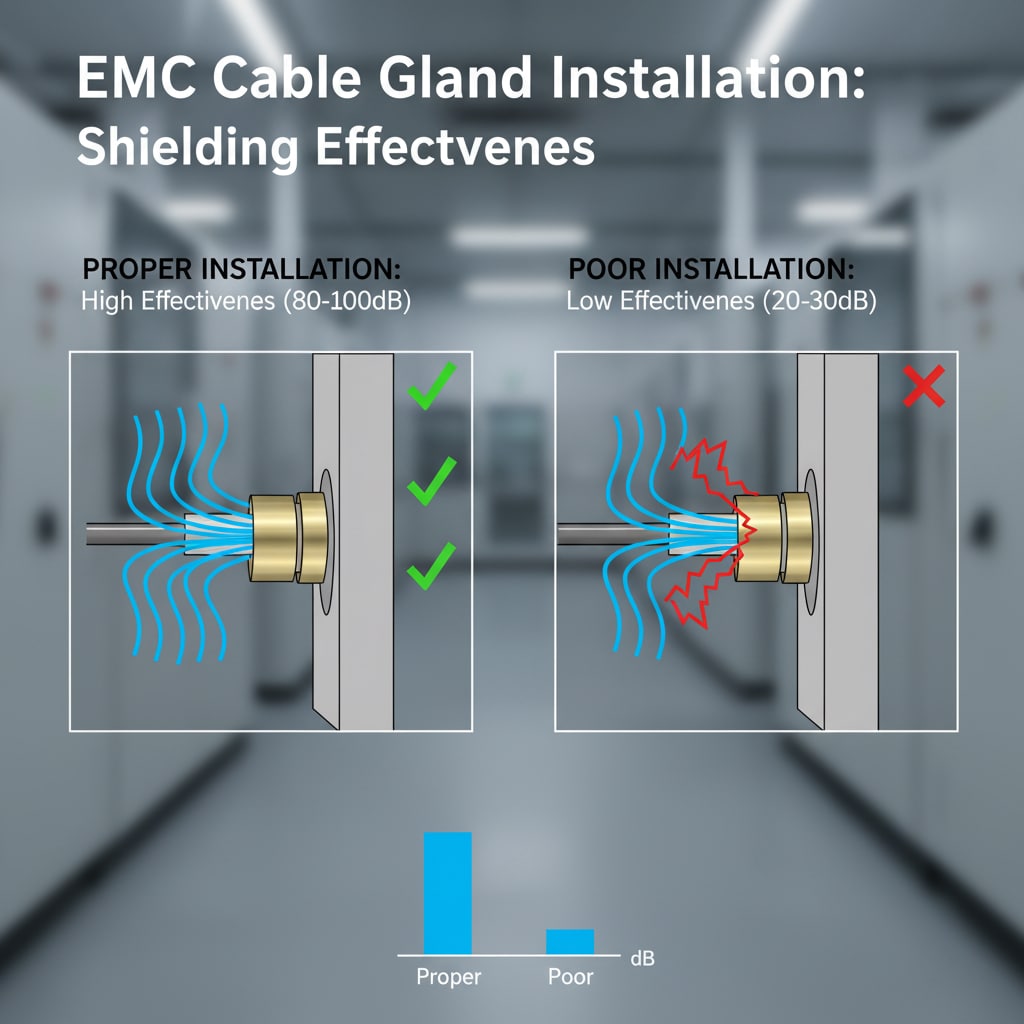

EMC cable gland installation is critical because it establishes the electromagnetic continuity between the cable shield and the enclosure, creating a complete Faraday cage3 that prevents electromagnetic interference from entering or escaping the system.
The Science Behind EMC Shielding
EMC cable glands work by maintaining continuous electrical contact between the cable’s metallic shield and the equipment enclosure. This continuity is essential for:
- Reflection of electromagnetic waves at the shield boundary
- Absorption of residual electromagnetic energy within the shield material
- Prevention of current loops that can act as antennas
- Maintaining signal integrity in sensitive circuits
The shielding effectiveness is measured in decibels (dB), with higher values indicating better protection. A properly installed EMC cable gland can achieve shielding effectiveness of 80-100dB across a wide frequency range, while poor installation can reduce this to as low as 20-30dB.
Real-World Impact of Poor Installation
I remember working with Hassan, an engineering manager at a petrochemical facility in Saudi Arabia, who faced recurring issues with their distributed control system. Despite investing in premium stainless steel EMC cable glands rated for hazardous environments, they experienced frequent communication errors. Our investigation revealed that the installation team had failed to properly prepare the cable shield termination, leaving gaps in the electromagnetic continuity. After implementing proper installation procedures, their system reliability improved by 95%.
How to Prepare for EMC Cable Gland Installation?
Proper preparation is half the battle when it comes to achieving maximum shielding effectiveness. This phase determines the success of your entire installation.
Effective EMC cable gland installation preparation involves selecting the correct gland size, preparing the cable shield properly, and ensuring the enclosure mounting surface provides optimal electrical continuity.
Essential Tools and Materials
Before starting any EMC cable gland installation, gather these critical items:
| Tool/Material | Purpose | Quality Requirements |
|---|---|---|
| Cable stripping tools | Clean shield preparation | Sharp, calibrated blades |
| Torque wrench | Proper tightening force | ±5% accuracy |
| Multimeter | Continuity testing | 0.1Ω resolution minimum |
| Conductive grease | Enhanced conductivity | Silver-loaded compound |
| EMI gaskets | Surface irregularity compensation | Conductive elastomer |
Cable Shield Preparation Techniques
The cable shield preparation is arguably the most critical step in the entire process. Here’s how we do it at Bepto:
- Strip the outer jacket to expose 25-30mm of cable shield
- Fold back the shield evenly around the cable circumference
- Clean all surfaces with isopropyl alcohol to remove oxidation
- Apply conductive compound sparingly to enhance contact resistance
Enclosure Surface Preparation
The mounting surface on your enclosure must provide optimal electrical contact:
- Remove paint or coatings from the threaded hole and surrounding area
- Ensure surface flatness within 0.1mm tolerance
- Clean thoroughly to remove any contamination
- Apply anti-seize compound to prevent galvanic corrosion4
What Are the Step-by-Step Installation Procedures?
Following a systematic installation procedure ensures consistent results and maximum shielding effectiveness every time.
The step-by-step EMC cable gland installation procedure involves precise cable preparation, proper gland assembly, controlled tightening sequences, and comprehensive continuity verification to achieve optimal electromagnetic shielding performance.
Phase 1: Initial Assembly
Start with the cable gland components laid out in order:
- Thread the cable through the gland body from the back
- Position the sealing elements according to the manufacturer’s specifications
- Ensure proper cable shield contact with the gland’s conductive elements
- Hand-tighten the compression nut until resistance is felt
Phase 2: Mounting and Sealing
The mounting phase requires careful attention to torque specifications:
- Apply thread sealant to the gland threads (if required for your application)
- Thread the gland into the enclosure hole by hand
- Tighten to specification using a calibrated torque wrench
- Verify the sealing integrity visually and with continuity testing
Phase 3: Final Compression
The final compression step is where shielding effectiveness is truly established:
- Gradually tighten the compression nut in quarter-turn increments
- Monitor the cable shield for even compression around the circumference
- Stop when proper compression is achieved (typically 15-20 Nm for standard sizes)
- Perform immediate continuity check between shield and enclosure
Critical Torque Specifications
| Gland Size | Body Torque (Nm) | Compression Nut (Nm) | Shield Contact Force |
|---|---|---|---|
| M12 | 8-10 | 12-15 | 200-300N |
| M16 | 12-15 | 15-18 | 300-400N |
| M20 | 15-18 | 18-22 | 400-500N |
| M25 | 18-22 | 20-25 | 500-600N |
How to Test and Verify Shielding Effectiveness?
Testing and verification ensure that your installation meets the required EMC performance standards. This step is often overlooked but absolutely critical for mission-critical applications.
EMC cable gland shielding effectiveness verification involves DC continuity testing, AC impedance measurement, and field strength testing to confirm that the installation achieves the specified electromagnetic shielding performance across the required frequency range.
DC Continuity Testing
The most basic but essential test is DC continuity:
- Measure resistance between cable shield and enclosure ground
- Target value: Less than 2.5 milliohms for optimal performance
- Use a 4-wire measurement5 to eliminate test lead resistance
- Document all readings for quality records
AC Impedance Verification
For high-frequency applications, AC impedance testing provides better insight:
- Test frequency range: 10 kHz to 1 GHz minimum
- Target impedance: Less than 1 ohm across the frequency range
- Use vector network analyzer for precise measurements
- Compare against baseline standards for your application
Field Testing Procedures
In critical applications, actual field strength testing may be required:
- Generate test signals at various frequencies
- Measure field strength inside and outside the enclosure
- Calculate shielding effectiveness using the formula: SE = 20 log₁₀(E₁/E₂)
- Verify compliance with your EMC requirements
What Common Installation Mistakes Should You Avoid?
Learning from common mistakes can save you time, money, and frustration. These are the issues I see most frequently in the field.
The most common EMC cable gland installation mistakes include inadequate cable shield preparation, incorrect torque application, poor surface preparation, and failure to verify electrical continuity, all of which significantly compromise shielding effectiveness.
Top 5 Installation Mistakes
- Insufficient cable shield preparation – Leaving oxidation or contamination on contact surfaces
- Over-tightening compression nuts – Damaging the cable shield or gland components
- Ignoring surface preparation – Installing on painted or contaminated surfaces
- Mixing dissimilar metals – Creating galvanic corrosion issues
- Skipping continuity verification – Assuming proper installation without testing
Prevention Strategies
Based on our experience at Bepto, here are proven prevention strategies:
- Implement quality checklists for each installation step
- Train installation personnel on proper techniques
- Use calibrated tools for all torque applications
- Establish verification procedures before system commissioning
- Document all installations for future reference and troubleshooting
Conclusion
Achieving maximum EMC cable gland shielding effectiveness requires meticulous attention to installation details, from initial cable preparation through final verification testing. The difference between a properly installed EMC cable gland and a poorly installed one can mean the difference between 80dB and 20dB of shielding effectiveness – a performance gap that can make or break your system’s EMC compliance. By following the systematic procedures outlined in this guide, using proper tools and techniques, and avoiding common installation mistakes, you can ensure that your EMC cable glands deliver their full shielding potential and protect your critical electronic systems from electromagnetic interference.
FAQs About EMC Cable Gland Installation
Q: What is the minimum shielding effectiveness I should expect from a properly installed EMC cable gland?
A: A properly installed EMC cable gland should achieve at least 60-80dB of shielding effectiveness across the 10 kHz to 1 GHz frequency range. Premium installations with optimal surface preparation and high-quality glands can achieve 90-100dB or higher.
Q: How tight should I make the compression nut on an EMC cable gland?
A: Tighten the compression nut to the manufacturer’s specified torque, typically 15-25 Nm for standard sizes. Over-tightening can damage the cable shield and reduce shielding effectiveness, while under-tightening leaves gaps in the electromagnetic continuity.
Q: Can I install EMC cable glands on painted enclosure surfaces?
A: No, you must remove paint and coatings from the mounting area to ensure proper electrical contact. Paint acts as an insulator and will significantly reduce shielding effectiveness. Clean the threaded hole and surrounding area down to bare metal.
Q: How do I know if my EMC cable gland installation is working properly?
A: Test DC continuity between the cable shield and enclosure ground – it should be less than 2.5 milliohms. For critical applications, perform AC impedance testing across your operating frequency range to verify shielding effectiveness.
Q: What’s the difference between installing EMC cable glands and regular cable glands?
A: EMC cable gland installation requires additional steps for shield termination, surface preparation for electrical continuity, and verification testing. Regular cable glands focus primarily on sealing, while EMC installations must maintain both sealing and electromagnetic continuity.
-
