Chemical Resistance of Polyamide: Where NOT to Use Nylon Glands

Introduction

I’ve seen it happen too many times: a procurement manager orders nylon cable glands for a chemical processing plant, only to find them cracked and brittle within months. The cost of replacement? Thousands of dollars. The safety risk? Even higher.

Nylon (polyamide) cable glands offer excellent value and versatility, but they are NOT suitable for all environments—especially those involving aggressive chemicals, strong acids, or certain organic solvents.

As Sales Director at Bepto Connector, I’ve worked with clients like David, a procurement manager at a petrochemical facility, who learned this lesson the hard way. After a batch of nylon glands failed in a solvent-rich area, he reached out to us for guidance. Understanding where NOT to use nylon glands is just as critical as knowing their strengths. In this article, I’ll walk you through the chemical limitations of polyamide, the environments that will destroy your nylon glands, and the superior alternatives you should consider.

Table of Contents

• What Makes Polyamide (Nylon) Vulnerable to Chemical Attack?
• Which Chemicals Will Destroy Your Nylon Cable Glands?
• What Are the Warning Signs of Chemical Degradation?
• When Should You Choose Brass or Stainless Steel Instead?
• Conclusion
• FAQs About Chemical Resistance of Nylon Cable Glands

What Makes Polyamide (Nylon) Vulnerable to Chemical Attack?

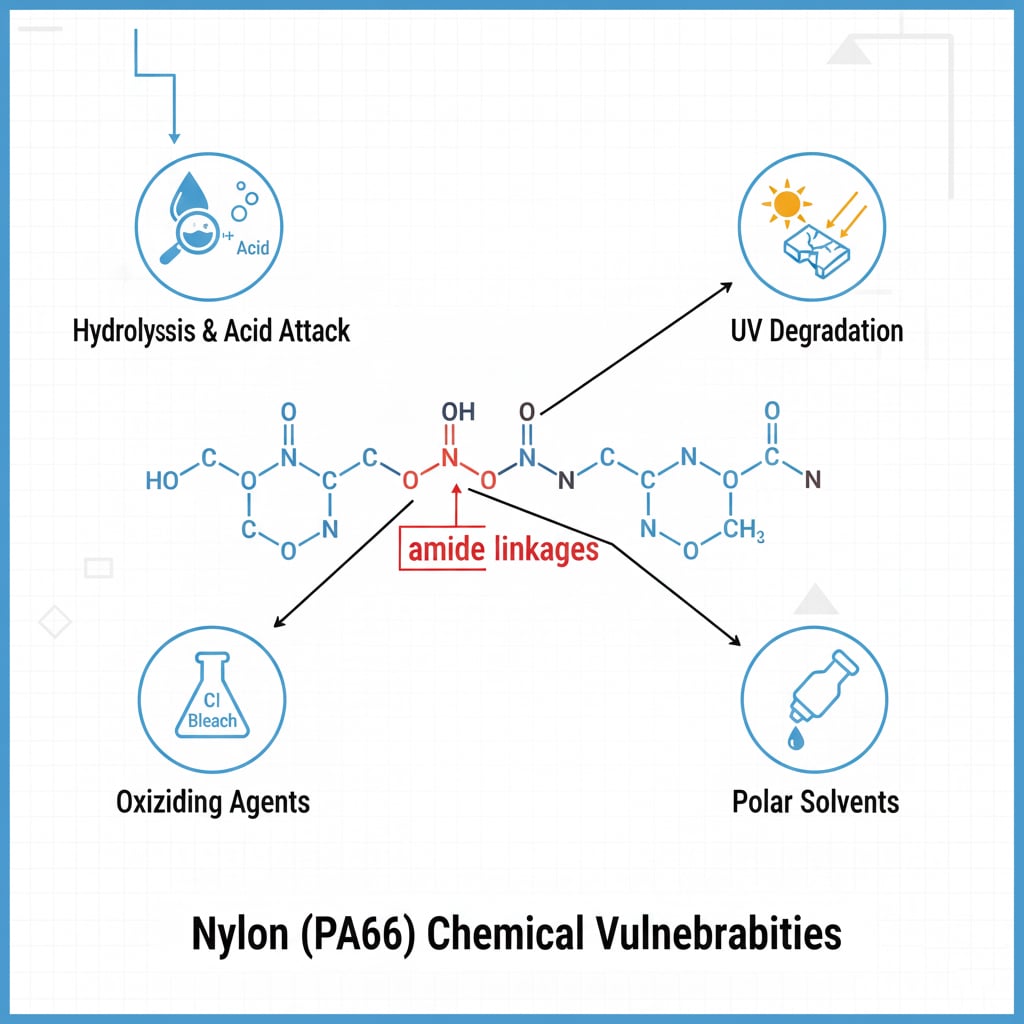

Polyamide, commonly known as nylon (PA6 or PA66), is a thermoplastic polymer with excellent mechanical properties. It’s lightweight, cost-effective, and offers good resistance to oils, greases, and weak alkalis. However, its molecular structure contains amide linkages (-CO-NH-), which are susceptible to hydrolysis¹ and chemical attack under certain conditions.

Key Vulnerabilities of Nylon:

• Hydrolysis: Prolonged exposure to water (especially hot water above 80°C) breaks down amide bonds
• Acid Sensitivity: Strong acids (pH < 3) cause rapid degradation and embrittlement
• Solvent Attack: Polar solvents like phenols, cresols, and formic acid dissolve or swell nylon
• Oxidizing Agents: Chlorine, bleach, and hydrogen peroxide degrade the polymer chain
• UV Degradation: Without UV stabilizers, nylon becomes brittle under prolonged sunlight exposure

The problem isn’t that nylon is a “bad” material—it’s that many engineers and buyers don’t realize these limitations until it’s too late. Hassan, a quality-focused client from the Middle East, once told me: “I thought all cable glands were the same until I saw nylon ones crumble in our chlorine treatment plant.”

Material Composition Standards:

According to ISO 16220 standards for cable gland materials, PA66 typically contains:

• 30% glass fiber reinforcement (for PA66-GF30 variants)
• Flame retardant additives (UL94² V-2 rating)
• Operating temperature range: -40°C to +100°C (short-term up to 120°C)

But these specs mean nothing if the chemical environment attacks the base polymer itself.

Which Chemicals Will Destroy Your Nylon Cable Glands?

This is where theory meets reality. Based on our 10+ years of field experience and laboratory testing, here’s a comprehensive breakdown of chemicals that will compromise nylon cable glands.

High-Risk Chemical Categories:

Chemical Type	Specific Examples	Degradation Effect	Time to Failure
Strong Acids	Sulfuric acid (>10%), Hydrochloric acid, Nitric acid	Hydrolysis, cracking, loss of tensile strength3	3-6 months
Phenolic Compounds	Phenol, Cresol, Xylenol	Swelling, softening, complete dissolution	1-3 months
Chlorinated Solvents	Chloroform, Carbon tetrachloride, Trichloroethylene	Surface cracking, stress corrosion4	2-4 months
Strong Oxidizers	Concentrated bleach (>5%), Hydrogen peroxide (>30%), Chlorine gas	Embrittlement, color change, surface pitting	1-2 months
Formic Acid	Formic acid (any concentration)	Rapid dissolution	Days to weeks
Calcium Chloride	Concentrated brine solutions (>30%)	Stress cracking, loss of IP rating	6-12 months

Moderate-Risk Environments (Use with Caution):

• Hot Water Systems: Above 80°C, hydrolysis accelerates significantly
• Weak Acids: pH 4-6 (acceptable for short-term exposure only)
• Alcohols: Methanol and ethanol cause slight swelling over time
• Diesel Fuel: Long-term exposure (>2 years) may cause slight softening

Real-World Failure Story:

David’s petrochemical plant used nylon glands in an area where occasional splashes of toluene and xylene occurred. Within 8 months, the glands showed visible stress cracks. When we tested samples in our lab, tensile strength had dropped by 60%. The lesson? Even “occasional” exposure to aggressive solvents is too much for nylon.

What Are the Warning Signs of Chemical Degradation?

Early detection can prevent catastrophic failures. Here’s what to look for during routine inspections:

Visual Inspection Checklist:

1. Surface Cracking: Fine hairline cracks, especially around threads and sealing areas
2. Color Change: Yellowing, darkening, or chalky white appearance
3. Brittleness: Material breaks easily when slight pressure is applied
4. Swelling: Gland body appears bloated; threads no longer fit properly
5. Loss of Seal Integrity: O-rings or gaskets show gaps; IP rating compromised

Physical Testing Methods:

• Torque Test: If installation torque drops by >30%, material has softened
• Flex Test: Bend a small sample; if it snaps rather than flexes, degradation has occurred
• IP Rating Verification: Use water spray test (IP65/IP68) to check seal integrity

H3: Inspection Frequency Recommendations

For chemical-exposed environments, we recommend:

• Monthly: Visual inspection for surface changes
• Quarterly: Torque verification and seal testing
• Annually: Complete replacement in high-risk zones (preventive maintenance)

Common Installation Mistakes That Accelerate Failure:

1. Over-tightening: Creates micro-cracks that allow chemical ingress
2. Wrong Thread Sealant: Some sealants contain solvents that attack nylon
3. Inadequate IP Rating: Using IP65 glands in washdown areas requiring IP68

When Should You Choose Brass or Stainless Steel Instead?

If your application involves any of the chemicals listed above, nylon is NOT the answer. Here’s your decision-making framework:

Material Selection Guide by Environment:

Environment Type	Recommended Material	Why Not Nylon?	Bepto Product Line
Chemical Processing Plants	Stainless Steel 316L	Resistant to acids, alkalis, and most solvents	SS316L Cable Glands (ATEX5 certified)
Marine/Offshore	Brass (Nickel-plated) or SS304	Saltwater causes stress corrosion in nylon	Marine-grade Brass Glands (IP68)
Pharmaceutical Clean Rooms	Stainless Steel 304	Requires frequent chemical cleaning/sterilization	Hygienic SS304 Glands
Oil Refineries (Hazardous Areas)	Brass or SS with ATEX/IECEx	Explosion-proof requirements + chemical resistance	Explosion-proof Brass Glands
Food & Beverage	Stainless Steel 316	FDA compliance + caustic cleaning agents	Food-grade SS316 Glands
General Industrial (Dry)	Nylon PA66	✅ Cost-effective and suitable	Nylon Cable Glands (UL94 V-2)

Cost-Benefit Analysis:

Yes, stainless steel glands cost 3-5x more than nylon. But consider this:

• Nylon Gland: $2 per unit, replacement every 6 months = $4/year + labor costs
• SS316 Gland: $8 per unit, lasts 10+ years = $0.80/year

Hassan switched his chlorine plant to our SS316 glands three years ago. Zero failures since then. His exact words: “I should have done this from day one.”

Quick Decision Tree:

Ask yourself these three questions:

1. Will the gland be exposed to acids, solvents, or oxidizers? → YES = Metal glands
2. Is the operating temperature consistently above 80°C? → YES = Brass or SS
3. Is this a hazardous area requiring ATEX/IECEx certification? → YES = Explosion-proof metal glands

If all answers are NO, nylon is perfectly fine and offers the best value.

Conclusion

The Big Takeaway: Nylon cable glands are excellent for general industrial use, but they have clear chemical limitations. Strong acids, phenolic solvents, chlorinated compounds, and oxidizing agents will destroy them—often faster than you expect. Know your environment, inspect regularly, and don’t hesitate to upgrade to brass or stainless steel when chemistry demands it. At Bepto, we help clients make these decisions every day, backed by ISO9001, IATF16949, and real-world testing data.

Need help selecting the right cable gland material for your specific chemical environment? Contact our technical team at Bepto Connector—we provide free chemical compatibility charts and application engineering support.

FAQs About Chemical Resistance of Nylon Cable Glands

1. Understand the chemical breakdown process where water molecules cleave chemical bonds, leading to material failure. ↩

2. Review the standard for safety of flammability of plastic materials for parts in devices and appliances. ↩

3. Explore the maximum stress that a material can withstand while being stretched or pulled before breaking. ↩

4. Learn about the failure mechanism caused by the combined effect of tensile stress and a corrosive environment. ↩

5. Read the European Union directives describing what equipment and work space is allowed in an environment with an explosive atmosphere. ↩
