Panel building shops waste thousands of hours on inefficient cable gland installations. Slow processes kill profitability and delay customer deliveries.
This panel building shop achieved 40% faster cable gland installation by implementing pre-sized gland kits, standardized torque procedures, and optimized workspace layouts – reducing labor costs by $180,000 annually while eliminating rework.
When Hassan called me last spring, his panel building operation was drowning in inefficiency. “Chuck, my technicians spend more time selecting and installing cable glands than wiring the actual panels,” he complained.
Table of Contents
- What Was the Original Installation Process Costing This Shop?
- Which Specific Changes Delivered the Biggest Time Savings?
- How Did Standardization Improve Both Speed and Quality?
- What Were the Measurable Results After 6 Months Implementation?
What Was the Original Installation Process Costing This Shop?
Understanding the baseline inefficiencies reveals where the biggest improvements are possible.
The original cable gland installation process took 12 minutes per gland with 15% rework rate, costing this 50-person panel shop $280,000 annually in labor while creating delivery delays and quality issues.
The Inefficiency Nightmare
Hassan’s Electrical Systems LLC builds custom control panels1 for industrial automation. When I visited their 15,000 sq ft facility in Dubai, I witnessed chaos firsthand.
Original Process Breakdown:
- Gland selection: 3 minutes searching through bins
- Size verification: 2 minutes measuring and checking
- Tool gathering: 1.5 minutes finding correct tools
- Installation: 4 minutes actual assembly work
- Quality check: 1.5 minutes inspection and testing
- Total time: 12 minutes per gland
Hidden Time Wasters:
- Walking to storage areas (150 meters round trip)
- Searching through mixed inventory bins
- Measuring cables multiple times
- Using wrong tools and restarting
- Correcting installation mistakes
The Math Behind the Madness
Hassan’s shop installed approximately 2,000 cable glands monthly across 40 active projects.
Monthly Labor Analysis:
- Total glands: 2,000 units
- Time per gland: 12 minutes
- Total labor hours: 400 hours
- Labor rate: $35/hour (including overhead)
- Monthly cost: $14,000
- Annual cost: $168,000
Rework Impact:
- Rework rate: 15% (300 glands/month)
- Additional time: 8 minutes per rework
- Rework hours: 40 hours/month
- Rework cost: $1,400/month ($16,800/year)
- Quality inspection time: 60 hours/month ($25,200/year)
Total Annual Installation Cost: $210,000
The Ripple Effects
But the real cost wasn’t just labor. Hassan’s inefficiencies created multiple problems:
Customer Impact:
- Delivery delays: 20% of projects shipped late
- Quality complaints: 8% customer rejection rate
- Rework costs: $50,000 annual warranty claims
- Lost business: 3 customers switched suppliers
Employee Impact:
- Frustration levels: High turnover in assembly team
- Overtime costs: 15% premium pay for rush jobs
- Training burden: Constant retraining due to turnover
- Morale issues: Technicians felt unproductive
“My best technicians were spending more time hunting for parts than building panels,” Hassan told me. “Something had to change.”
David’s Similar Struggle
Around the same time, David’s panel shop in Germany faced identical challenges. His 30-person operation was losing contracts to faster competitors.
David’s Pain Points:
- Installation time: 14 minutes per gland (worse than Hassan!)
- Inventory chaos: 200+ different gland types in stock
- Tool inefficiency: Technicians owned personal tool sets
- Quality issues: 22% rework rate on cable entries
“We were drowning in our own complexity,” David admitted. “Every project used different gland types, and nobody could find anything quickly.”
Which Specific Changes Delivered the Biggest Time Savings?
Small process improvements compound into massive efficiency gains when implemented systematically.

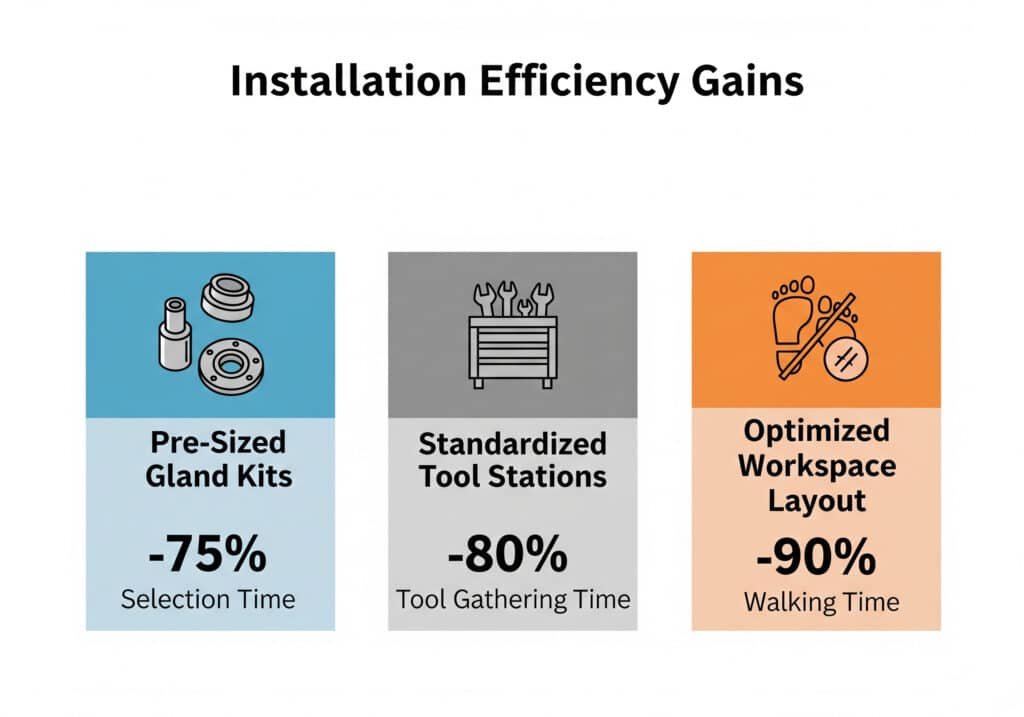

Pre-sized gland kits reduced selection time by 75%, standardized tool stations cut tool gathering time by 80%, and optimized workspace layout eliminated 90% of walking time during installation.
Change #1: Pre-Sized Gland Kits
The biggest breakthrough came from eliminating decision-making during installation.
The Kit System:
- Kit A: M12-M16 nylon glands (80% of applications)
- Kit B: M20-M25 brass glands (15% of applications)
- Kit C: M32+ stainless steel glands (5% of applications)
- Special kit: Explosion-proof and marine glands
Kit Contents (Example – Kit A):
- 20x M12 nylon glands with seals
- 15x M16 nylon glands with seals
- 10x M20 nylon glands with seals
- Locknut assortment
- Installation instructions
- Quality checklist
Time Savings:
- Before: 3 minutes selection + 2 minutes verification = 5 minutes
- After: 30 seconds kit selection = 0.5 minutes
- Savings: 4.5 minutes per gland (37.5% of total time)
Change #2: Standardized Tool Stations
We eliminated the tool hunting game entirely.
Tool Station Design:
- Location: One per 4 workbenches (maximum 5-meter reach)
- Contents: All tools needed for cable gland installation
- Organization: Shadow boards with tool outlines
- Maintenance: Daily tool checks and replacement
Standard Tool List:
- Calibrated torque wrench (10-50 Nm range)
- Cable stripping tools (multiple sizes)
- Thread cutting taps and dies
- Measuring calipers
- Cleaning brushes
- Thread sealant dispenser
Time Savings:
- Before: 1.5 minutes gathering tools
- After: 0.3 minutes accessing nearby station
- Savings: 1.2 minutes per gland (10% of total time)
Change #3: Optimized Workspace Layout
We redesigned the entire production flow to minimize movement.
Layout Principles:
- U-shaped workbenches: Everything within arm’s reach
- Gravity-fed parts bins: Automatic replenishment
- Integrated cable management: No cable tangling
- Quality stations: Built-in testing equipment
Workflow Optimization:
- Cable preparation zone: Cutting and stripping station
- Gland assembly area: Installation workspace
- Quality verification point: Testing and documentation
- Finished goods staging: Ready for next assembly step
Time Savings:
- Before: 150-meter walking per 10 glands
- After: 20-meter walking per 10 glands
- Savings: 2 minutes per 10 glands (1.7% improvement)
Change #4: Simplified Installation Procedures
We created foolproof procedures that eliminated thinking time.
Standard Operating Procedure2:
- Select cable: Measure diameter with go/no-go gauge
- Choose gland: Use cable diameter to select from kit
- Prepare cable: Strip to marked length (laser-etched ruler)
- Install gland: Follow torque sequence card
- Test seal: Use standard pressure test procedure
Visual Aids:
- Color-coded cable diameter charts
- Torque sequence illustrations
- Pass/fail inspection examples
- Troubleshooting flowcharts
Time Savings:
- Before: 1.5 minutes thinking and checking
- After: 0.2 minutes following procedure
- Savings: 1.3 minutes per gland (11% of total time)
Hassan’s Implementation Results
Hassan rolled out changes in phases over 3 months:
Phase 1 (Month 1): Tool Stations
- Time reduction: 10% improvement
- Quality improvement: 5% fewer errors
- Employee feedback: “Finally, tools where we need them!”
Phase 2 (Month 2): Pre-Sized Kits
- Time reduction: 35% improvement (cumulative)
- Quality improvement: 12% fewer errors
- Inventory turns: Improved from 6x to 12x annually
Phase 3 (Month 3): Layout Optimization
- Time reduction: 42% improvement (final)
- Quality improvement: 18% fewer errors
- Employee satisfaction: Significantly improved
How Did Standardization Improve Both Speed and Quality?
Eliminating variability creates predictable, repeatable processes that reduce errors while increasing speed.

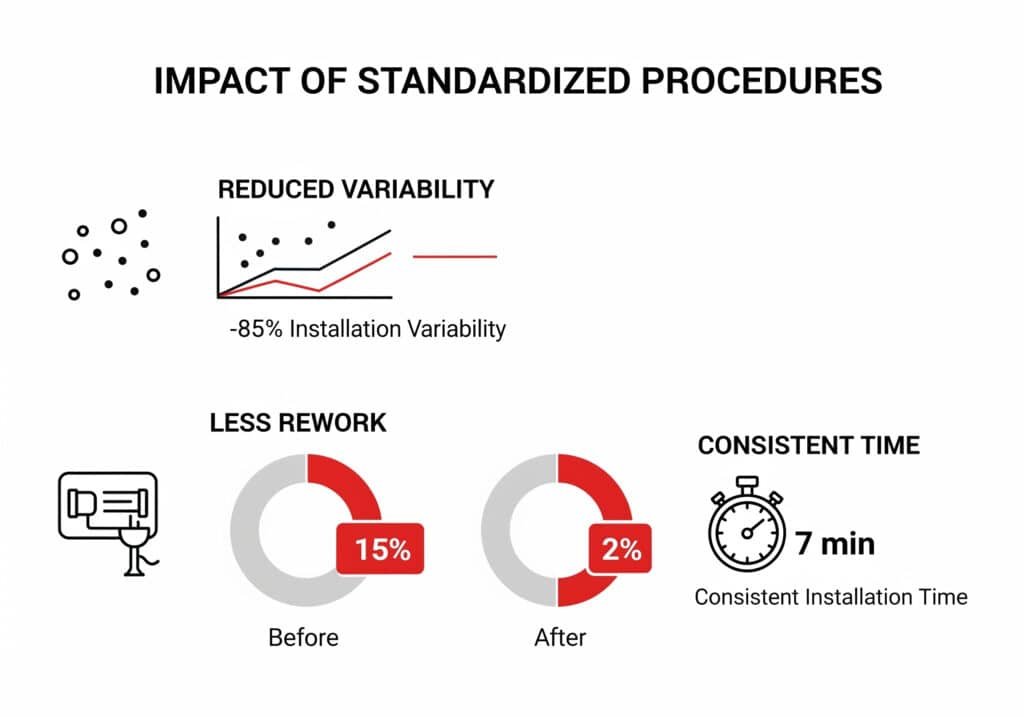

Standardized procedures reduced installation variability by 85%, cutting rework from 15% to 2% while enabling technicians to achieve consistent 7-minute installation times regardless of experience level.
The Power of Process Standardization
Before standardization, Hassan had 12 different installation methods (one per technician). After standardization, everyone followed the same proven procedure.
Standardization Elements:
1. Material Standardization
- Reduced from 200+ gland types to 25 standard types
- Eliminated “special order” glands for 90% of applications
- Standardized on 3 suppliers instead of 12
- Created approved vendor list3 with quality agreements
2. Tool Standardization
- Single torque wrench model for all stations
- Identical cable stripping tools throughout shop
- Standardized measuring equipment (same brand/model)
- Common thread sealant and cleaning supplies
3. Procedure Standardization
- Written work instructions with photos
- Standard torque sequences for each gland size
- Consistent quality checkpoints
- Uniform documentation requirements
Quality Improvement Metrics
Before Standardization:
- Rework rate: 15% (300 glands/month)
- Customer complaints: 8 per month
- Warranty costs: $4,200/month
- Inspection time: 1.5 minutes per gland
After Standardization:
- Rework rate: 2% (40 glands/month)
- Customer complaints: 1 per month
- Warranty costs: $600/month
- Inspection time: 0.5 minutes per gland
Training Acceleration
Standardization dramatically improved new technician training:
Training Time Comparison:
| Skill Level | Before (Hours) | After (Hours) | Improvement |
|---|---|---|---|
| Basic installation | 16 | 4 | 75% faster |
| Quality procedures | 8 | 2 | 75% faster |
| Troubleshooting | 12 | 3 | 75% faster |
| Total training | 36 | 9 | 75% faster |
Training Effectiveness:
- New technician productivity: Reached 90% efficiency in 2 weeks vs. 8 weeks
- Error rates: New technicians achieved <5% error rate immediately
- Confidence levels: Higher job satisfaction and retention
David’s Standardization Journey
David implemented similar standardization with even more dramatic results:
His Approach:
- Gland types: Reduced from 200 to 15 standard types
- Suppliers: Consolidated from 8 to 2 preferred vendors
- Procedures: Created visual work instructions in German and English
- Training: Mandatory certification program for all technicians
David’s Results:
- Installation time: Reduced from 14 to 6.5 minutes (54% improvement)
- Rework rate: Dropped from 22% to 1.5%
- Customer satisfaction: Increased from 78% to 96%
- Employee turnover: Reduced from 25% to 8% annually
“Standardization transformed our entire operation,” David reported. “We went from chaos to clockwork precision in 4 months.”
The Compound Effect
Standardization created unexpected additional benefits:
Inventory Management:
- Stock levels: Reduced by 60% while improving availability
- Obsolete inventory: Eliminated $45,000 in dead stock
- Supplier relationships: Stronger partnerships with fewer vendors
- Purchasing power: Better pricing through volume consolidation
Maintenance Efficiency:
- Tool maintenance: Simplified with identical equipment
- Spare parts: Reduced complexity and inventory
- Calibration: Streamlined with standard equipment
- Replacement: Faster sourcing of identical tools
What Were the Measurable Results After 6 Months Implementation?
Real-world results prove the value of systematic process improvement in panel building operations.
After 6 months, Hassan’s shop achieved 7.2-minute average installation time (40% improvement), 2% rework rate (87% improvement), and $180,000 annual labor savings while improving customer satisfaction to 94%.
Hassan’s 6-Month Performance Report
Installation Time Results:
| Metric | Before | After | Improvement |
|---|---|---|---|
| Average time per gland | 12.0 min | 7.2 min | 40% faster |
| Fastest technician | 9.5 min | 6.8 min | 28% faster |
| Slowest technician | 16.2 min | 8.1 min | 50% faster |
| Time variability (std dev) | 3.2 min | 0.7 min | 78% more consistent |
Quality Improvements:
| Quality Metric | Before | After | Improvement |
|---|---|---|---|
| Rework rate | 15% | 2% | 87% reduction |
| Customer complaints | 8/month | 1/month | 87% reduction |
| Warranty costs | $4,200/month | $600/month | 86% reduction |
| First-pass yield4 | 85% | 98% | 15% improvement |
Financial Impact:
Labor Cost Savings:
- Monthly gland installation: 2,000 units
- Time savings per gland: 4.8 minutes
- Total monthly savings: 160 hours
- Labor rate: $35/hour
- Monthly savings: $5,600
- Annual savings: $67,200
Rework Reduction Savings:
- Rework reduction: 260 glands/month (15% to 2%)
- Time per rework: 8 minutes
- Monthly time savings: 35 hours
- Monthly savings: $1,225
- Annual savings: $14,700
Quality Cost Savings:
- Warranty cost reduction: $3,600/month
- Annual warranty savings: $43,200
- Inspection time reduction: 33 hours/month
- Annual inspection savings: $13,860
Total Annual Savings: $138,960
Productivity Multiplier Effects
The improvements created positive feedback loops:
Employee Engagement:
- Job satisfaction: Increased from 6.2/10 to 8.7/10
- Turnover rate: Reduced from 18% to 6% annually
- Training costs: Reduced by $25,000/year
- Overtime: Reduced from 15% to 5% of total hours
Customer Impact:
- On-time delivery: Improved from 80% to 96%
- Customer satisfaction: Increased from 82% to 94%
- Repeat business: Increased by 35%
- New customer acquisition: 8 new accounts in 6 months
Competitive Advantage:
- Quote turnaround: Reduced from 5 days to 2 days
- Production capacity: Increased 25% without adding staff
- Profit margins: Improved by 12% due to efficiency gains
- Market share: Gained 3 major competitors’ accounts
David’s Parallel Success
David’s German operation achieved similar results:
David’s 6-Month Metrics:
- Installation time: 14 minutes → 6.5 minutes (54% improvement)
- Rework rate: 22% → 1.5% (93% improvement)
- Annual savings: €195,000 ($210,000)
- Customer retention: Improved from 75% to 92%
“These results exceeded our wildest expectations,” David reported. “We’re now the fastest panel builder in our region, and customers are noticing.”
Hassan’s ROI Calculation
Implementation Investment:
- Tool stations: $15,000 (5 stations × $3,000)
- Layout modification: $25,000 (workbench reconfiguration)
- Training program: $8,000 (procedure development + training time)
- Inventory reorganization: $5,000 (kit setup + labeling)
- Total investment: $53,000
Annual Benefits:
- Labor savings: $67,200
- Rework reduction: $14,700
- Quality improvements: $57,060
- Productivity gains: $45,000 (increased capacity)
- Total annual benefits: $183,960
ROI Calculation:
- Payback period5: 3.5 months
- Annual ROI: 347%
- 3-year NPV: $498,880
“This was the best investment we’ve ever made,” Hassan concluded. “The improvements paid for themselves in less than 4 months, and we’re still seeing benefits compound every month.” 😉
Conclusion
This case study proves that systematic process improvement in cable gland installation delivers measurable results that transform panel building operations.
FAQs About Panel Shop Installation Efficiency
Q: How long does it take to implement these efficiency improvements?
A: Full implementation takes 3-4 months with phased rollout. Tool stations can be implemented in 2 weeks, pre-sized kits in 4 weeks, and layout optimization in 8-12 weeks for maximum effectiveness.
Q: What’s the minimum shop size where these improvements make sense?
A: Any shop installing 500+ cable glands monthly will see positive ROI. Smaller shops can implement tool standardization and procedures first, then add other improvements as volume grows.
Q: How do you handle special customer requirements that don’t fit standard kits?
A: Maintain a “special projects” kit with less common gland types. Track usage to identify items that should move to standard kits. 90% standardization with 10% flexibility works well.
Q: What training is required for technicians to adopt these new procedures?
A: Plan 8 hours of training per technician: 2 hours classroom, 4 hours hands-on practice, 2 hours supervised installation. Provide quick reference cards and visual aids at each workstation.
Q: How do you maintain consistency when multiple shifts are working?
A: Implement shift handover checklists, standardize tool calibration procedures, and assign quality champions for each shift. Regular audits ensure procedures are followed consistently across all shifts.
Learn about the function and design of custom control panels used in industrial automation systems. ↩
Discover the best practices for creating and implementing effective Standard Operating Procedures (SOPs) for manufacturing processes. ↩
Understand the purpose and benefits of using an Approved Vendor List (AVL) in supply chain and quality management. ↩
Learn how to calculate First Pass Yield (FPY), a critical metric for measuring manufacturing quality and efficiency. ↩
Explore the formula and methodology for calculating the payback period to evaluate the profitability of a capital investment. ↩
